Automatic Concrete Block Machine

Automatic concrete block machines are machines used in the production of concrete blocks, which are used in the construction industry. These machines automate the process of producing concrete blocks by using a combination of pneumatic and hydraulic systems to compress and mold concrete into a desired shape. They come in various sizes and configurations, with some models capable of producing as many as 40,000 blocks per day. These machines are used to produce different types of concrete blocks, including hollow blocks, solid blocks, paving blocks, and curbstones, among others. They are essential equipment in the construction industry, making construction processes faster, more efficient, and more cost-effective.

Automatic Concrete Block Machine

Automatic concrete block machines are machines used in the production of concrete blocks, which are used in the construction industry. These machines automate the process of producing concrete blocks by using a combination of pneumatic and hydraulic systems to compress and mold concrete into a desired shape. They come in various sizes and configurations, with some models capable of producing as many as 40,000 blocks per day. These machines are used to produce different types of concrete blocks, including hollow blocks, solid blocks, paving blocks, and curbstones, among others. They are essential equipment in the construction industry, making construction processes faster, more efficient, and more cost-effective.


The Automatic Concrete Block Machine produced by our factory adopts hydraulic configuration, digital intelligent control, micro-operation, high degree of automation, convenient operation, stable mechanical performance, power saving, labor saving, high pressure and high output.

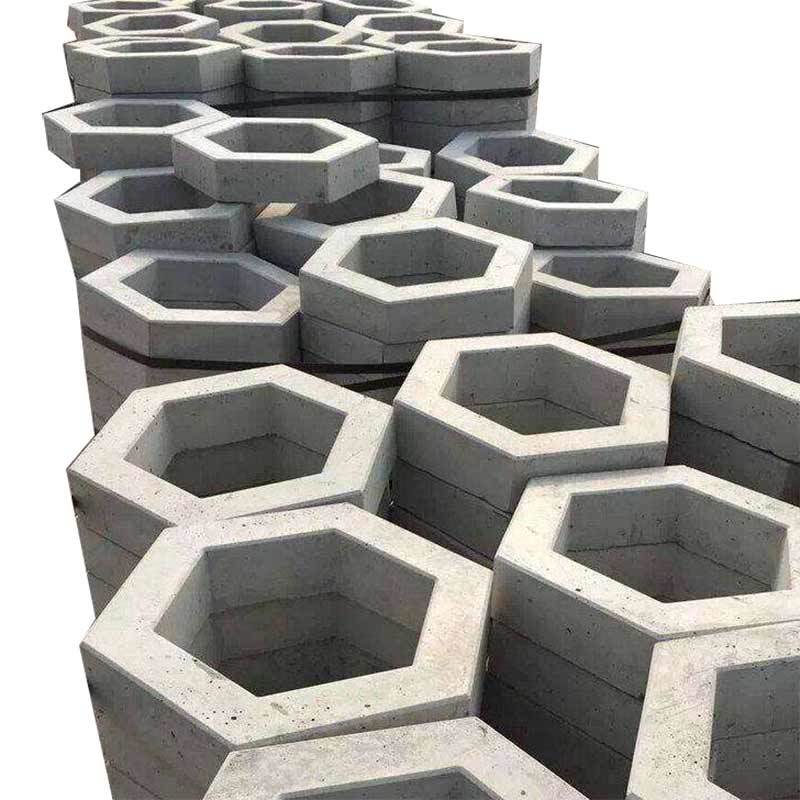

Uses: Production of various external wall blocks, interior wall blocks, flower wall blocks, floor slabs, berm blocks, interlocking blocks, curbs and other blocks. Adding face mix section to produce colored pavers.

Main raw materials: river sand (without soil), rice stone, stone powder, slag, construction waste (can be selected according to local resources), fly ash, cement, river sand, sea sand, mountain sand, mineral powder, slag, stone powder , coal slag, coal gangue, tailings slag, chemical slag, etc.


Automatic Concrete Block Machine Technical Specification:

Dimension

3000 ×1900 ×2930mm

Weight

6.5T

Pallet size

1100 ×630mm

Power

42.15 kW

Vibration method

Siemens motors

Vibration Frequency

3800-4500 r/min

Cycle time

15-20s

Vibration Force

50-70KN

Automatic Concrete Block Machine

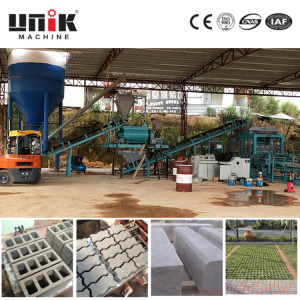

Equipments for basic concrete block making plant:

Items

Name of goods

Quantity

Note

1

Batching machine

1 set

OLI-WOLONG Vibrator

2

Concrete mixer

1 set


3

Belt conveyor

1 set


4

Material feeder

1 set


5

Block machine

1 set

One mould for free

6

Block/pallets conveyor

1 set


7

Automatic stacker

1 set


8

Hydraulic system

1 set


9

Electric cabinet

1 set


10

Pallets

1000 pcs


Various specifications and models can be customized according to customer requirements


Automatic Concrete Block Machine Main features:


1. The electrical system adopts German Siemens touch screen and programmable controller (PLC). The control system includes safety logic control and fault diagnosis system.

2. The hydraulic components adopt high dynamic proportional valves, which can adjust the oil quantity and pressure according to different production requirements.

3. The machine body is made of high-strength castings and special materials. It has good rigidity, vibration resistance and long service life.

4. The four-bar guiding method ensures the precise operation of the indenter and the mold.

5. Using the tabletop vibration pressure molding. The feeding device rotates the forced fabric 360 degrees, and the molding cycle is short and the production efficiency is high.


Products

Pic

Size

Capacity

Cycle time

Daily capacity

Hollow block

Automatic Concrete Block Machine

390 ×190 ×190mm

5pcs/pallet

15-20s

7200pcs

Hollow brick

Automatic Concrete Block Machine

240 ×115 ×90mm

16pcs/pallet

15-20s

23040pcs

Brick

Automatic Concrete Block Machine

240 ×115 ×53mm

34pcs/pallet

15-20s

48960pcs

Paver

Automatic Concrete Block Machine

200 ×100 ×60mm

20pcs/pallet

15-20s


28800 pcs


Service,delivery and shipping:

Automatic Concrete Block Machine

Automatic Concrete Block Machine Sale service

The company's in-sale services include on-time delivery, on-site installation and commissioning personnel training to achieve smooth production of equipment, including:

1. Help with site planning, technical problems and auxiliary configuration consultation;

2. Help to formulate equipment purchase plans suitable for customers, and give suggestions for layout design according to the site;

3. Help with income analysis;

4. After the technical agreement / purchase contract is signed, the company will submit a list of standards for the design, manufacture, assembly and installation of the contract equipment to the customer for confirmation;

5. Appoint senior engineers to install and debug at home;

6. Conduct on-site training and operation technology for customer staff, and train electromechanical maintenance personnel for company users free of charge;

7. Recommend relevant standardized and personalized product molds or accessories for customers according to specific conditions.


Automatic Concrete Block Machine After sales service

Provide after-sales service to customers in all directions, including:

1. Guarantee the timely supply of spare parts, strictly implement the three-package, one-year free warranty and lifetime after-sales service;

2. 24-hour service commitment: In order to provide better quality service and technical support to our customers, the company's 400 service hotline is available 24 hours a day, serving customers;

3.one machine and one file management: the company establishes a management file of equipment for each machine, details and overall, service is always;

4. Recurring customer return visit: The company has established a customer return visit system, listened carefully to each customer's suggestions and opinions, and returned to understand the operation of each equipment.

The block making machine is packed in PVC film to Waterproof and dustproof, the spare parts will be packed in wooden case,This way of packing can ensure the machines will not shift inside the case and guarantee its security in transportation.


We will deliver automatic block machine within 20-25 days after receiving deposit
