Paving Brick Making Machine

Paving Brick Making Machine

Paving brick making machines are machines that are used to produce paving bricks, which are also commonly referred to as cobblestones. These machines use a combination of raw materials, such as cement, sand, and water, to create a mixture that is then molded into bricks using a hydraulic press. The resulting bricks are strong, durable, and able to withstand heavy traffic and weather conditions.

There are various types of paving brick making machines available on the market, ranging from manual machines that require human labor to fully automated machines that can produce thousands of bricks per hour. Some of the most popular types of paving brick making machines include hydraulic brick making machines, automatic brick making machines, and semi-automatic brick making machines.

Paving bricks are a popular choice for outdoor areas, such as driveways, patios, and walkways, as they are aesthetically pleasing and provide excellent traction. Additionally, paving bricks are more durable than other traditional pavement materials, such as asphalt or concrete, making them a cost-effective long-term solution.

 Paving Brick Making Machine Products Description

A Paving Brick Making Machine is a type of machine used for making bricks commonly used in the construction of pavements, driveways, walkways, and other outdoor surfaces. The machine is designed with a mold, which contains the desired shape and size of the brick. The machine is operated by placing the raw materials, such as cement, sand, and water, into a hopper, where they are mixed together in the appropriate proportions. The mixture is then fed into the mold, where it is pressed and compacted to form a brick.The machine's design may vary depending on the type of machine and the manufacturer, but it generally includes a hydraulic system, conveyor, and control panel. The hydraulic system is responsible for the compression of the mixture in the mold, and the conveyor moves the molded bricks to a drying area. The control panel allows the operator to adjust the machine's settings, such as the pressure and speed of the hydraulic system.

Paving Brick Making Machine Material hopper

A cleaning door at the back of the hopper is installed to provide an access for cleaning works. Two sensors are installed inside the hopper to detect the level of the wet concrete materials and give signal to the mixer for blending materials or delivery blended materials to the hopper. An electric motor with 2 set gears to control the opening flap provides precise dosage and quick discharge.

Vibration table

The vibration table is equipped with 4 synchronized electrical vibrators(1) bolted underside the vibration table. Vibration table is supported by several high quality dampers to maintain a consistent vibration across the table.Our table is specially engineered built with hollow core but welding construction made the overall weight is less, because if the force is distributed on more weight, it will reduce the vibration force transmitted to the product.

Paving Brick Making Machine Products parameters

Dimension	3000×1900×3160mm
Pallet Size	1100×740×28-35mm
Vibration Frequency	3800-4500 r/min
Hydraulic Pressure	25 mpa
Vibration Force	68 KN
Cycle time	15-20s
Power	48.53kW
Weight	8200kg

A Paving Brick Making Machine plays a crucial role in the construction industry by providing a convenient and cost-effective way of producing bricks for pavement and outdoor surfaces. The machine is easy to operate, durable, and efficient, making it an ideal option for both small and large scale brick-making projects.

Product	Product size	pcs/pallet	pcs/hour	Image
Hollow block	400x200x200mm	8 PCS	1920PCS
Hollow block	400x150x200mm	12 PCS	2160 PCS
Rectangular paver	200x100x60/80mm	36PCS	8640 PCS

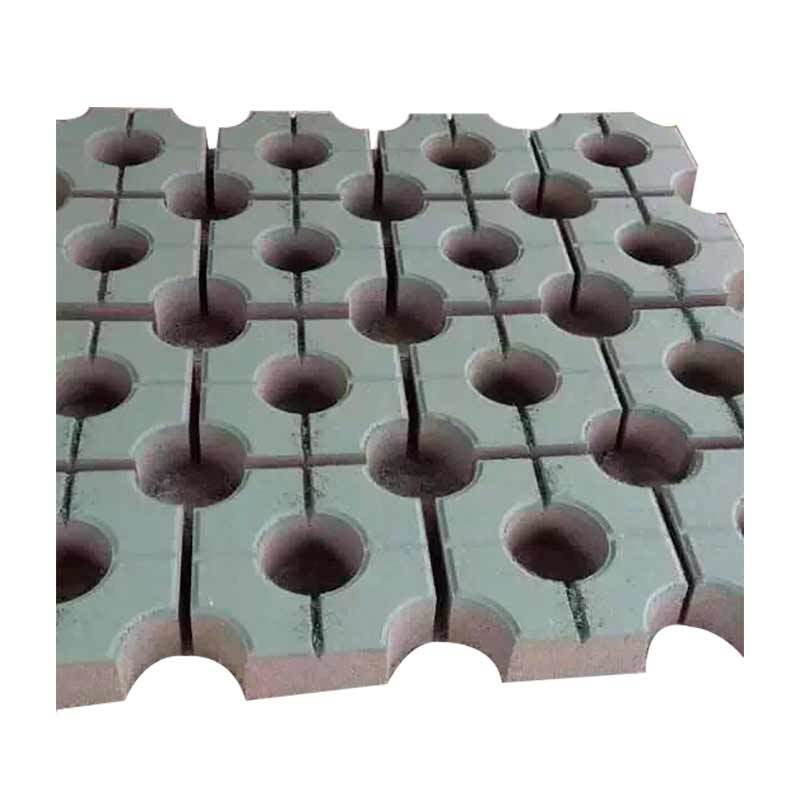

Interlocking paver	225x112x60/80mm	25PCS	6000PCS
Kerbstone	200x300x600mm	4PCS	960PCS

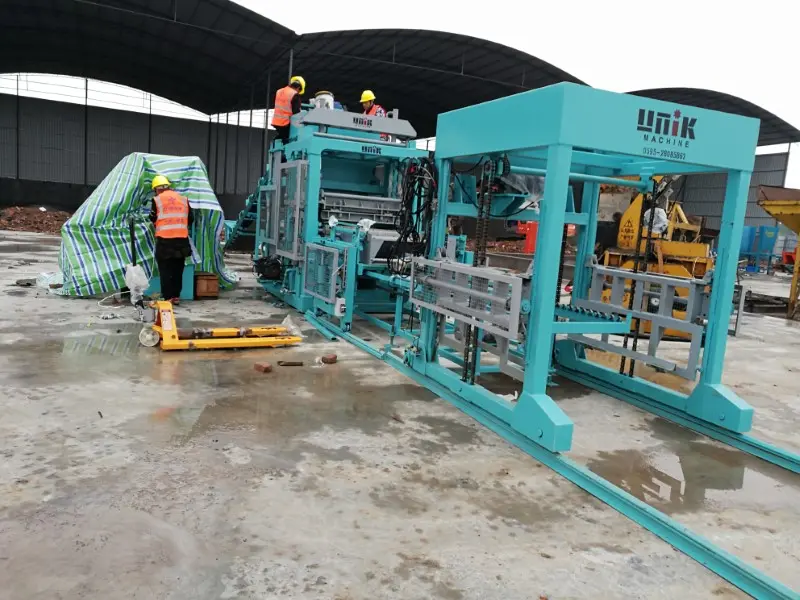

Product Picture

Our factory

Manufacturing

Delivery

workshop

Process

It is our aim to protect the central service of pre-sale, sale and after-sales. It has increasingly become the basic requirement of our customers. We have established a strong marketing network integrating sales, service and integration, the company's new products and All kinds of services can reach the market and users in a timely and comprehensive manner, forming a complete product development mechanism and network operation mechanism.

In the sales of products, the interests of customers are our first consideration. Our services are pursuing refinement. From pre-sales consultation, enthusiastic service to sales promotion products, we all require fine and careful. Strong design and development, production and manufacturing, installation and commissioning, technical maintenance, occasional return visits, strict quality assurance and fast after-sales service, each link has been carefully arranged to solve a series of customer worries.

Where the use of our products, the warranty period of one year, our factory can send technicians to the user free installation and commissioning, transfer technology, life-long accessories, to ensure customer satisfaction!

Before the customer purchases, the company will send engineers and technicians to the user site to plan the site and design the best process plan for the user. After the purchase, the company will assign free after-sales service personnel to the site to guide the customer to install and debug, and assist the customer in planning and management. Equipment, until the user is satisfied.

Before sale:
(1) Selection of equipment model.
(2) Design and manufacture products according to the special requirements of customers.
(3) Train technicians for customers.
(4) The company sends engineering and technical personnel to the user site to plan the site and design the best process and plan for the user.

Sale:
(1) Acceptance of products.
(2) Assist customers in formulating construction plans.

After sale:
(1) Freely assign special after-sales service personnel to arrive at the scene to guide customers to install and debug.
(2) Equipment installation and commissioning.
(3) On-site training operators.
(4) After the installation of the complete set of equipment, 1-2 full-time technicians will be provided to assist the customer on-site production free of charge until the user is satisfied.
