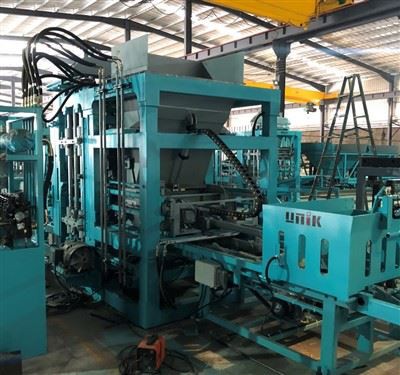

Hydraulic Concrete Brick Making Machine

The hydraulic concrete brick making machine is designed, developed and manufactured by UNIK on the basis of fully absorbing foreign advanced technology and technology, combined with the application conditions of Chinese users. All key electronic control components, motor reducers and hydraulic and pneumatic components are all adopted. The products of well-known foreign brands ensure the high reliability of equipment operation. The equipment is more humanized in terms of appearance design, structural design, and convenient operation, and is more suitable for the use requirements of Chinese users. The performance of the equipment has reached the level of similar foreign products, and it is a general-purpose equipment for processing concrete products with excellent performance.

Uniquely designed vibration system

Ensure the accuracy of feeding, reduce the uneven density of materials under the action of internal pressure and other external factors, affect the feeding amount, ensure that the material is ready to use, the feeding amount is accurate, and the density of the product is consistent good. In addition, the vibration system of the main engine is in a "soft landing" state, which makes it in a good vibration isolation and excitation function, and can effectively reduce the working noise, avoid the vibration force from being transmitted to the frame, and prolong the service life of the main engine. The units of the host board, cloth, vibration, and demoulding all adopt modular structures, which are connected to each other and adjustable independently;

Intelligent control system

The control core of the system is composed of a programmable controller machine expansion module. The operator can modify the molding parameters by clicking on the touch screen l, and at the same time consult relevant information such as operating instructions and fault descriptions. Imported non-contact proximity switches are used for the collection of equipment signals. Enterprise products, so that the vibration response speed is fast, and the performance is stable and reliable. There is a status flow indicator on the console, which is convenient for observing the current running status of the equipment, and it has manual and automatic functions.

Dimension	3000×1900×3160mm
Pallet Size	1100×740×28-35mm
Vibration Frequency	3800-4500 r/min
Hydraulic Pressure	25 mpa
Vibration Force	68 KN
Cycle time	15-20s
Power	48.53kW
Weight	8200kg



Product	Product size	pcs/pallet	pcs/hour	Image
Hollow block	400x200x200mm	8 PCS	1920PCS
Hollow block	400x150x200mm	12 PCS	2160 PCS
Rectangular paver	200x100x60/80mm	36PCS	8640 PCS
Interlocking paver	225x112x60/80mm	25PCS	6000PCS
Kerbstone	200x300x600mm	4PCS	960PCS

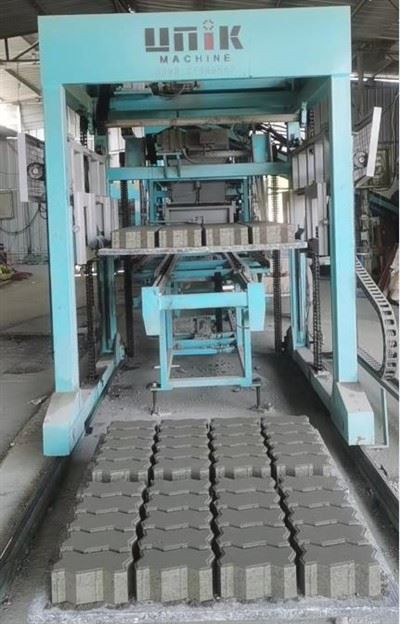

The Hydraulic Concrete Brick Making Machine forms 8 standard blocks per plate, with a specification of 390*190*190mm, 25 interlocking pavers with a specification of 225*112.5*60/80mm, and 36 floor tiles with a specification of 200*100 *80mm, the new automatic cement brick machine uses stone powder, sand, stones, slag, slag, fly ash, cement, etc. The brick machine equipment of blocks, colored bricks and tiles has more advantages compared with traditional equipment.
