Automatic Strapping Machine For Concrete Blocks

Automatic Strapping Machine For Concrete Blocks

The automatic strapping machine for concrete blocks is a specialized machine designed to strap concrete blocks automatically. It uses a strapping band made of sturdy materials such as nylon or polypropylene to tightly secure the blocks for transportation or storage.

The machine is usually equipped with multiple strapping heads that move along the conveyor belt. It can accommodate a variety of block sizes and shapes and automatically positions and secures the strapping accordingly.

The strapping machine is typically controlled by a programmable logic controller (PLC), which enables the operator to set various parameters, such as the number of straps per block, the tension applied to the strap, and the speed of the conveyor. The PLC also monitors the machine's performance and can diagnose any issues, allowing for quick and efficient maintenance.

Using an automated strapping machine for concrete blocks can increase productivity, reduce the risk of workplace injuries, and ensure a consistent level of quality in the strapping process.

The automatic strapping machine is mainly composed of belt feeding, belt withdrawal, joint connection and cutting device, transmission system, rail frame and control device.On the basis of standardized products, we can provide customers with personalized services from scheme design, manufacturing, installation and implementation, technical training to after-sales service according to the actual requirement of customers.

An automatic strapping machine for concrete blocks is a mechanical device used to apply strapping or banding to stacked concrete blocks in a production line. The strapping helps to secure the blocks in place and prevent them from shifting or falling during transport or storage. Automatic strapping machines are typically integrated into the production line, and are designed to work with different sizes and types of concrete blocks.

The automatic strapping machine typically consists of a conveyor system that transports the stacked blocks to a strapping station, where the straps are applied. The machine may include sensors or other technology to detect and adjust for variations in block size and positioning, in order to ensure consistent and accurate strapping. The strapping material may be made of a variety of materials, such as plastic or steel, and may be applied in different ways depending on the specific requirements of the application.

The advantages of using an automatic strapping machine for concrete blocks include increased production efficiency, improved safety, and reduced labor costs. The machine is capable of strapping large quantities of blocks quickly and accurately, reducing the need for manual strapping and improving overall production speed. Automatic strapping machines also help to improve safety by reducing the risk of worker injury from manual strapping tasks. The machine requires minimal operator intervention, which reduces labor costs and increases overall production efficiency.

Technical date for strapping:

1、Suitable Strapping qualities：PET-PP

2、Strapping thickness  :0.60-1.0mm

3、Strap feed and take-up speed：2.9 m/sec

4、Type of sealing：: friction  welding

5、strap tension：0-500KG  adjustable

6、Sealing time: approx. 1.5 sec. until 2 sec.

(Depending on strap and tension)

7、package size：min W120*H180mm  max:W3000*H3000mm

8、Power supply： 3/ N, PE, 380V

9、consumption：0.55KW

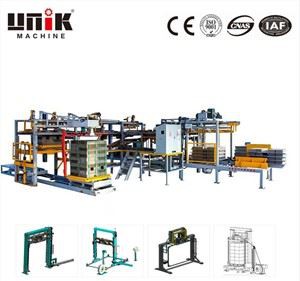

Automatic strapping machine for vertical strapping of PET strapping trays, the interface is on the top of the goods, and the strapping is completed at a fixed height position. The device consists of a rigid welded construction frame that supports all strapping machine components:

· The head of the strapping machine is located at the top of the moving direction of the goods. When the goods reach the designated position, a series of strapping machine processes of packing belt feeding, taking up, tightening, making buckles and cutting belts are automatically performed. The modular head can be quickly replaced and offline maintenance is also possible, minimizing production line downtime.

· The closed strapping slot set around the cargo is made of special material and has several independent special release devices, so that the PET strapping wraps around the cargo smoothly and perfectly.

· Floating device of the nose, compensating movement as the nose closes to the cargo and tightens it, which ensures that the straps are evenly stressed on all sides of the cargo.

· The strapping head moves the support frame and lowers it until the position is controlled by the sensor when it is about to meet the goods.

· The arrow piercing device that can be equipped is suitable for automatic strapping through the gap of the pallet.

· The reel car provides a continuous supply of packing tapes and temporarily stores the packing tapes through multiple sets of pulleys during the take-up. This device and equipment are basically independent, and the supply and temporary storage of the packing tapes are controlled by mechanical brakes.

· Operation control box can make the equipment work in fully automatic and manual mode.

Our company's advanced strapping technology is integrated into the simple operation and maintenance system of the brick industry, which improves the operational reliability of the whole line and greatly reduces the downtime for the brick factory and creates higher value for the brick factory.

Our company faces industry customers, provides safe, reliable, high-quality, and easily expandable industry solutions to help customers realize intelligent automated production management and enhance customer brand value. According to the construction needs of customers, for various technical transformation projects and new production line integration projects in the industrial field, we provide a complete set of turnkey projects such as industry research, process analysis and design, mechanical processing and assembly, digital simulation, and production line integration.
