Block Clamp Forklift

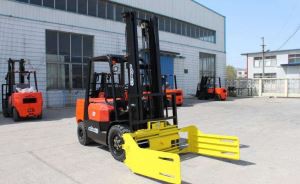

The Block Clamp Forklift is a forklift specifically designed to handle concrete bricks or blocks. It is equipped with a chuck device that can clamp bricks or squares and carry them to a designated location, making it ideal for use in places such as construction sites, freight yards, and garbage stations.

Block Clamp Forklift


The Block Clamp Forklift is a forklift specifically designed to handle concrete bricks or blocks. It is equipped with a chuck device that can clamp bricks or squares and carry them to a designated location, making it ideal for use in places such as construction sites, freight yards, and garbage stations. The main features of Block Clamp Forklift are:


Efficient: The block clamping forklift can quickly move bricks or blocks, improving the handling efficiency.


Safety: The chuck equipment is sturdy and reliable, ensuring that bricks or squares do not slip off.


Space-saving: By clamping bricks or blocks, space can be saved and accumulation space can be reduced.


Flexible: The block clamping forklift can rotate the chuck, which can adapt to the operation needs of different situations.


Durable: The construction of the chuck equipment is robust and has a long service life, reducing the frequency of repairs and replacements.


The above is an introduction to the main features of Block Clamp Forklift.



Block clamp is a kind of work component installed on the forklift to meet the special requirements of various material handling and loading and unloading operations,It has changed the traditional way of material handling, making the forklift a versatile and efficient material handling tool that can be used for fork, clamp, push, pull, rotate, and sideshift for virtually any imaginable handling object.The block clamp forklift produced by our company has such functions as telescopic, elevating, etc. It can realize the introduction of goods and put it neatly. This is an ordinary forklift can not complete the action forklift.

Main features:

1.high production efficiency, low operating costs. Mechanized handling is shorter than traditional manpower handling operations, while reducing labor costs and increasing work efficiency

2.Safe and reliable operation, reducing the accident rate.

3.Small cargo loss With the help of the ejector's unique retractable and elevating functions, cargoes can be safely transported or piled up or handled, thus minimizing the loss of goods

Technical Specification:



Block Clamp Forklift




Block Clamp Forklift

    Model





    Capacity/
    Load Centre

    (kg/mm)

    Opening Range
    D

    (mm)

    Effective
    Thickness
    C

    (mm)

    Horizontal Center of Gravity
    CGH
    (mm)

    Weight



    (kg)

    Arm
    Length
    L

    (mm)

    Frame Width
    B

    (mm)

    Mounting class



UN25B20-166A21 2000/500 210-1660 147 335 610 1000 1140 2
UN25B20-166B21 3
UN25B20-166A41 340 640 1200 1140 2
UN25B20-166B41 3
UN25B20-166B21 2500/500 240-1660 158 330 710 1000 1140 3
UN25B20-166B41 335 750 1200 3
UN25B20-166B21 3000/500 240-1660 161 310 740 1000 1140 3
UN25B20-166C21 4
UN25B20-166B41 800 1200 3
UN25B20-166C41 4
UN25B20-166B61 860 1400 3
UN25B20-166C61 4
