 A brick machine automatic is a type of machine that automates the process of making bricks. It typically involves a conveyor belt or hopper that feeds the raw materials into a molding chamber where the bricks are shaped and compressed. The automatic aspect of the machine will then move the newly formed bricks onto a pallet or conveyor belt for stacking or further processing. These machines can produce a large number of bricks in a short period of time, making them an efficient option for brick manufacturing.

brick machine automatic Products Description

brick machine automatic is an automated equipment for the production of concrete blocks. It is widely used in the construction industry. It is favored by the market for its efficient, energy saving and environmental protection characteristics. This machine can produce concrete bricks of different specifications, shapes and colors according to design requirements to meet diverse building needs. As an efficient and environmentally friendly building material production equipment, the concrete brick machine can not only meet the demand for high -quality bricks in the modern construction industry, but also meet the trend of sustainable global development.

Electric frequency conversion vibration system

The variable frequency vibration technology has excellent low -frequency torque, which allows the cement brick machine to provide sufficient power and torque at low speeds to ensure the density and molding quality of the bricks. Product types and production needs, preset different vibration frequency and amplitude, thereby optimizing energy consumption and realizing energy saving and efficient production

Advanced compact structure

A solid rack can ensure that the machine is stable under high frequency vibration or pressure, reducing the risk of production interruption, and the firmness of the frame enhances the structure rigidity of the entire concrete block machine equipment, which helps reduce deformation and in the production process and Disposal to ensure the accuracy of brick molding

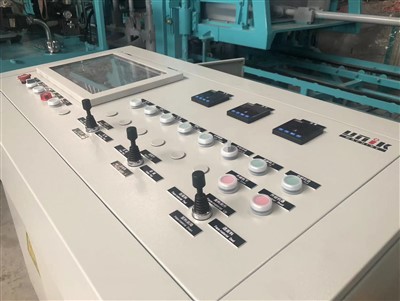

Advanced control system

PLC can accurately control all aspects of the production process with its high reliability, flexibility and user programming. The advanced control system can fulfill the fully automated of fabric, molding, blank, and palletization, reduce manual intervention, and improve production efficiency. The advanced control system allows fast replacement of molds and adjustment parameters to adapt to the production of different types of bricks. Improve the versatility of the equipment

High adaptability, good expansion performance

According to the actual needs of customers, after the finished product, it can be equipped with a automatic palletizer, or it can also expand the production line with a higher degree of automation.The space occupies a small space, the layout is compact, and the use of finished space utilization to be a fully automatic concrete block making machine



Products parameters

Dimension	5900×2040×2900mm
Pallet Size	1100×950×28-35mm
Vibration Frequency	3800-4500 r/min
Hydraulic Pressure	25 mpa
Vibration Force	90 KN
Cycle time	15-25s
Power	63.45kW
Weight	12800kg



Product	Product size	pcs/pallet	pcs/hour	Image

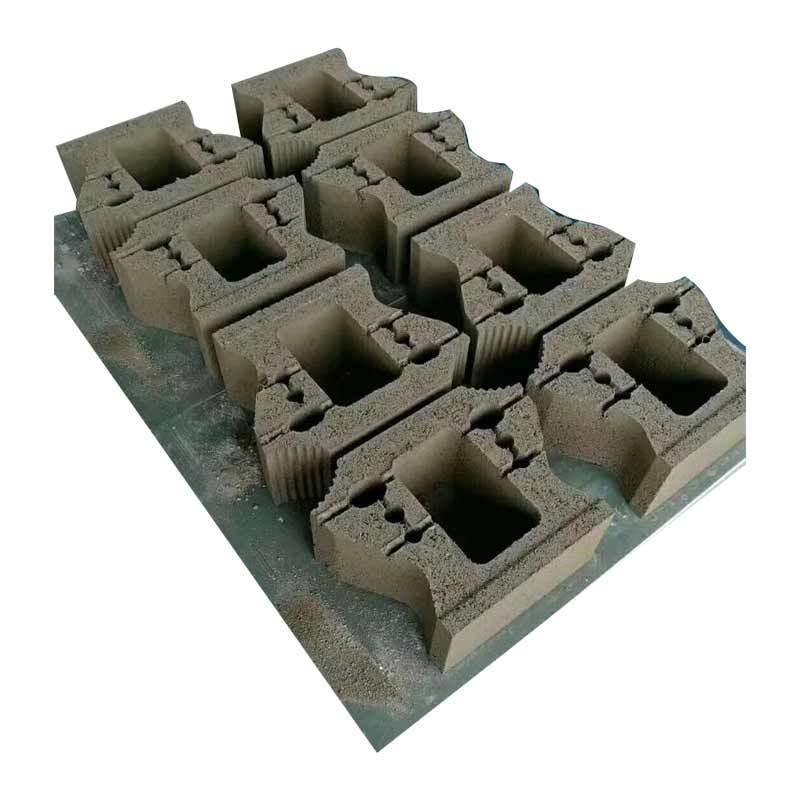

Hollow block	400x200x200mm	10 PCS	1800PCS
Hollow block	400x150x200mm	12 PCS	2160 PCS
Rectangular paver	200x100x60/80mm	36PCS	8640 PCS
Interlocking paver	225x112x60/80mm	24PCS	5760PCS
Kerbstone	200x300x600mm	3PCS	720PCS





Product Picture

Our factory

Manufacturing

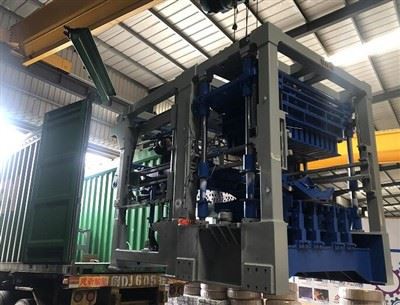

Delivery

workshop

Process

Buy a concrete block machine to invest in the South African market needs to consider multiple factors, including market analysis, laws and regulations, technical standards, local demand, and supply chain. Here are some key steps and suggestions:

1.Market research: First of all, in -depth research on the market in South Africa needs to conduct in -depth investigations to understand local market demand, competitors, price levels, and market trends.

2.Supply chain analysis: Evaluate the supply of raw materials in South Africa, including cement, aggregate, etc., as well as logistics and transportation conditions.

3.Risk management: identify and evaluate the risks that South Africa may face, including political risks, exchange rate risks, market risks, etc., and formulate corresponding risk management measures.
4.Financial analysis: Detailed financial analysis, including cost estimation, income forecast, investment return rate, etc.

5.Project planning: Formulate detailed project implementation plans, including production scale, equipment selection, construction cycle, operating strategy, etc.

6.Continue to pay attention to market developments: Continue to pay attention to the dynamics of the South African cement brick machine market, including new policy changes and changes in market demand, in order to adjust the investment strategy in time.

7.Utilizing China's advantage: Util China's technology and cost advantage in the cement brick machine industry to enhance its competitiveness in the South African market.
