Concrete Block Cuber Machine

Concrete Block Cuber Machine

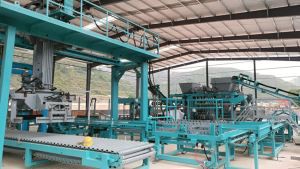

The Concrete Block Cuber Machine is a piece of industrial equipment used in the manufacturing of concrete blocks. It is typically used at the end of the production line to stack finished blocks into neat, uniform piles.

The machine consists of a conveyor belt that moves the blocks towards a cubing station. At the cubing station, the blocks are automatically arranged into desired patterns (such as 4x2, 3x3, 2x2x2) and then lifted and stacked onto a pallet or into a storage area by a robotic arm or crane.

The Concrete Block Cuber Machine can handle a wide range of block sizes and shapes, and is capable of stacking up to 120 blocks per minute. It is often used in large-scale concrete block manufacturing facilities to increase efficiency and reduce labor costs.

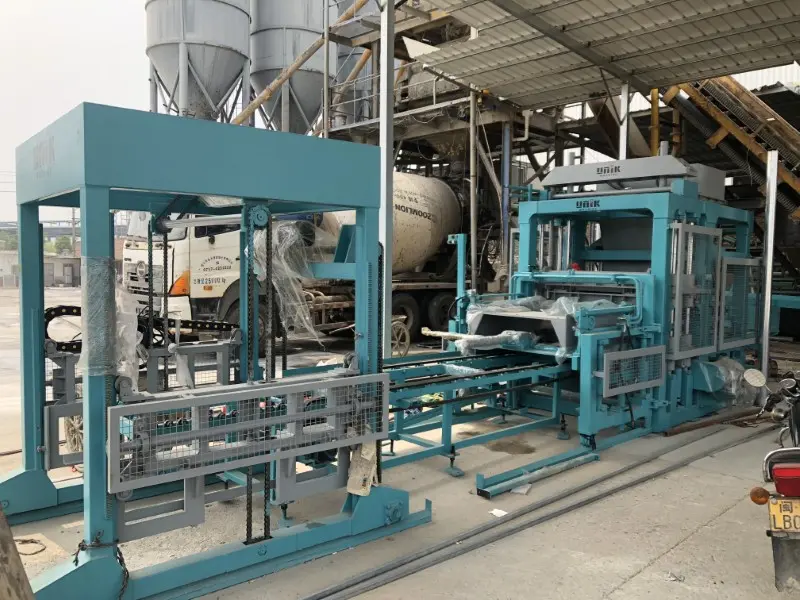

The cubing system will collect the blocks or pavers from two pallets at a time and cross stack them onto the exit conveyor. It is equipped with four rubber covered clamping arms and hydraulically operated with 360 degree horizontal movement. it can be also connected directly with concrete block production line to realize online cuber( in this situation it is suggested to adopted automatic operation), to solve the problem, we will provide following equipments:

1.    Concrete Block Cuber Machine

2.    Chain conveyor

3.    Brick pusher

4.    Pallet collector

5.    Automatic turntable

6.    Cuber head

7.    Non-tray conveyor

Main features:

1: This equipment adopts hydraulic transmission, which is convenient for installation and maintenance. Its internal electrical control components are controlled by high-power non-contact diodes and programmable controllers. It has low energy consumption, long service life and maintenance-free.

2: Full-featured, advanced electronic control technology-PLC program control can realize manual grabbing, brick grabbing, palletizing, automatic grabbing, brick grabbing, palletizing and other functions. The parallel jog device (man-machine control) is suitable for users of different cultural levels.

3: Hydraulic motor or electric drive --- can achieve high torque and high stability (optional according to actual conditions).

4: The whole machine is hydraulically driven-effectively reducing manufacturing costs, improving the reliability of the whole machine, reducing noise and energy consumption indicators. Link with PLC to realize automatic cycle.

5: Plywood assembly, brick assembly --- easy to replace, can meet different brick types and molds.

6: Medium-scale production capacity --- It can cooperate with the forming brick machine to form a certain output value, efficiency, and production line.

7: The machine has a single clamping assembly, which can adjust the clamping pressure at will to meet the needs of different block products.

8: Built-in automatic counting --- can realize single automatic control of the number of stacking layers. The machine has novel structure, beautiful appearance and advanced technical performance. With strong practicality, economy and competitiveness, it is an advanced production line integrating machine, electricity and hydraulics.
