Concrete Block Packing Machine

Concrete Block Packing Machine

Concrete Block Packing Machine is a kind of machine equipment used for automatic packing of concrete blocks or bricks. It improves transportation and storage efficiency by automating the handling, sorting and baling of concrete products. This type of equipment is especially suitable for large factories and production lines.

Concrete Block Packing Machine consists of conveyor system, sorting system, packing system and control system, etc. These systems can be adapted to the job requirements. The machine uses a machine vision system to check the length, height, width, weight, and shape of each brick or block being conveyed to ensure that its quality meets standards.

The machine has high productivity and accuracy, the operator can enter the required packaging specifications on the screen, and then the machine will complete the task automatically. By using the Concrete Block Packing Machine, operators can transport concrete blocks or bricks from the factory to the storage area, reducing operation time and labor costs while ensuring product quality and consistency.

In a word, Concrete Block Packing Machine is an important piece of equipment for the production line of concrete block or brick products. It can improve production efficiency, reduce labor costs, be environmentally friendly, and ensure that the blocks or bricks produced meet international standards.

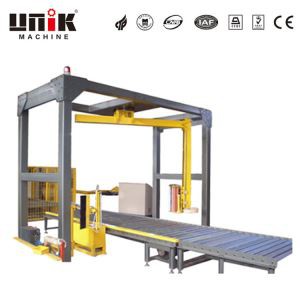

Concrete block packing machine is an integrated packaging equipment made by adding film function to the cantilever winding packaging machine. It can complete the two functions of winding packaging and top film covering. It can form a five-sided closed moisture-proof, rain-proof, Dust-proof packaging. Fully automatic operation, high efficiency and low packaging cost. It is widely used in food and beverage, chemical fiber chemical, metallurgical building materials and other industries. It is the most advanced equipment to improve the degree of automation.

Main technical parameters:

Packing size: (500-1200)mm X (500-1200)x2200mm(L×WxH)

Cantilever speed: 0-20rpm adjustable

Packaging efficiency: ≥25 Torr/h

Film frame system: electric pre-stretched film, stretch ratio up to 250%, adjustable speed

Automatic film breaking device: automatic clamping and cutting of film without any trailing, completely unmanned and automatic completion

Top film 　: PE/PVC film, width 1800mm, diameter 100-300mm, thickness 30-100μm.

Stretch film: LLDPE stretch film, width: 500mm, thickness: 20-35μm

Lifting parts: chain guide rail lifting mechanism, the lifting speed is adjustable by frequency conversion

Conveying system: Conveying line height: 400mm, speed: 8-15mm, load-bearing: 2000kg

Control system: PLC control, adjustable parameters, adjustable film length, automatic sensing of cargo size

Motor power: cantilever: 1.1KW, membrane frame: 0.37KW, lifting parts: 0.37KW, top coating: 0.37KW

Power supply: 4KVA/AC380V/50Hz, 3PH/N/PE

Air source: 0.4-0.6MPa, 350NL/min

Equipment size: 4500×2200×3500mm (L×W×H) (according to actual situation)

The automatic stack plate package is a baler that is designed to concrete products. The machine has a scalability rail, and when the machine detects that the article needs to be packaged, the rail will automatically extend automatically, forming the original frame. A closed line, after which it is automatically packaged. After the job is completed, the rail will automatically return to the baler body, and then transport the item to the next station by the conveying device.

The advantage of packaging processes is:

1) No need to use the tray, easy to transfer stack, avoid repeated code paings.

2) The venue is unrestricted, can be packaged in the kiln or turnover car, using transfer loading and unloading.

3) Change the low-efficiency unloading method of traditional artificial loading and unloading, increase 60% loading and unloading efficiency.

4) Avoid damage to the brick in the handling of loading and unloading, the damage rate can be reduced to zero.

5) After the brick is packaged, the use of a forklift or crane directly loading and unloading, the loading and unloading is shortened by the original 1-2.5 hours / car to 10-20 minutes / car.

6) Low investment, and later maintenance costs can be ignored.

The equipment is all imported electrical configuration, and the service life can also be used with the automated packaging production line to use optional automatic alarm devices, missions, and faults.
