Hydraulic Concrete Block Clamp Forklift

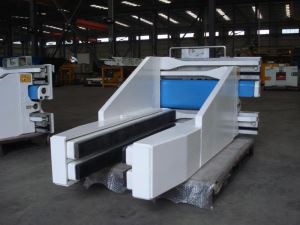

Cascade hydraulic concrete block clamp forklift

The Hydraulic Concrete Block Clamp Forklift is a type of forklift attachment designed for handling concrete blocks and other large, heavy materials. It uses hydraulic pressure to grip the material securely and allows the forklift operator to move it with ease. The clamp is typically made of durable materials such as steel and designed to withstand the weight of heavy loads. It is commonly used in construction and manufacturing industries for transporting concrete blocks, bricks, and other large materials.

Usage:
    Cascade hydraulic concrete block clamp forklift is suitable for various blocks such as aeroconcrete block, steam press brick, agglomerate brick, none-burning bricks,concrete pre-working products with non-tray transportings, stacking, load-ing operation

  Characteristic:

  1. Adopt full steel complete frame, high density, can meet the requirement of high forcing performance.
   2.According to the force designed to clamp arm, solid and reliable,large clamping force and holding clip quantity, long operating life.
   3. Large opening range :300-1700mm.
   4. Flexible design that can be installed on any use of spreader
   5. Optimized structure ensure nice visual field.

  6. Independent side shifter,can move both side while claping object

  7.with disassembly wearable rubber bar can hold a whole stack of blocks steadily.

 Specification:

 Model:BJ-001

 Carrying capacity:3000kg
 Arm length:1200mm
 Arm thick:210mm
 Height:2060mm
 Clamping height:1.2m
 Rotation:360°
 Frame width:1100
 Opening range:300mm-1700mm
