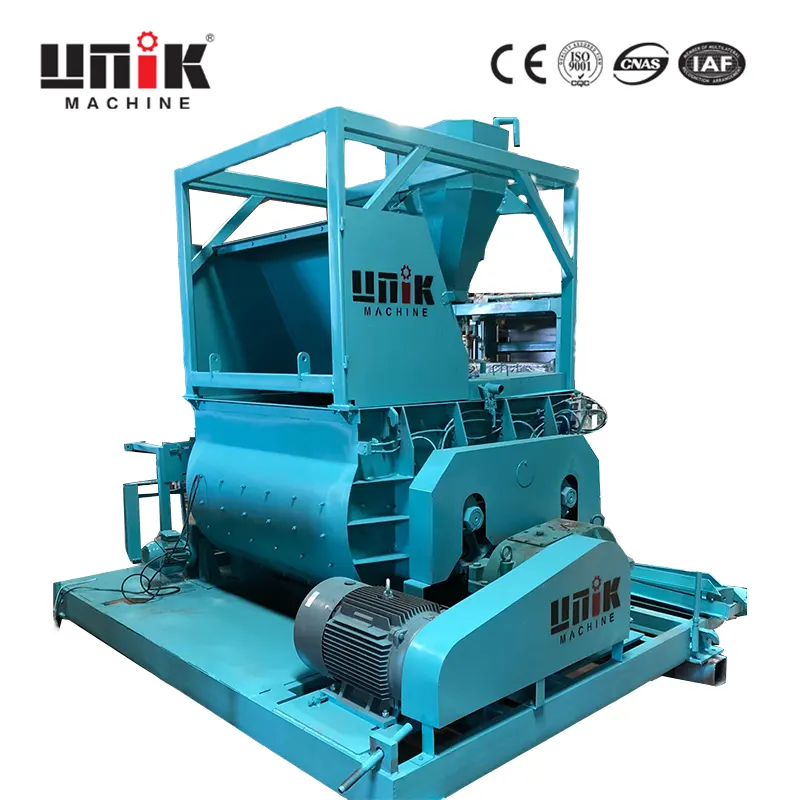

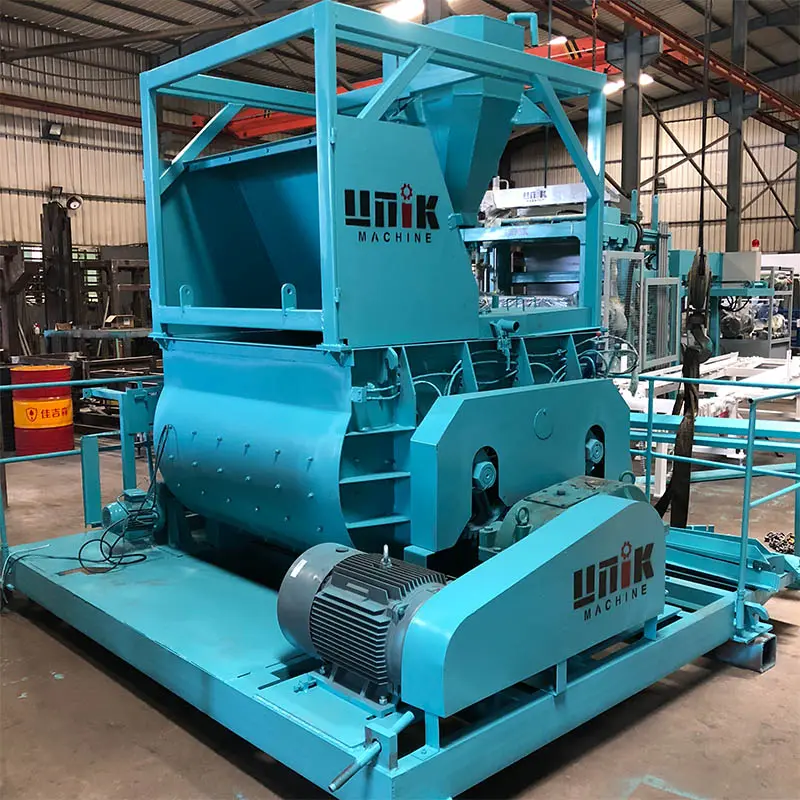

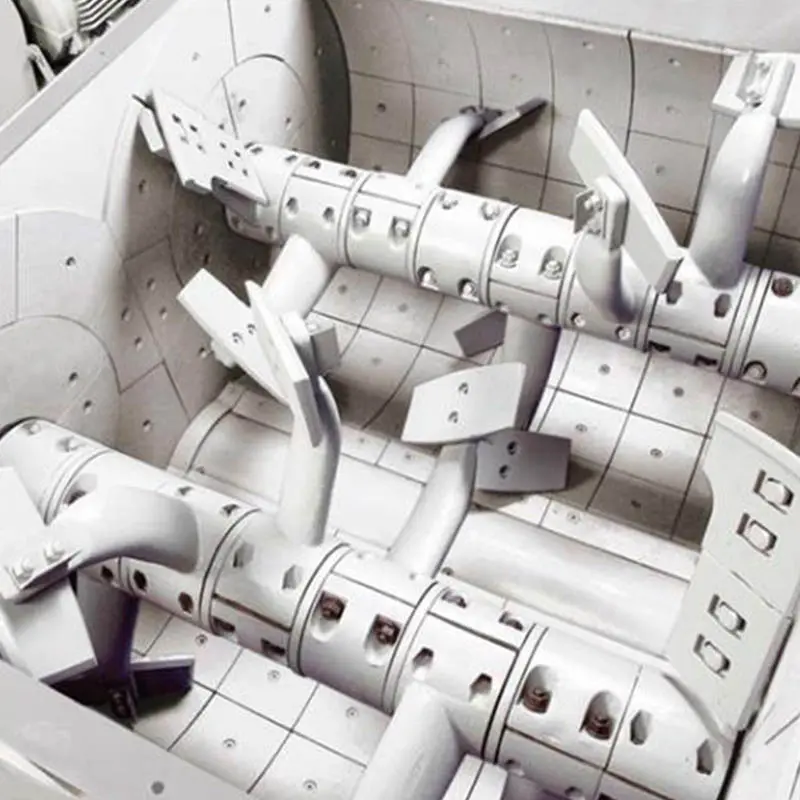

The JS Compulsory Mixer is mainly composed of two horizontally arranged circular groove-shaped mixing drums, two mixing shafts that rotate in opposite directions, and a rotating mechanism. Several groups of mixing blades are installed on the two shafts,the mixture is mixed alternately in two mixing drums. On the one hand, the mixture at the bottom and the middle of the mixing drum is turned upward, and on the other hand, the mixture is pushed forward and backward along the axis, Thus, the mixture can be done quickly and evenly.
The JS Compulsory Mixer is mainly composed of two horizontally arranged circular groove-shaped mixing drums, two mixing shafts that rotate in opposite directions, and a rotating mechanism. Several groups of mixing blades are installed on the two shafts,the mixture is mixed alternately in two mixing drums. On the one hand, the mixture at the bottom and the middle of the mixing drum is turned upward, and on the other hand, the mixture is pushed forward and backward along the axis, Thus, the mixture can be done quickly and evenly.
JS Compulsory Mixer Techinical specification:
Model No

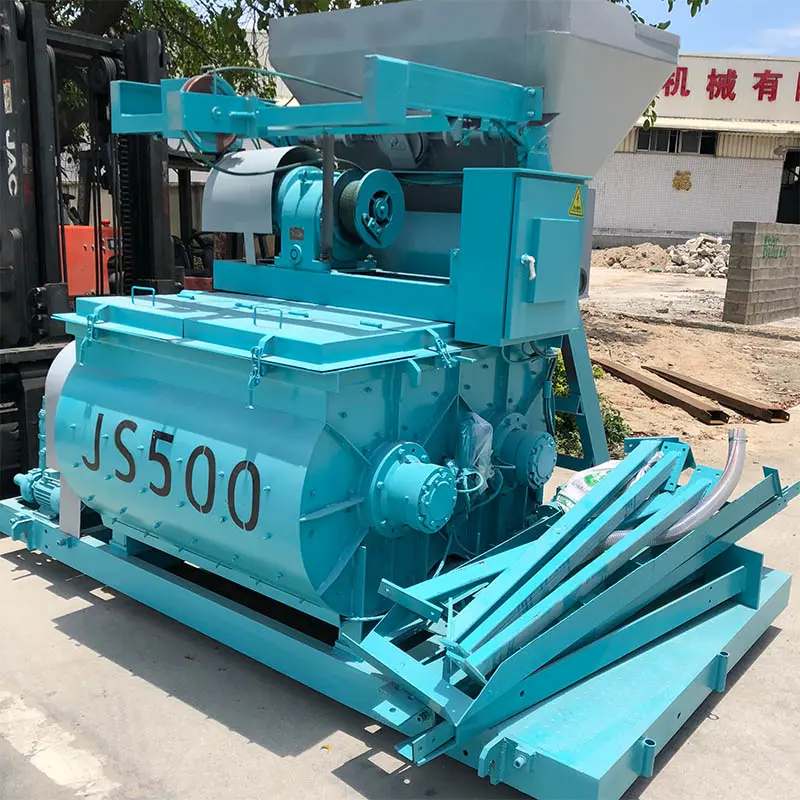

JS500

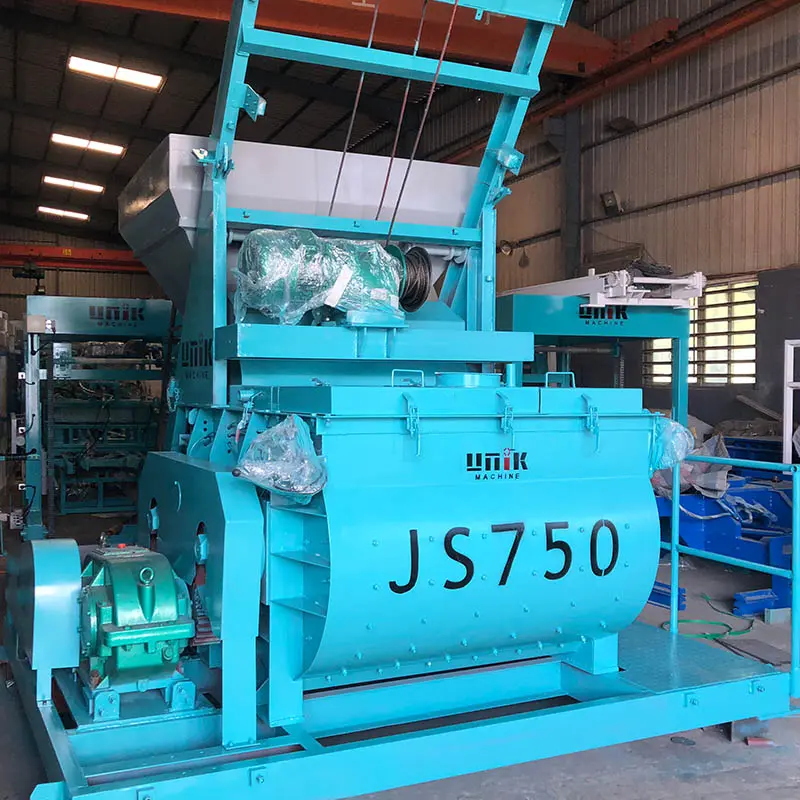

JS750

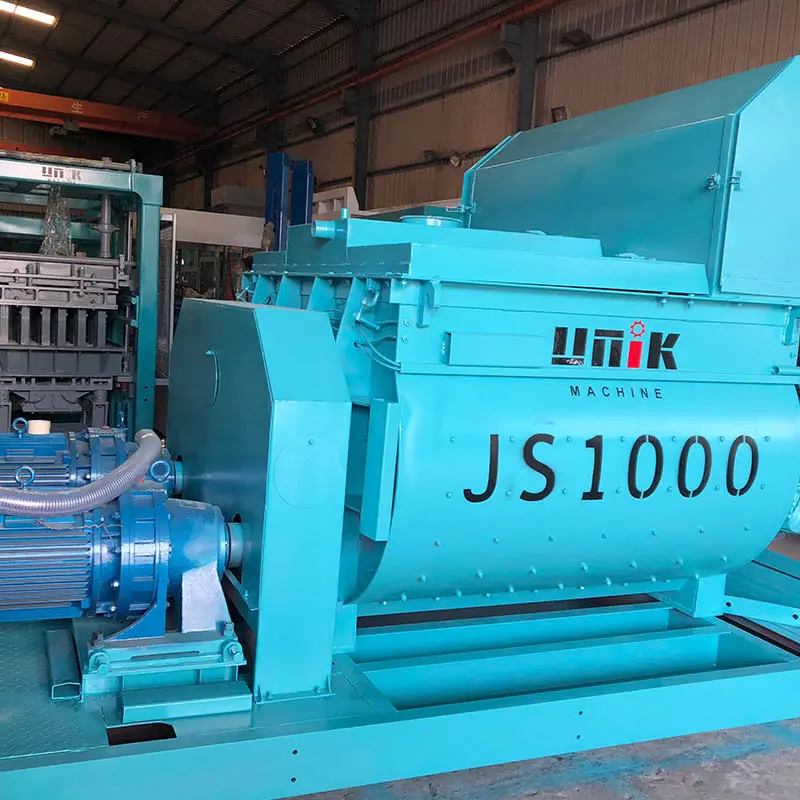

JS1000
JS1500
JS2000
Rated discharging volume
500L
750L
1000L
1500L
2000L
Rated feeding volume
800L
1200L
1600L
2400L
3200L
Rated productivity
≥25m3/h
≥37.5m3/h
≥50m3/h
≥75m3/h
≥100m3/h
Aggregate maximum diameter(mm)
80/60
80/60
80/60
80/60
80/60
Mixing blade
Rotating speed
35r/min
31r/min
25.5r/min
25.5r/min
23r/min
Quantity
2×7
2×7
2×8
2×10
2×9
Mixing motor
Model No
Y180M-4
Y200L-4
Y225S-4
Y225M-4
Y280S-4
Power
18.5kw
30kw
37kw
45kw
75kw
Winch motor
Model No
YEZ1325-4-B5
YEZ132M-4-B5
YEZ160S-4
YEZ180L-4
YEJ180L-4
Power
5.5KW
7.5KW
11KW
18.5KW
22KW
Water pump
Model No
50DWB20.8A
65DWB35.8A
KQW65.100I
KQW65.100I
CK65/20L
Power
750W
1.1KW
3KW
3KW
4KW
Hopper lifting speed
18m/min
18m/min
21.9m/min
23m/min
26.8m/min
Dimension
transportation
3050× 2300× 2680mm
3650× 2600× 2890mm
4640× 2250× 2250mm
5068× 2250× 2440mm
5680× 2250× 2735mm
Working status
4461× 3050× 5225mm
4951× 3650× 6225mm
8765× 3436× 9540mm
9645× 3436× 9700mm
10720× 3870× 10726mm
Weight
4000kg
5500kg
8700kg
11130kg
15000kg
Discharging height
1500mm
1600mm
2700/ 3800mm
3800mm
3800mm
