Mobile concrete block making machines are a type of construction machinery used to produce concrete blocks of various sizes and shapes. They are designed to be operated on wheels, which enables them to be easily transported to different construction sites.
Mobile concrete block making machines are equipped with a hydraulic system, which allows for the proper mixing and molding of the concrete material, producing high-quality blocks. They can produce a wide range of concrete products, including paving stones, hollow blocks, solid blocks, and curbstones.
These machines are suitable for small and medium-sized enterprises involved in the construction industry, as they can produce high-quality blocks with relatively low investment costs. Additionally, mobile concrete block making machines are versatile and can be operated by a small team, making them ideal for small-scale projects that require quick and efficient production.
Overall, mobile concrete block making machines are an essential tool for the construction industry, helping to produce high-quality and durable concrete blocks that form the foundation of almost any building project.
|

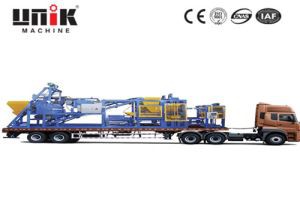

Unik mobile concrete block making machine is designed as a whole block making plant running on trailer, based on stationary plant, it has both advantages of mobile machine and stationary machine. Which requires less land, less labors, no foundation and can easily move to another site.
A simple concrete paver machine production line requires approximately 12-15 manual labors and 2 supervisors ( to operate the machine needs 5-6 employees)
One operator for batching station and mixer One operator for block machine 2 operators for feeding pallets to the machine 1-2 operator for forklift
|
Advantage:
1.special design makes the entire plant easily transported by truck
2.simple relocation of the plant from one site to another
3.same quality as basic plant
4.customize design for unique project
5.open to use
Aggregate Sifter
Concrete Pan Mixer
■Theoretical productivity:3-7m3/h
■Discharge system:by manual
■Power: 11kw
■Feeding Capacity: 750L
■Discharging Capacity: 500L
■Cycle time:50s
■Weight:560kg
■Overall size: 1270*1250*1250mm
QT3-15 Block Machine:
▲Pallets size: 700×540×20 mm wooden pallets
▲Maximum Moulding Area: 700×500×(40-220mm)
▲Molding cycle of Hollow Blocks of size 400x200x200: 15 sec
▲Vibration frequency: 1500-3100r/min
▲Hydraulic Engine Power:25.35kW
▲Hopper Capacity: 0.3 m3 wet mix
▲Standard compression pressure: 10-20Mpa
▲Gross weight: 4.2T
