Brick making automatic production lines refer to the automated process of producing bricks using advanced machinery and technology. These production lines usually consist of various machines such as crushers, mixers, conveyors, and brick-making machines that work together to produce high-quality bricks at a faster rate and a lower cost compared to traditional brick-making methods.
The production process starts with raw materials such as clay, sand, cement, and other additives being mixed in the appropriate proportions by the mixing machine. This mixture is then loaded onto a conveyor belt which transports it to the brick making machine.
The brick-making machine is the heart of the automated production line. It uses pressure and heat to mold the clay mixture into the desired shape and size. The molded bricks are then automatically removed from the machine and loaded onto a pallet for curing.
After the curing process, the bricks are stacked and loaded onto transport vehicles for delivery to various construction sites. The automated production line ensures a consistent quality of bricks and reduces manual labor, making it a cost-effective and efficient way of producing bricks.
Overall, the brick making automatic production line is a sophisticated and impressive technology that has revolutionized the brick-making industry
Features:
1. Adopt world-famous brand component mature visualized software easy to operate with auto error diagnosis and remote control function
2. Double ratio: The double ratio makes the pressure and flow of the hydraulic control system of the model can be adjusted separately
3. Inverter: The inverter not only saves energy but also protects the vibrating motor, so that the vibrating motor runs at a constant speed without working, so as to ensure the smooth running of the current and voltage during the instant start of the vibrating motor and prolong the life of the motor.
4.Unique water circulation heat dissipation technology ensures the normal temperature of the hydraulic oil, making the equipment transport bricks more stable.
4. The forced four-column guide column mold synchronous movement structure makes the mold lift smoothly and ensures the consistency of the product thickness.
5. Patent multi-shafts vibrator combines floating vibration table make concrete products even and compact
6. The material feeder adopts the manganese steel ,the feeding is fast and uniform, the forming speed is increased, the product density is uniform
| Dimension | 3100×1680×2460mm |
| Pallet Size |
850×680×20-30mm |
| Vibration Frequency | 3800-4500 r/min |
| Hydraulic Pressure | 25 mpa |
| Vibration Force | 68 KN |
| Cycle time | 15-20s |
| Power | 41.53kW |
| Weight | 7400kg |
| Product | Product size | pcs/pallet | pcs/hour | Image |
| Hollow block | 400x200x200mm | 6 PCS | 1920PCS |
|
| Hollow block | 400x150x200mm | 8 PCS | 1440 PCS |
|

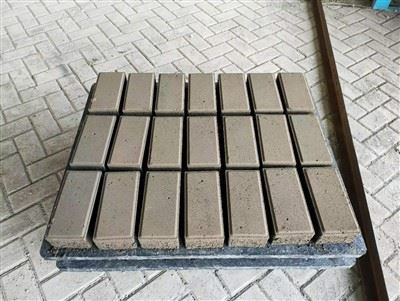

| Rectangular paver | 200x100x60/80mm | 28PCS | 5040 PCS |
|
| Interlocking paver | 225x112x60/80mm | 20PCS | 3600PCS |
|
| Kerbstone | 200x300x600mm | 2PCS | 480PCS |
|
The brick making automatic production lines is designed to produce concrete blocks, bricks, and paving stones. The machine is available in different sizes and models depending on the needs of the customer. They are able to produce blocks in different shapes and sizes which can be used for various applications such as constructing walls, foundations, pavements, and other structures.Productions based on machine's performance at 100%. Production data for guidance only, depending on the shape of the pieces, type of aggregates and possible circuit stops.In summary, cement brick machines are an essential tool for the construction industry. They offer several benefits, such as versatility, productivity, and durability, that make them a cost-effective solution for building walls, pavements, and other structures in both residential and commercial applications. Investing in a quality cement brick machine is a wise choice for anyone looking to scale up their construction business.
Manufacturing
Delivery
workshop
Process
Our company has always adhered to the development direction of energy saving, emission reduction, recycling, and intelligent innovation, and has continuously launched high-end environmental protection building materials complete sets of equipment that meet the needs of social development, and continue to help the development of ecological environmental protection and solid waste resource recycling. So far, UNIK has successfully implemented more than 500 environmental protection block factores landing projects at home and abroad, and its product quality and technical standards have been obtained High praise from customers at home and abroad.
For UNIK, the successful production of equipment is just the beginning of service. UNIK has set up a local office in Africa, which can reach the entire African region. It also has a spare parts warehouse. If customers encounter problems and need assistance, UNIK's after-sales team can Arrive at the scene within 24 hours for processing.Leading products and professional services are the main reasons why UNIK is famous overseas. Under the country's grand strategy of One Belt One Road, UNIK Machinery will continue to uphold a rigorous service attitude and efficient service level to help Africa complete the upgrade of infrastructure
