Hollow Block Industry Machines Hollow Block Industry Machines steps: The production process of hollow blocks usually includes steps such as raw material handling, mixing, molding, and curing. Modern equipment adopts technologies such as vibration platform, hydraulic oil pump and PLC intelligent con......
The production process of hollow blocks usually includes steps such as raw material handling, mixing, molding, and curing. Modern equipment adopts technologies such as vibration platform, hydraulic oil pump and PLC intelligent control to ensure production efficiency and product quality. For example, UNT series hollow block industry machines use vibration pressurization or hydroforming to press the mixture into shape and harden it during the curing process. In addition, some machines also support a quick mold change function, which can be adapted to the production of blocks of different sizes and shapes
Hollow Block Industry Machines cost:
Dimension
3000 ×1900 ×2930mm
Weight
6T
Pallet size
1100 ×630mm
Power
42.15 kW
Vibration method
Siemens motors
Vibration Frequency
3800-4500 r/min
Cycle time
15-20s
Vibration Force
50-70KN
Hollow block industry machines are widely used in residential, commercial buildings and government public works. Due to its high strength, light weight and low cost, hollow blocks are widely used in the construction of load-bearing and non-load-bearing walls. In addition, these machines are able to produce environmentally friendly blocks from industrial waste such as fly ash, cinder, etc., further reducing production costs.
Hollow Block Industry Machines Main features:
1. Efficient production:
Some advanced models can produce thousands of hollow bricks per hour, which significantly improves production efficiency. 2. High flexibility:
Mold shapes and sizes can be customized according to needs to produce hollow bricks of different specifications. 3. Energy saving and environmental protection:
Hollow bricks reduce the transportation cost and energy consumption of building materials due to their lightweight characteristics, and have good thermal insulation performance. 4. Easy maintenance:
Many models have a simple design and are easy to operate and maintain, reducing maintenance costs in long-term use.
Products
Pic
Size
Capacity
Cycle time
Daily capacity
Hollow block
390 ×190 ×190mm
5pcs/pallet
15-20s
7200pcs
Hollow brick
240 ×115 ×90mm
16pcs/pallet
15-20s
23040pcs
Brick
240 ×115 ×53mm
34pcs/pallet
15-20s
48960pcs

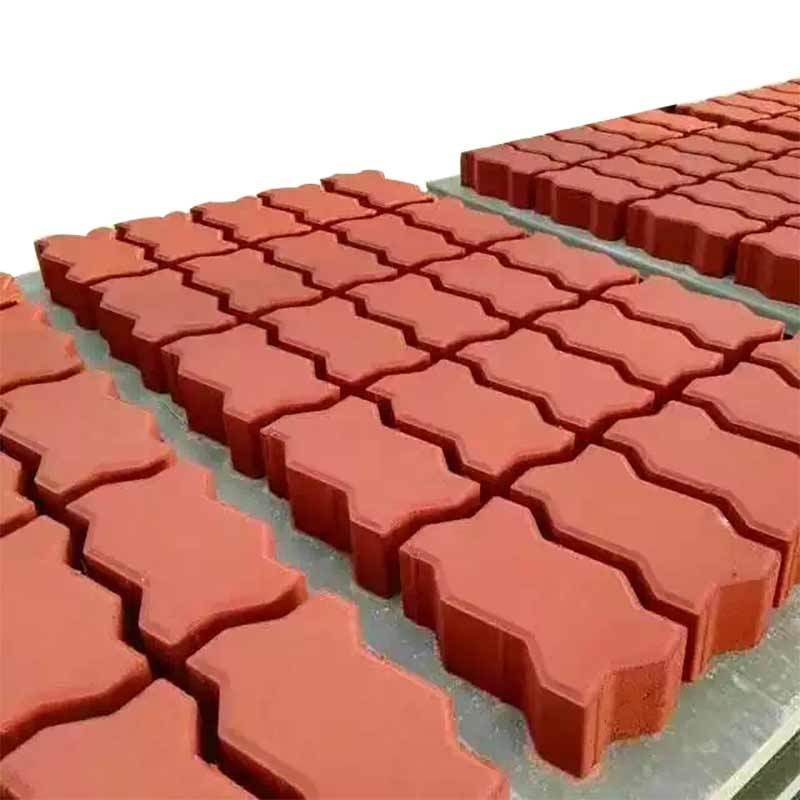

Paver
200 ×100 ×60mm
20pcs/pallet
15-20s
28800 pcs
why choose our Hollow Block Industry Machines factory
Our company is mainly engaged in the research and development, production, sales, and service of building materials machinery such as concrete block production lines, concrete mixing plants, and construction waste recycling and processing production lines. After 15 years of innovation and development, our equipment has been sold to 40 countries and regions.
We aim to improve the product range in the direction of customer suggestions and demands by meeting the needs of our valued customers without sacrificing quality and time delivery and production, with the service of Unik Machinery, which is always aiming to increase the product quality and quality in the company.
Based on its own sales network, establish extended services for customers:
1. Assist in the formulation and analysis of customer marketing strategies;
2. Provide timely technical updates and system upgrades;
3. Share new industry information and resource sharing;
4. Provide industry application technical support, participate in and support customer technical innovation.
If you have any enquiry about quotation or cooperation, please feel free to email or use the following inquiry form. Our sales representative will contact you within 24 hours.
