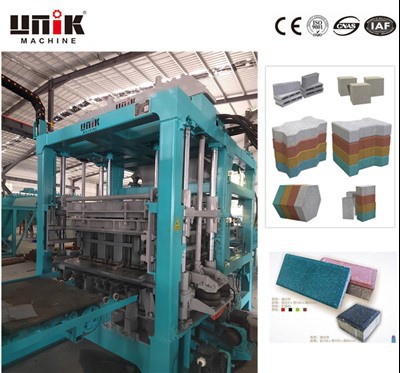

This product is a machine designed for manufacturing concrete blocks and pavers. It can be used in different construction projects where these elements are required. The machine is designed to produce high-quality, durable and uniform blocks and pavers at a high production rate. It operates with hydraulic pressure and can be customized to produce blocks and pavers of different sizes and shapes to meet the specific needs of a project. Some of the key features of the machine include ease of operation, low maintenance costs and energy efficiency.
Concrete block and paver making machines are essential equipment for the construction industry. They are used for making high-quality concrete blocks and pavers, which are widely used in building roads, sidewalks, and other construction projects. Multi-purpose automatic pavement brick machine production line can produce different specifications of porous brick, hollow block, curb stone, pavement brick, grass planting brick, slope protection brick and other cement products by replacing brick machine mold.More importantly, the production line adopts electro-hydraulic integrated technology, which can greatly reduce the cost of brick making. Compared with ordinary brick machines, the production capacity is higher, the benefits are higher, and the adaptability is wider.
Our Concrete block and paver making machine is equipped with the latest technology and high-quality components from international renowned brands. The machine frame is made of high-strength steel and is designed with special welding techniques to ensure stability and durability. we believe the quality of the machine is critical to the quality of the blocks and pavers produced.
Fully automatic concrete block forming machine supports servo motor vibration, with reasonable structure, reliable use, high vibration efficiency, organic combination of pressure and vibration, and good product compactness.Servo vibration full closed-loop control, more stable excitation force and better vibration effect.Each servo motor is an independent unit, no mechanical synchronization device is required, and it is easy to maintain.
The machine also has an electronic control system that is easy to operate and provides precise control over the various parameters involved in the production process. The control system uses high-quality components from international brands, ensuring stability and reliability.In addition to the high-quality components, the machine also features a user-friendly interface that makes it easy to operate and maintain. The machine is also designed with safety features to ensure the safety of the operator and prevent accidents.
Using a paver cement block making equipment to produce interlocking blocks for paving is a cost-effective and environmentally-friendly solution. The blocks are durable, easy to install, and require minimal maintenance, making them an ideal choice for outdoor spaces such as walkways, patios, and driveways. With the versatility of the paver cement block machine, builders can create customized patterns and designs for a range of applications.
| Dimension | 3000×1900×3160mm |
| Pallet Size |
1100×740×28-35mm |
| Vibration Frequency | 3800-4500 r/min |
| Hydraulic Pressure | 25 mpa |
| Vibration Force | 68 KN |
| Cycle time | 15-20s |
| Power | 48.53kW |
| Weight | 8200kg |
The investment and implementation progress of brick machine project:
1) Preliminary preparation of the project: site inspection, feasibility report preparation, 5-10 days.
2) Complete process design and technical construction drawing design: 1 to 3 days.
3) Lead time:25-30 days for standard equipment orders
4) Civil construction and equipment transportation: 5-7 days.
5) Equipment installation (including induction training, equipment debugging, trial production): 10-15 days.
| Product | Product size | pcs/pallet | pcs/hour | Image |
| Hollow block | 400x200x200mm | 8 PCS | 1920PCS |
|
| Hollow block | 400x150x200mm | 12 PCS | 2160 PCS |
|
| Rectangular paver | 200x100x60/80mm | 36PCS | 8640 PCS |
|
| Interlocking paver | 225x112x60/80mm | 25PCS | 6000PCS |
|
| Kerbstone | 200x300x600mm | 4PCS | 960PCS |
|
Manufacturing
Delivery
workshop
Process
Our company has passed the "ISO9001-2015 Quality Management System" and "EU CE Certification", with independent intellectual property rights and dozens of national patents. The product research and development project is subordinated to the industrialization of new building materials and equipment for the comprehensive utilization of industrial solid waste in the low carbon, energy saving and environmental protection fields supported by the central government.With its technical team and customer focused vision, UNIK Machinery has been able to apply all kinds of experiential and technological knowledge to the field, which has acquired over 20 years in the industry. Unik Machinery is preferred because it can find solutions to the needs of the sector and transfer these solutions to the field of operation.
