The Concrete Block Form Machine is a type of machinery used in the construction industry to produce concrete blocks and bricks. It is designed to create various shapes and sizes of blocks by using different molds or forms, which are made of steel or polyurethane. The machine works by pouring a mixture of cement, sand, and water into the mold, and then applying pressure to compact and shape it into a block. The blocks are then removed from the mold and left to cure, usually for a few days, before they are ready to be used in construction projects. The Concrete Block Form Machine is a cost-effective and efficient way to produce large quantities of high-quality blocks with consistent quality and accuracy.
The Concrete Block Form Machine is a type of machinery used in the construction industry to produce concrete blocks and bricks. It is designed to create various shapes and sizes of blocks by using different molds or forms, which are made of steel or polyurethane. The machine works by pouring a mixture of cement, sand, and water into the mold, and then applying pressure to compact and shape it into a block. The blocks are then removed from the mold and left to cure, usually for a few days, before they are ready to be used in construction projects. The Concrete Block Form Machine is a cost-effective and efficient way to produce large quantities of high-quality blocks with consistent quality and accuracy.
The Concrete Block Form Machine is an innovative technology that has changed the way people produce concrete blocks for construction. The machine is designed to make the production process faster, more efficient, and more cost-effective which exerts pressure on the concrete while simultaneously pressing it into different molds to create various shapes. This machine is well-suited for a variety of construction projects, such as houses, retaining walls, low-cost housing, boundary walls and a host of other impressive structures.
The Concrete Block Form Machine is a highly specialized piece of equipment that requires skilled operators. The machine uses a hydraulic system to press the concrete mixture into molds to produce the desired block shapes and sizes. The resulting blocks are strong, durable, and able to withstand the rigors of construction.
Specification of products(mm)
Number of blocks per pallet
Pieces/1 hour
Pieces/8hours
Block
400×200×200
7.5
1350
10800
Hollow Brick
240×115×90
20
4800
38400
Paving Brick
225×112.5×60
20
4800
38400
Standard Brick
240×115×53
40
9600
76800
Curbstone
200*300*600
2
4800
38400
Technical specifications
The concrete block form machine comes with a range of accessories that enhance its performance and efficiency. Some of the configuration options include:
- Automatic conveyor belt: The conveyor belt feeds raw materials into the machine, increasing the production rate and reducing the need for manual labor.
- Pallets: The machine comes with pallets that support the concrete blocks during the production process, enabling them to dry quickly and harden effectively.
- Mixing system: The mixing system ensures that the raw materials are mixed evenly, creating a consistent product.
- Automatic stacking system: The stacking system stacks the finished concrete blocks automatically, freeing up the operator to attend to other tasks.
Dimension
3070×1930×2460mm
Weight
8.2T
Pallet size
1100 ×680mm
Power
48.53 kW
Vibration method
Siemens motors
Vibration Frequency
3800-4500 r/min
Cycle time
15-20s
Vibration Force
50-70KN
Main features:
- High accuracy: The machine is designed to produce blocks with high accuracy, ensuring that each block meets the required dimensions and specifications.
- User-friendly: The machine is easy to operate and requires minimal training. This feature makes it an excellent choice for both experienced and novice operators.
- Compact design: The machine is compact, making it easy to transport and set up on construction sites that have limited space.
- Low maintenance: The machine requires minimal maintenance, which makes it very cost-effective to operate.

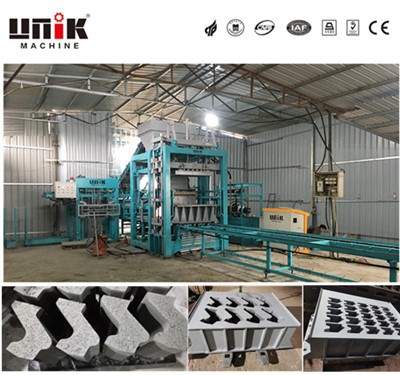

Product Picture
Our factory
Manufacturing
Delivery
workshop
Process
The benefits of using concrete blocks in construction are numerous. They are durable, fire-resistant, and weather-resistant, making them ideal for use in harsh environments. They are also relatively easy to install, reducing labor costs and construction time. Additionally, concrete blocks are environmentally friendly, with the ability to be recycled or reused.With the development of environmental protection building materials and raw materials, ordinary clay bricks have also been replaced by unfired bricks, and brick kilns are banned in various places. It also promoted the development of the new building material brick production equipment, the fully automatic unburned brick machine. Moreover, with the development of the economy, people are increasingly pursuing a comfortable living environment, and my country's building materials industry is also ushering in the spring of development. The rapid development of domestic infrastructure, along with the high requirements and high demand for building materials and bricks, have also allowed this equipment to develop well in an environmentally friendly society. The development of our country's infrastructure and the acceleration of our new rural construction. As a new building material brick production equipment, the fully automatic non-burning brick machine has also been well utilized, and will surely get better development in our future building material industry.
