Concrete Interlock Brick Machine

Concrete Interlock Brick Machine

Concrete interlock brick machine is a type of brick making machine used to manufacture interlocking bricks. These bricks are typically used for paving applications, such as walkways, driveways, and garden paths. The machine works by compressing a mixture of concrete, sand, and other materials into a mold that creates the interlocking pattern. The finished brick is then cured and ready for use. These machines can come in various sizes and capacities, depending on the production needs of the user. They can be operated manually or with the use of automatic technology.

Concrete Interlock Brick Machine plays an important role in the development of the construction industry and promotes the further development of the construction industry. The concrete block manufacturing plant adopts integrated oil circuit, hydraulic transmission and electrical control. It has the characteristics of low noise, long service life, high degree of automation, convenient operation and compact structure. It only needs to be installed on a flat concrete floor, which is easy to install and does not need to be fixed with anchor bolts. And it is very convenient to replace the mold, which can press permeable brick products of various specifications and shapes. The design of block machine is equipped with a movable sliding beam, which is uniform in force, accurate and reliable in positioning, and the mold cover is not easy to rotate. It can realize automatic stop, automatic return and other functions.
The manufacturing plant typically consists of several sections, including the batching plant, mixing plant, mold storage area, curing area, and packaging area. The batching plant is where the ingredients are weighed and mixed in the correct proportions. The mixing plant is where the mixture is combined into a homogeneous mass using a mixer. The mold storage area is where the molds are kept until they are needed for use. The curing area is where the blocks are left to cure for a set period to develop strength and durability. The packaging area is where the blocks are packaged and shipped to customers.

After-sales service culture

Our advantage lies in the cutting-edge and independent research and development technology, which enables us to efficiently provide customers with complete and comprehensive solutions.
We deeply understand customer needs, integrate multi-channel services, and use efficient transportation management to help customers effectively reduce factory cost operations, achieve energy-saving goals, and gain competitive advantages.

Siemens PLC

Siemens PLC has a hardware fault self-detection function, and can send an alarm message in time when a fault occurs. In the application software, the user can also program the fault self-diagnosis program of peripheral devices, so that the circuits and equipment in the system except Siemens PLC can also obtain fault self-diagnosis protection

Intelligent computer control system

The computer control system ensures that each block produced has the same size and the right amount of water and cement mixture, which is essential to produce high quality interlocking blocks.These machines are designed to be easy to use, even for non-technical users. The user interface is intuitive and the machine functions are easy to understand. This feature allows builders to produce interlocking blocks with minimal training and supervision.

A very compact structure

The design of the fully automatic interlocking block machine is also very durable and reliable. using a heavy-duty design and advanced heat-treated high-strength steel. These machines can withstand the rigors of continuous use and last for many years. The investment in a fully automatic interlocking block machine is worth it in the long run as it will provide the builder with years of reliable service.







Technical advantages:

1. Adopt German frequency conversion technology, host frequency conversion control, reduce the motor starting current, realize the synchronous work of the vibration assembly, solve the motor inertia problem when parking, and save 20-30% of power.

2. Adopt German Siemens programmable controller (PLC) and Siemens touch screen control, easy to operate, low failure rate, permanent storage of formula data, real-time fault diagnosis and real-time alarm system.

3. The hydraulic control system adopts a highly dynamic proportional valve, which can automatically adjust the flow rate during the production process to improve stability and extend the service life of the cylinder.

4. Using 360-degree rotating forced cloth, fast speed, uniform distribution, suitable for various raw materials and various molds

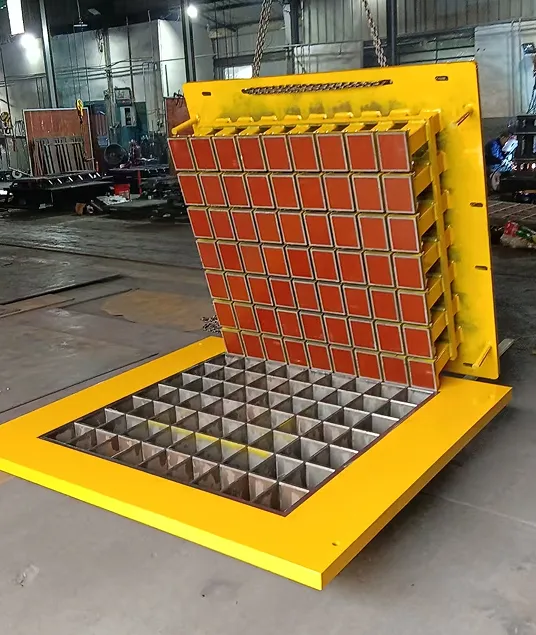

5. The mold material is carbonitrided, wear-resistant and abrasion resistant, and extend the service life by more than 50% compared with the general quenched and tempered mold.

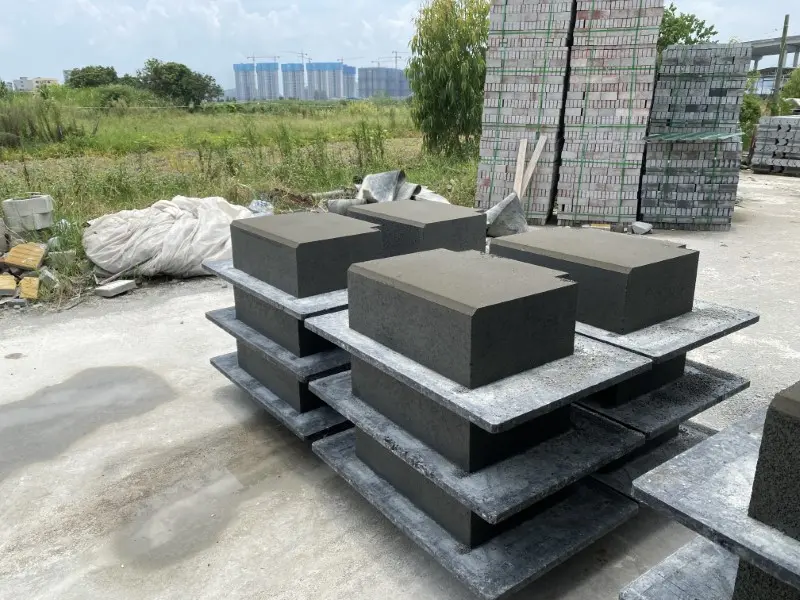

Many types of concrete blocks can be produced using an industrial concrete block making machine. These include hollow blocks, solid blocks, interlocking blocks, and paving blocks. The ability to produce a variety of block types is essential for meeting the diverse needs of the construction industry.Industrial concrete block making machines are available in a range of sizes and capacities. The size of the machine depends on the production needs of the plant. Smaller machines are suitable for small-scale production, while larger machines are designed for high-volume production.

Manufacturing

Delivery

workshop

Process

The benefits of using concrete blocks in construction are numerous. They are durable, fire-resistant, and weather-resistant, making them ideal for use in harsh environments. They are also relatively easy to install, reducing labor costs and construction time. Additionally, concrete blocks are environmentally friendly, with the ability to be recycled or reused.With the development of environmental protection building materials and raw materials, ordinary clay bricks have also been replaced by unfired bricks, and brick kilns are banned in various places. It also promoted the development of the new building material brick production equipment, the fully automatic unburned brick machine. Moreover, with the development of the economy, people are increasingly pursuing a comfortable living environment, and my country's building materials industry is also ushering in the spring of development. The rapid development of domestic infrastructure, along with the high requirements and high demand for building materials and bricks, have also allowed this equipment to develop well in an environmentally friendly society. The development of our country's infrastructure and the acceleration of our new rural construction. As a new building material brick production equipment, the fully automatic non-burning brick machine has also been well utilized, and will surely get better development in our future building material industry.
