flyash brick machine

flyash brick machine

 Flyash brick machine (also known as fly ash brick making machine) is a machine that uses fly ash, lime, gypsum, and sand to produce concrete bricks. These bricks are often used in construction projects as they are eco-friendly, energy-efficient, and offer good insulation properties. The machine works by mixing the raw materials in a precise ratio to form a concrete mixture. This mixture is then poured into a brick mold and pressed with a hydraulic press to form the brick shape. After the brick is formed, it is then cured in a steam chamber or under a plastic cover for several days. The resulting bricks are durable and have a consistent finish, making them ideal for use in construction.

flyash brick machine Products Description

Unik flyash brick machine is a high -performance domestic molding equipment developed and manufactured on the basis of absorbing many advantages of foreign flyash brick machine. The feeding system increases the color effect, adopts the material storage material, and the independent foundation of the material storage fights, overcoming the disadvantages of the early liquefaction of concrete, ensuring the quality of the finished product, and the entire process of the output from the product to the product.

Stable quality level

UNIK selects standard steel, cutting the cutting machine, welded by skilled workers, and strictly inspects the quality of the entire production progress to ensure the quality of the entire production progress.All orders will be pre -assembled before the factory spray paint, and air pipes, butterfly valves, cylinders and weight sensors will be pre -installed in the factory.

Advanced electronic components

Similarly, the Siemens electronic components we use in our machines are known for their reliability and stability. These components, including advanced PLCs and other critical subsystems, help ensure that our machines can operate at peak efficiency and quality, no matter the demands of the project or the environment.

Advanced control system

The device, electricity, liquid linkage, PLC control, safe and reliable operation, the main console computer interface operation (Chinese/English menu, LCD touch screen), which can realize the parameter settings of the machine, random signal collection, fault diagnosis analysis,The platform is adjusted to a good working state.

Long life-time mould

The mold material uses high manganese alloy steel. After welding and welding of laser cutting and precision mechanical processing, the overall surface carbon nitrogen penetration is used to solve the heating and annealing after welding, which greatly enhances the wear resistance of the mold. Technological innovation research has continued. Recently, the surface of ordinary steel plate uses buried arc welding technology to combine the surface metallurgy combined with a layer of high -wear -resistant carbides, which can greatly increase its life expectancy several times.



Products parameters

Dimension	5900×2040×2900mm
Pallet Size	1100×950×28-35mm
Vibration Frequency	3800-4500 r/min
Hydraulic Pressure	25 mpa
Vibration Force	90 KN
Cycle time	15-25s
Power	63.45kW
Weight	12800kg



Product	Product size	pcs/pallet	pcs/hour	Image
Hollow block	400x200x200mm	10 PCS	1800PCS
Hollow block	400x150x200mm	12 PCS	2160 PCS
Rectangular paver	200x100x60/80mm	36PCS	8640 PCS
Interlocking paver	225x112x60/80mm	24PCS	5760PCS
Kerbstone	200x300x600mm	3PCS	720PCS



A production line can work only 2-3 people. And the concrete block machine is a multi -purpose model. Through the replacement of the mold, we can produce a variety of water -transmitted bricks, hollow bricks, solid bricks and other products with a variety of shapes and specifications.

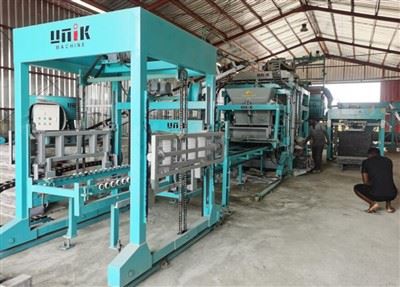

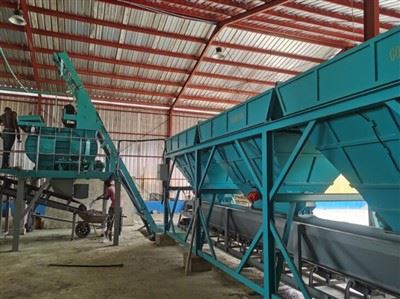

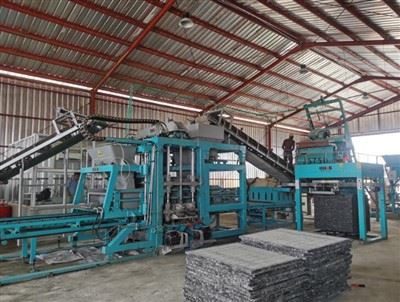

Product Picture

Our factory

Manufacturing

Delivery

workshop

Process

Our company has passed the "ISO9001 Quality Management System" and "EU CE Certification",As Unik Machinery, we have focused all our products on providing unconditional customer satisfaction. We believe that continuous improvement and training of all employees is essential for continuous improvement of their products and systems. Our company aims to improve the product range in the direction of customer suggestions and demands by meeting the needs of our valued customers without sacrificing quality and on time del,very and production, with the service of the Unik Machinery, which is always aiming to increase the product quality and quality in the company.

Based on its own sales network, establish extended services for customers:

1. Assist in the formulation and analysis of customer marketing strategies;

2. Provide timely technical updates and system upgrades;

3. Share new industry information and resource sharing;

4. Provide industry application technical support, participate in and support customer technical innovation;
