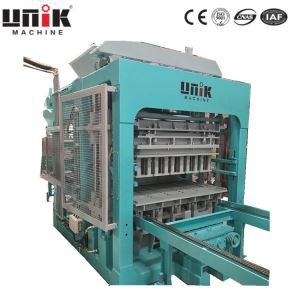

Fully Automatic Cement Block Making Machine

fully automatic cement block making machine

Fully automatic cement block making machine is a machine that produces concrete blocks using various raw materials such as cement, fly ash, sand, gravel, and others. It is designed to produce high-quality blocks in a large quantity with minimal human intervention.

This machine uses a hydraulic system to compress the raw materials into the desired shape and size. It includes various components such as a mixer, conveyor belt, automatic feeders, and pallets. The entire process is automated, from feeding the raw materials to ejecting the finished blocks.

Fully automatic cement block making machines are widely used in the construction industry for producing various types of blocks such as hollow blocks, solid blocks, and paver blocks. They are durable, efficient, and economical machines that greatly increase productivity while saving time, money, and labor costs.



Products Description

This impressive fully automatic cement block making machine is designed to create high-quality cement blocks in large quantities with minimal human intervention. It utilizes advanced technology and precision engineering to streamline the entire block-making process, from mixing the cement to molding and curing the blocks. The machines quickly became popular with builders and contractors because of their ability to make cement blocks faster than traditional methods while reducing labor costs and improving product quality.At the same time, this fully automatic brick making machine is easy to operate and requires minimal maintenance. In particular, they are highly appreciated for their durability, efficiency and cost-effectiveness.

Low energy consumption

The frequency conversion control stacker system is adopted to ensure smooth and safe operation. All production processes from feeding to stacking are normally operated by a fully automatic production line control system until completion. When the automatic brick making machine is put into operation, the main machine is always in operation. However, other engines run intermittently. Intermittent operation ensures low energy consumption.

Advanced electronic components

Similarly, the Siemens electronic components we use in our machines are known for their reliability and stability. These components, including advanced PLCs and other critical subsystems, help ensure that our machines can operate at peak efficiency and quality, no matter the demands of the project or the environment.

Intelligent control system

Fully automatic block making machine is a machine that can produce high quality bricks and paver blocks without human labor All production process is fully automatic and controlled by PLC unit to reach high degree of automation,The whole machine adopts PLC electric control system, and the whole process is controlled. An advanced fault diagnosis device automatically checks and corrects errors.

A very compact structure

The machine features a heavy-duty design and advanced heat-treated high-strength steel. The whole machine and mold are wear-resistant. The advanced technology applied to the machine prolongs the service life.increased production capacity, consistent and uniform block quality



Products parameters

Dimension	3000×1900×3160mm
Pallet Size	1100×740×28-35mm
Vibration Frequency	3800-4500 r/min
Hydraulic Pressure	25 mpa
Vibration Force	68 KN
Cycle time	15-20s
Power	48.53kW
Weight	8200kg



The automatic cement block machine adopts advanced technology to automate the whole process of producing cement blocks, from cement mixing to block forming. The machine works by using a combination of hydraulics and vibrations to compress the cement mixture and shape it into the desired block shape. Additionally, the fully automatic nature of the machine ensures that the blocks produced are of consistent quality, which is critical to the success of any construction project.



Product	Product size	pcs/pallet	pcs/hour	Image
Hollow block	400x200x200mm	8 PCS	1920PCS
Hollow block	400x150x200mm	12 PCS	2160 PCS
Rectangular paver	200x100x60/80mm	36PCS	8640 PCS
Interlocking paver	225x112x60/80mm	25PCS	6000PCS
Kerbstone	200x300x600mm	4PCS	960PCS

Product Picture

Our factory

Manufacturing

Delivery

workshop

Process

When choosing a fully automatic cement block making machine, there are several important factors to consider. First, the machine should be able to produce blocks of the correct size and shape for a particular construction project. In addition, the machine should be able to produce blocks of various strengths and densities to meet the specific requirements of the project.

Other important factors to consider when choosing a fully automatic cement block machine include the overall cost of the machine, maintenance requirements, and safety features. It is important to choose a machine that is not only affordable but also easy to maintain, with readily available replacement parts and a proven track record of reliability. Safety features such as emergency stop buttons and safety guards are also critical to ensuring the safety of operators and other workers on a construction site.

In conclusion, fully automatic cement block making machines are revolutionizing the construction industry by producing high quality cement blocks efficiently and economically. These machines offer many advantages including increased production capacity, consistent and uniform block quality, ease of use and increased safety. When looking for a fully automatic cement block machine, it is important to consider factors such as the machine's capacity, cost, maintenance requirements, and safety features in order to find the best machine for a particular building project.
