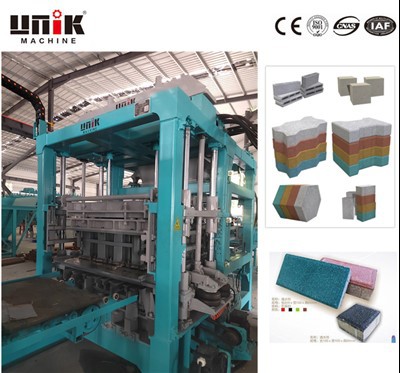

Fully Automatic Interlocking Block Machine

fully automatic interlocking block machine



Fully Automatic Interlocking Block Machine is a machine designed for producing interlocking blocks for various construction purposes. It is a fully automated machine that can produce interlocking blocks with high precision, accuracy, and efficiency. The machine operates using hydraulic pressure, and it can produce different sizes, shapes, and designs of interlocking blocks based on the customer's needs.

The Fully Automatic Interlocking Block Machine is made up of several components, including the main machine, conveyor belt, hydraulic system, and electrical control system. The machine is also equipped with sensors that detect the materials and adjust the pressure accordingly to ensure the blocks' consistency and quality.

The machine is widely used in the construction industry, especially in building walls, walkways, driveways, and pavements. With its high production capacity, the machine can produce a significant number of interlocking blocks within a short period, making it an ideal choice for large construction projects.









Products Description

The fully automatic interlocking block machine is a remarkable technological innovation in the construction industry. It is one of the most advanced block making machines on the market today. The fully automatic interlocking block machine simplifies the block making process through automation and reduces the time required to produce blocks. This means you will be able to make more blocks in less time, increasing your productivity. Our block machines are equipped with state-of-the-art technology that ensures accuracy in block production, reduces waste and minimizes wasted time.With this machine, the process of producing interlocking blocks becomes easier and faster with less waste and fewer resources.The machine is designed to produce interlocking blocks of different shapes, sizes and colours. This feature allows builders to choose from a range of designs and patterns and can create beautiful and unique structures. Builders can now create structures that are not only functional but also beautiful.

Block making process





Before the production of products, all kinds of solid waste aggregates required for production need to be crushed by a crusher, and processed into recycled aggregates that can be used for production. After electronic metering, binders and clean water are added for mixing (mixing The formula must be a scientific formula that has been tested in practice), after being fully stirred and mixed, it is transported to the hopper by the conveyor for loading, and it is formed by vibration or high-pressure extrusion of the main machine of the automatic brick production equipment

Siemens PLC

Siemens PLC has a hardware fault self-detection function, and can send an alarm message in time when a fault occurs. In the application software, the user can also program the fault self-diagnosis program of peripheral devices, so that the circuits and equipment in the system except Siemens PLC can also obtain fault self-diagnosis protection

Intelligent computer control system

The computer control system ensures that each block produced has the same size and the right amount of water and cement mixture, which is essential to produce high quality interlocking blocks.These machines are designed to be easy to use, even for non-technical users. The user interface is intuitive and the machine functions are easy to understand. This feature allows builders to produce interlocking blocks with minimal training and supervision.

A very compact structure

The design of the fully automatic interlocking block machine is also very durable and reliable. using a heavy-duty design and advanced heat-treated high-strength steel. These machines can withstand the rigors of continuous use and last for many years. The investment in a fully automatic interlocking block machine is worth it in the long run as it will provide the builder with years of reliable service.







Products parameters

Dimension	3700×2300×2800mm
Pallet Size	1380×760×28-35mm
Vibration Frequency	3800-4500 r/min
Hydraulic Pressure	25 mpa
Vibration Force	68 KN
Cycle time	15-20s
Power	63.45kW
Weight	11200kg

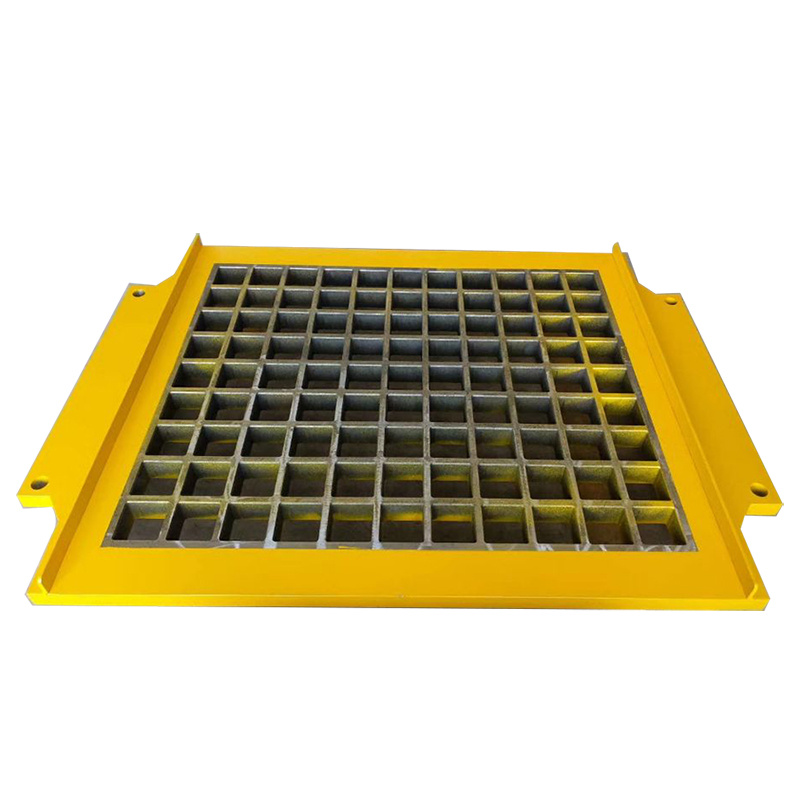

This fully automatick block machine is designed to work 24 hours. it is very fast and has a high production capacity through special servo motors.The block machine can produce different specifications of color Pavers, interlocking pavers, paving blocks, and other concrete blocks by replacing mold. The output table is as follows:

Product	Product size	pcs/pallet	pcs/hour	Image
Hollow block	400x200x200mm	9 PCS	1620PCS
Hollow block	400x150x200mm	12 PCS	2160 PCS
Rectangular paver	200x100x60/80mm	36PCS	8640 PCS
Interlocking paver	225x112x60/80mm	25PCS	6000PCS
Kerbstone	200x300x600mm	4PCS	960PCS

Product Picture

Our factory

Manufacturing

Delivery

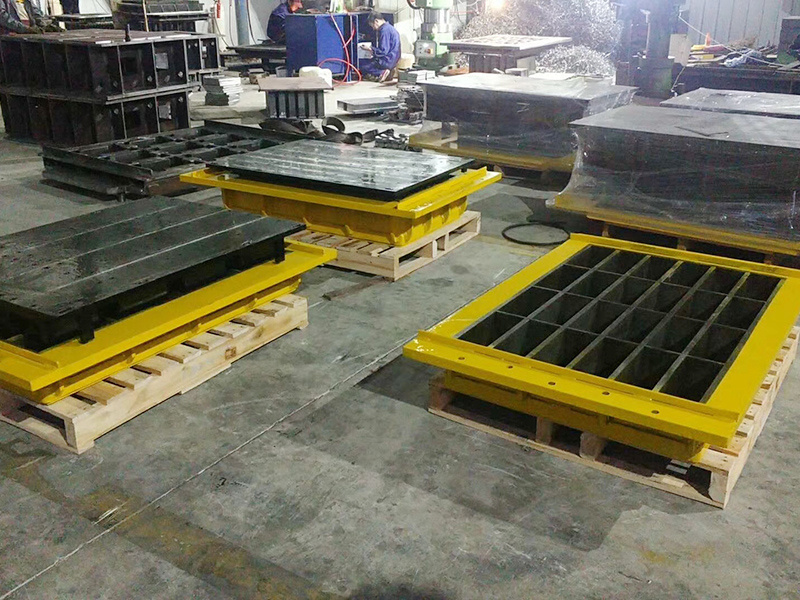

workshop

Process

Why choose unik？

1.UNIK was established in 2010, a large-scale manufacturing enterprise specializing in the production of hydraulic brick machine equipment.UNIK have designed and manufactured various kinds of concrete block production lines producing a wide range of concrete products (blocks,kerbstones, paving stones,slab ect…) to meet all requirements.

2.The company has gathered a large number of management and scientific research elites who are determined to forge ahead and represent the leading level in the industry, and attaches great importance to international technical exchanges and cooperation, absorbs and learns from domestic and foreign successful experiences and advanced technologies, and successfully develops 300-1200T fully automatic hollow block machine.

3.Brand, sales and service network are the key elements of the market position. The well-woven sales and service network establishes and improves the market rapid response mechanism to provide customers with professional and standardized services. Our company has a dedicated after-sales service team with superb advanced technology and strict discipline to provide users with high-quality and fast after-sales service.

4.With a large number of professional and technical personnel, after years of unremitting efforts, we can meet the different investment needs of users. With exquisite technology and excellent quality, it has won several national patents and its products are spread all over the country.

Our fully automatic interlocking block machines are the best choice for anyone looking for a high quality, sustainable and efficient block production line. Our machines deliver superior block quality compared to traditional block machines, are user friendly and offer excellent after sales support. Additionally, it promotes sustainable building practices by using less concrete and contributing to the environment.The machine is much more productive than manual block methods and can produce large quantities of blocks in less time. This feature makes the fully automatic interlocking block machine ideal for large construction projects.So, if you are looking for an efficient and environmentally friendly solution to your block production needs, our fully automatic interlocking block machines are the right choice for you.
