Hydraulic Brick Making Machine

Hydraulic Brick Making Machine is a type of machine that uses hydraulic pressure to form bricks from soil, sand, and cement. These machines are used for industrial, commercial, and residential construction purposes. They make use of hydraulic cylinders and motors to compress the raw materials and produce compact and high-quality bricks. This method of brick making is known for its high efficiency and low maintenance. The bricks produced by these machines are of uniform size and shape, making them suitable for use in building construction projects. These machines are available in different sizes and specifications to cater to the specific needs of the customers.

Hydraulic Brick Making Machine





Hydraulic Brick Making Machine is a type of machine that uses hydraulic pressure to form bricks from soil, sand, and cement. These machines are used for industrial, commercial, and residential construction purposes. They make use of hydraulic cylinders and motors to compress the raw materials and produce compact and high-quality bricks. This method of brick making is known for its high efficiency and low maintenance. The bricks produced by these machines are of uniform size and shape, making them suitable for use in building construction projects. These machines are available in different sizes and specifications to cater to the specific needs of the customers.

Fully automatic hydraulic brick machine has large countertops and high production efficiency. UNIK QT9-15 type can be suppressed 55 standard bricks each time, and annual output is up to 60 million, with significant economic benefits.The mold of automatic cement brick machine can be formed by floating and pressing. Its adobe molding process is good, greatly improving the density of adobe, reducing the common breakage and cracking of other brick machines when they are demolding .The suppression and return travel of fully automatic cement brick machine motor beam take proportional control, and can regulate with  stepless speed, its press mocement is smooth, soft, without big impact. Suppression and return speed have convenient adjustment, and it is easy to suppress special-shaped brick, hollow brick and other products with special requirements.

Main Features:

1.Reasonable vibration distribution: through the stripping cylinder to lock the mold box on the vibration table, mold combined table for vibratio

2.Siemens motor:Ensure continuous smooth operation of equipment, reduce maintenance costs: high efficiency and energy saving

3.Yuken valve:blocking leakage, internal leakage easily controlled, safe to use

4.Scheider electric parts:compact and easy to install, in line with international standards,Improve product performance and product safety


Hydraulic Brick Making Machine

Technical specification:

Main Dimension(L*W*H)

3700*2300*2800mm

Useful Moulding Area

1280*660*40~220mm

Pallet size (L*W*H)

1380*740*25~40mm

Pressure Rating

12~25Mpa

Vibration

60~95KN

Vibration Frequency

2800~4800r/min

Cycle time

13-18s

Power

48.5kW

Gross weight

11.5T

 Hydraulic Brick Making Machine

Hydraulic brick making machine are able to apply in fully automatic block production line, is made up of batch station, concrete mixer, belt conveyor,automatic stacker and forklift. the fresh brick will be came out of brick machine and transported to stacker by block conveyor,when the splints come to some height, worker should carry the bricks to the curing area.

Hydraulic Brick Making Machine

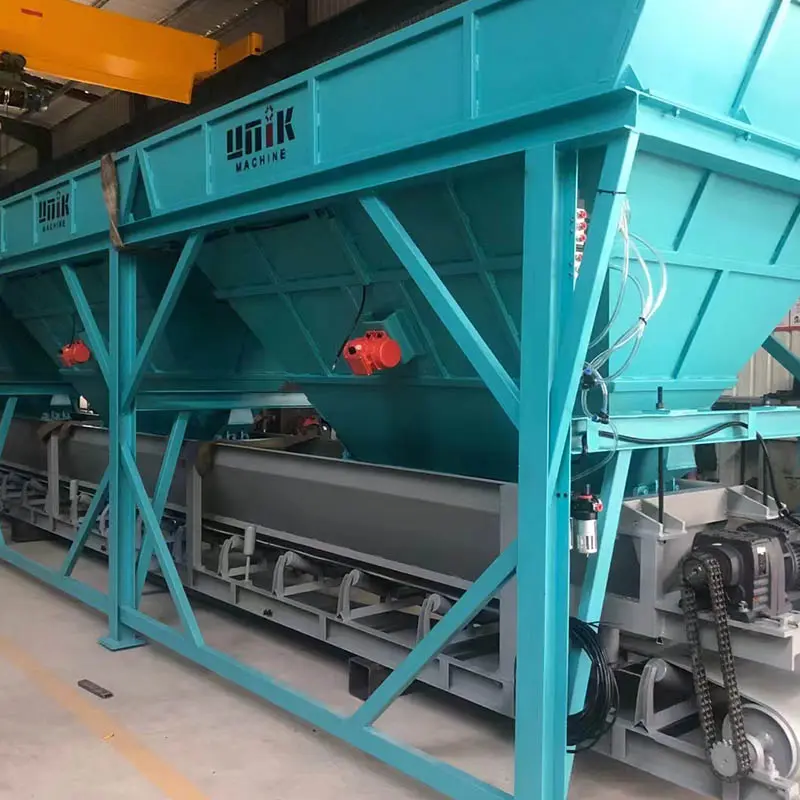

1.Batching station

2.JS Compulsory Mixer

3.Cement silo

4.screw conveyor

5.Cement scale

6.Conveyor belt

7.QT9-15 block machine

8.Automatic stacker

Hydraulic Brick Making Machine
