Interlock Hollow Block Making Machine

Interlock Hollow Block Making Machine

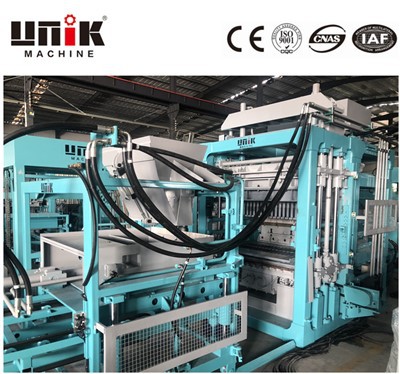

 Interlocking hollow block making machine is a specific type of block making machine used for the production of interlocking hollow bricks. These machines are designed to produce high-quality interlocking hollow blocks that are widely used in construction sites for building walls, fences, and pavements. The machine is made up of a hydraulic system that applies pressure to the raw materials such as cement, sand, and gravel, which are then molded into the desired shapes and sizes. Interlocking machines are known for their ability to produce blocks with high precision and uniformity. They are also efficient and cost-effective compared to traditional block making machines.





Interlock Hollow Block Making Machine Products Description

Interlock Hollow Block Making Machine is a machine for producing interlocking hollow blocks for construction. These machines are used to produce blocks that can be easily joined together using interlocking technology. One of the benefits of interlocking hollow blocks is that these blocks are structurally more stable and durable than regular blocks. The interlocking hollow block making machine is also designed with a hydraulic system that operates under high pressure, ensuring that the blocks are compacted efficiently. The hydraulic motor has a high torque capacity, ensuring that the machine will run efficiently for long periods of time even under high loads.
The design of the fully automatic brick making machine fully considers the wide applicability of raw materials, and can effectively use construction waste, fly ash, slag and other industrial wastes and wastes, and use these raw materials to produce ecological permeable bricks, colored pavement bricks, standard bricks, Porous bricks, land rocks, lawn bricks, bricks for airport terminals, etc.The products produced have the advantages of good quality, low cost and good weather resistance.

Good economic benefit and small investment

The establishment of a production line of colored paving bricks with an annual output of 60,000 square meters to 120,000 square meters, small equipment investment, and mass production capacity in a short period of time from equipment installation and commissioning, worker training

Siemens PLC

Siemens PLC can integrate various sensors, switches and other devices to monitor and regulate the operation of the block machine. This helps increase productivity, reduce waste and improve product quality.They allow precise control of the block machine system, optimizing its performance and efficiency. Siemens PLC is also equipped with a user-friendly interface and advanced features that make them easy to set up and maintain.

Smart control system


The machine is equipped with high-end sensors and computerized controls that enable precise operation and accuracy in product dimensions. This ensures that the blocks produced are of consistent size and shape, reducing wastage and maximizing yield.

A very compact structure

Another technical advantage of the interlock hollow block making machine is its modular design. The machine is configured with interchangeable components, which makes it easy to upgrade or replace any part of the system when required. This allows the user to keep the machine in good working condition with minimal downtime.







Interlock Hollow Block Making Machine Products parameters

Dimension	3100×1680×2160mm
Pallet Size	850×680×20-25mm
Vibration Frequency	3800-4500 r/min
Hydraulic Pressure	25 mpa
Vibration Force	68 KN
Cycle time	15-20s
Power	41.53kW
Weight	7400kg

The manufacture of concrete blocks begins with sourcing the materials required for the mix. Cement is the binding agent used in the production process. It is produced by grinding clinker, a mixture of calcium silicates, and gypsum. The aggregates used in the mix include sand, crushed stone, and gravel. These materials are sourced from quarries, sand pits, and mining sites. Water is also a key ingredient, as it plays a significant role in the curing and hardening of the concrete.The interlock hollow block making machine is highly versatile, allowing for the production of a range of block sizes and shapes. The machine is also able to produce colored and textured blocks, which can be used for decorative purposes. Overall, the interlock hollow block making machine is an excellent investment for businesses looking to increase productivity, reduce labor costs, and produce high-quality blocks.

Product	Product size	pcs/pallet	pcs/hour	Image
Hollow block	400x200x200mm	6 PCS	10800PCS
Hollow block	400x150x200mm	8 PCS	1440 PCS
Rectangular paver	200x100x60/80mm	21PCS	5040 PCS
Interlocking paver	225x112x60/80mm	20PCS	3600PCS
Kerbstone	200x300x600mm	2PCS	480PCS

Product Picture

Our factory

Manufacturing

Delivery

workshop

Process

Fujian Unik Machinery Technology Co.,Ltd has been a leading manufacturer of interlocking and hollow block making machines since 2012. Headquartered in China, the company has a team of experienced engineers and technicians who use the latest technology and equipment.

We offer a wide range of block making machines for every application, including interlocking block machines, hollow block machines, paving block machines and more. All of their machines are durable and designed to be user-friendly and efficient, making them ideal for both small and large productions.

The company is committed to providing the best possible service and support to its customers and their team is always ready to provide technical assistance and advice. They also offer customers a comprehensive training program to ensure they have the skills and knowledge needed to operate and maintain their machines.

With years of industry experience, commitment to quality, and exceptional customer service, we have established ourselves as a trusted and reliable manufacturer of interlocking and hollow block making machines.

Interlocking hollow block machines revolutionized the construction industry and the blocks produced by these machines grew in popularity. The blocks produced by these machines are not only strong and durable, but also environmentally friendly. Interlocking hollow blocks use less cement, reducing the carbon footprint of the construction industry.
