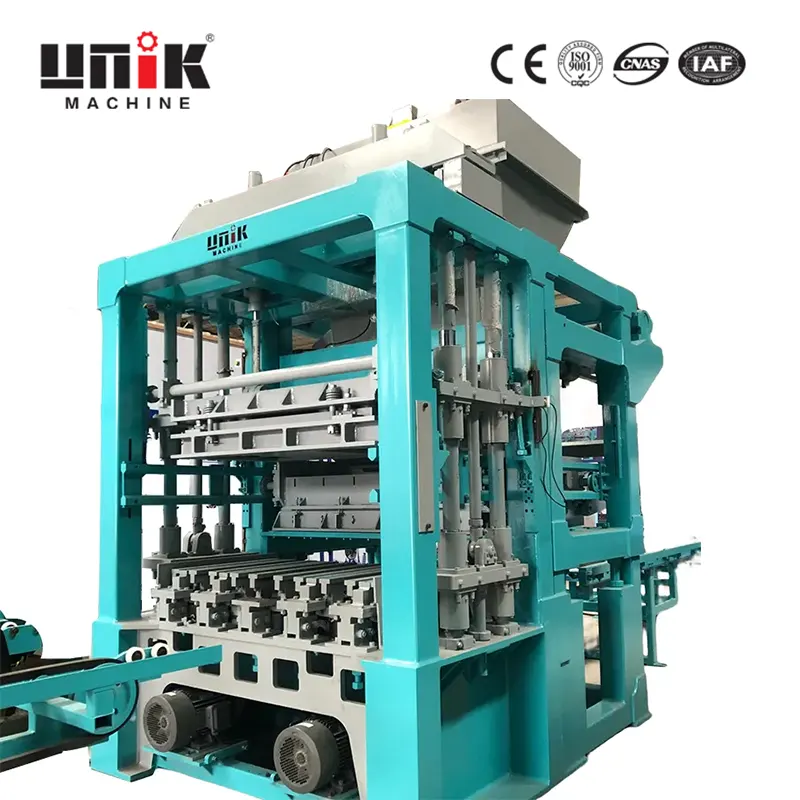

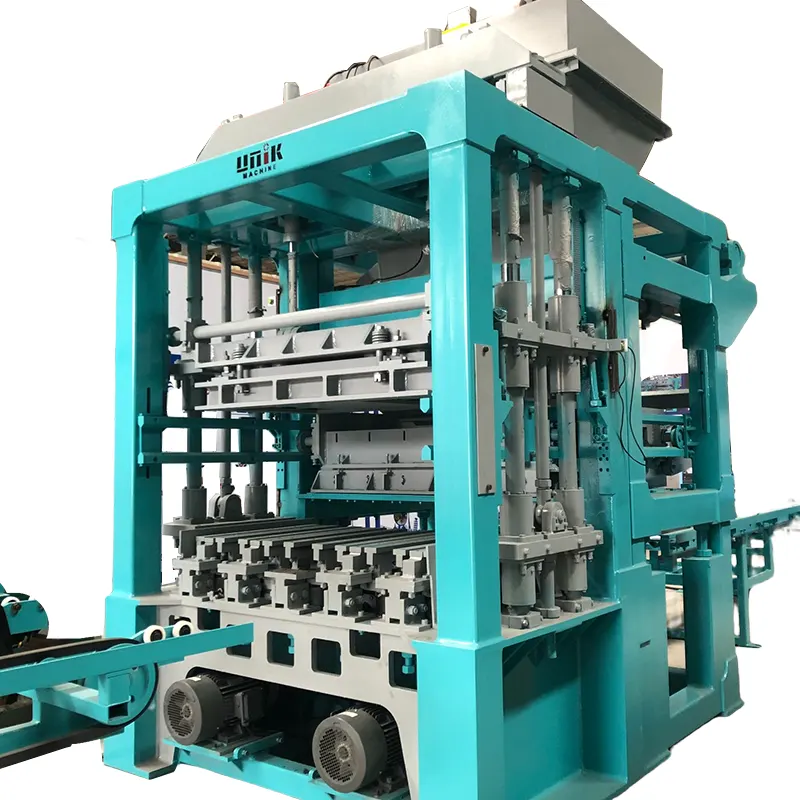

Interlocking Block Machine

Model:UNT1200A

Interlocking block machine is a type of brick making machine that produces high quality interlocking blocks. Interlocking blocks are made by pressing two or more blocks together in a pattern, creating a lock that holds the blocks together. Interlocking block machines are designed to produce interlocking blocks of different sizes, shapes, and colors. They use hydraulic pressure to compress the mixture of soil, sand, cement, and water that is poured into the machine, and then they mold and cut the blocks into shape.

Send Inquiry

Product Description

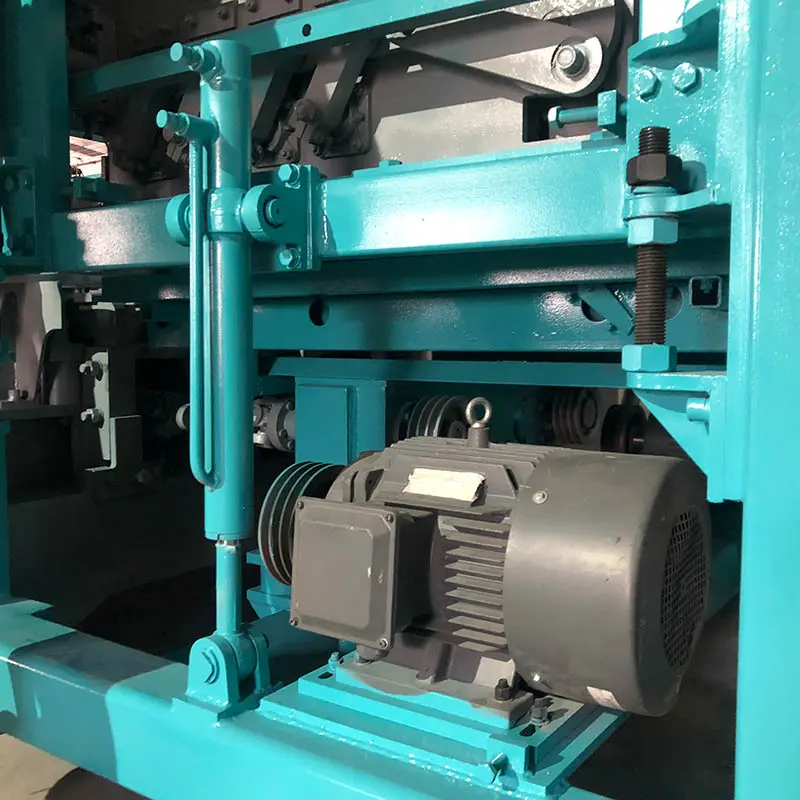

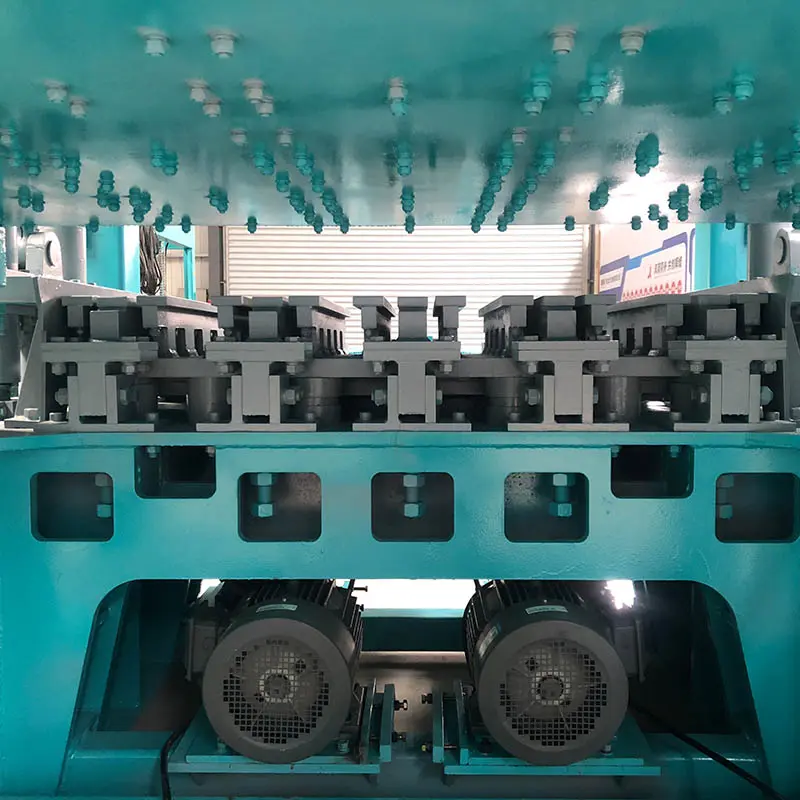

Our UNT1200A Interlocking Block Machine can produce different kind of hollow blocks, paving blocks, solid blocks, curbstone blocks and so on only by changing the mold, it can produce 69000 pieces of rectangular paver in an eight-hour shift, is built with an extremely heavy duty frame structure.able to be come with 4 motors vibration system with electronic synchronization to ensure a extend type high efficient vibrotechnique, the concrete product will be high strength and density.

Interlocking block machines are designed to produce interlocking blocks of different sizes, shapes, and colors. They use hydraulic pressure to compress the mixture of soil, sand, cement, and water that is poured into the machine, and then they mold and cut the blocks into shape.

These machines are commonly used in the construction industry for building walls, pavements, and other structures. They are highly efficient and produce blocks quickly, which saves time and money in construction projects.

Interlocking block machines come in different sizes and capacities to meet the needs of different construction projects. They are also available in manual, semi-automatic, and fully automatic models, depending on the level of automation required.

Interlocking Block Machine Main features:

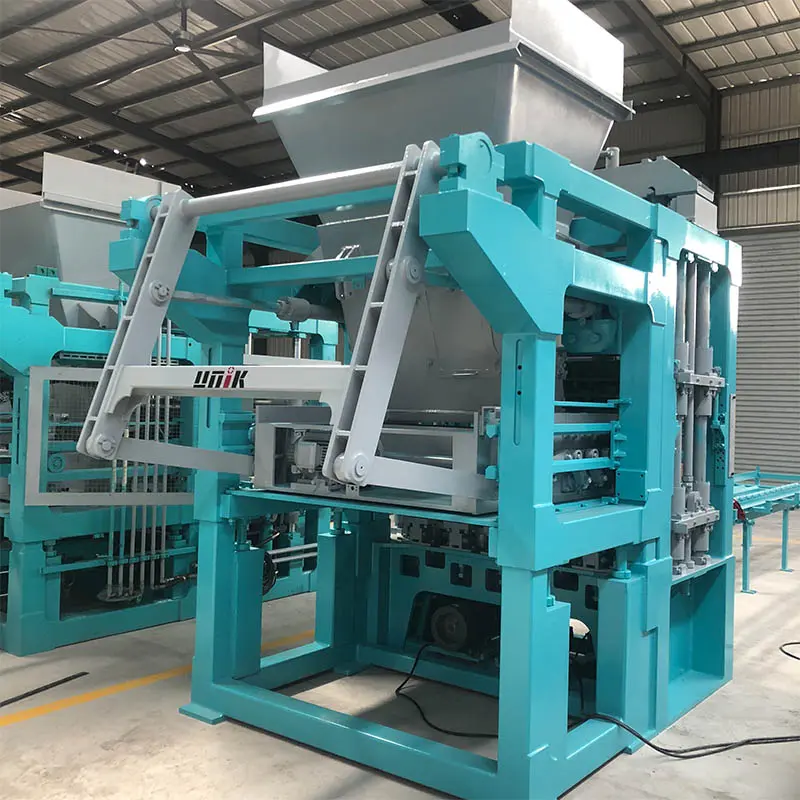

1.The base coarse mix and face mix hopper (optional) and feed boxes are mounted in sub frames, which is vertically adjustable for different product heights. After adjustment by means of a mechanical clamping this frame is bolted to the main frame.
2.The fresh concrete hoppers (base coarse mix and face mix) are located 90 degrees of the conveying direction and discharge is arranged directly into the feedbox.
3.Control system: It adopts intelligent control system of Fault diagnosis. There are dozens of operating modes of computer memory, which will greatly help saving time and money trouble shooting any machine operational problems. The control appliances are all international brands such as Japan Omron, ABB and Schneider.
4.The machinery can be offered with many different handling systems to improve production efficiency depending on your budget, included Gantry-Type Palletiser,independent cuber, Transfer and Finger Car and Elevator and Lowerator for Pallets

Interlocking Block Machine Technical specifications:

Overall dimension	3550×2250×3285mm	Vibration method	Synchronous mode of table & mould
Pallet size	1400×760×30-40mm	Vibration frequency	50-70Hz
Working area	1370×720mm	Machine power	63.45kW
Machine weight	12800kg	Cycle time	15s-20s depending on the product size

Interlocking Block Machine Production Capacity

Specification of products (mm)		Number of blocks per pallet	Pieces/ hour	Pieces/8 hours
Block	400×200×200	9	2,160	17,280
Hollow Block	400×100×200	18	3,240	25,920
Interlock Paver	225×112.5×60	25	6,000	48,000
Rectangular Paver	200×100×60/80	36	8,640	69,120
