Interlocking brick machines are machines that produce interlocking bricks by pressing clay or cement mixture into a specific pattern or shape. These machines use hydraulic pressure and produce interlocking bricks with excellent strength, durability, and uniformity. Interlocking bricks are a type of building material that is commonly used for construction purposes in various countries, especially in developing countries. These bricks are used for constructing walls, pathways, pavements, and other similar structures. The interlocking design of these bricks helps to reduce the use of cement and sand used for mortar joints, leading to cost savings and eco-friendliness.

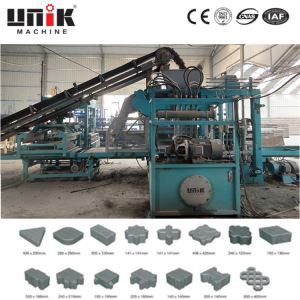

Our QT10-15 Interlocking Brick Machine has been applied the innovative engineering solutions that ensure effective and high production also keep the costs at a reasonable level.The base coarse mix and face mix hopper(optional)and auto feeder are mounted in sub frames,which is vertically adjustable for different product heights.After adjustment by means of a mechanical clamping this frame is bolted to the main frame.
| Main Features： |
|
|
|
| the imported PLC intelligent control, using German, TaiwJapan imported hydraulic components, technical parameters can be adjusted at any time | Utilizes Siemens motor to ensure a extend type high efficient vibrotechnique,the concrete product will be high strength and density caused by adjusted running speed |
|
|
|
| The rapid use of 360-degree rotation When the machine is mishandled, it can promptly and accurately inform the user of the fault and processing method, re-forced fabric, low-frequency feeding, high-frequency vibration, completely solve the feeding problem, produce a variety of products, can achieve the ideal molding effect achieves high density and high strength. | All movements,time functions,positioning aims and vibrating parameters can be adjusted as variables in easy and safe manner via operator panel. |
1. Batching station 2. Concrete Mixer 3.Cement silo 4. Screw conveyor
5.Cement scale 6.Belt conveyor 7.Block machine 8.Automatic stacker
| Specification&Capacity: |
|
Dimension |
3700×2100×3090mm |
|
Pallet Size |
1100×950×25~40mm |
|
Vibration Frequency |
3800-4500 r/min |
|
Hydraulic Pressure |
25 mpa |
|
Vibration Force |
68 KN |
|
Cycle time |
15-20s |
|
Power |
45.38kW |
|
Weight |
12800KG |
Capacity
|
Product size(mm) |
Pcs./Pallet |
Pcs./Hour |
|
390*190*190 |
10 |
1800 |
|
390*140*190 |
20 |
3600 |
|
200*100*60 |
36 |
5184 |
|
225*112.5*60 |
28 |
4032 |
Our company has passed the "ISO9001 Quality Management System" and "EU CE Certification", with independent intellectual property rights and dozens of national patents. The product research and development project is subordinated to the industrialization of new building materials and equipment for the comprehensive utilization of industrial solid waste in the low carbon, energy saving and environmental protection fields supported by the central government.
Our company's leading series of products are new concrete block complete equipment production lines, and the technical performance of the whole machine is in the leading level in the industry.
Its various technical solutions are available for users to choose from, and many “tailor-made” excellent solutions have been successfully implemented, achieving a high-end customer base with efficient and professional production of new energy-saving and environmentally-friendly concrete products.
