Automatic block machine is a type of industrial machinery used for the automated production of concrete blocks. These machines work by using a mixture of cement, water, and other materials to form concrete blocks of various shapes and sizes. The machine can produce blocks rapidly and continuously, with high levels of precision and consistency in terms of size, shape, and quality. Automatic block machines are commonly used in the construction industry for the production of building materials such as bricks, blocks, pavers, and curbstones. They can also be used for other applications, such as the production of decorative concrete blocks or retaining walls.
A Automatic block machine is a device that is used to produce hollow or solid concrete blocks for buildings, pavements, and other construction purposes. The machine is usually operated by mixing cement, sand, and other aggregates with water, which are then fed into a machine that shapes the mixture into blocks of different sizes and shapes. Some machines use molds to produce specific patterns and designs on the surface of the blocks. The blocks may then be cured in a special environment before being transported to the construction site. The machine can be electrically or manually operated and is a cost-effective solution for large-scale production of concrete blocks.
The mold operation adopts four-bar guiding mode, with the ultra-long copper sleeve to ensure the precise movement of the indenter and the mold box; the balance system consisting of the rack, the gear and the balance shaft ensures the balance between the indenter and the mold box. Degree and coordination degree; the parallel bar arm walking mode improves the running speed of the feeder, and the rotating convection forced feeding mode shortens the feeding time and ensures the compactness of the product.
Adopting German frequency conversion technology, the main engine frequency conversion control, the vibration exciter assembly adopts oil immersion type, which improves the high-speed running load, so that the concrete is fully liquefied and exhausted instantaneously. The life of the bearing has more than doubled. The effect fully embodies the five advantages of the synchronization, soft start function of the vibrator assembly, the improvement of product compactness, more power saving and fast forming.
1) High efficiency: The machine improves productivity by producing large quantities of blocks in a short period of time.
2) Cost-effective: The long-term cost savings are prominent due to the machine enabling the production of durable and high-quality blocks with consistent dimensions and strength.
3) Versatile: The machine can produce various types of blocks for different applications, such as paving, curbstone, hollow, solid, and interlocking blocks.
4) Consistency: The machine produces uniform blocks with precise measurements, reducing the need for manual intervention and increasing quality.
5) Eco-friendly: The use of concrete blocks reduces the need for trees to be cut for product production which makes it environmentally friendly.
6) The machine is easy to operate: It requires minimal training to operate and is user-friendly, saving time and reducing errors.
7) Durability: The concrete blocks made from this machine are strong and durable, making them ideal for use in heavy-duty applications such as building structures and infrastructure projects.
| Dimension | 3070×1930×2460mm |
| Pallet Size |
1100×680×28-35mm |
| Vibration Frequency | 3800-4500 r/min |
| Hydraulic Pressure | 25 mpa |
| Vibration Force | 68 KN |
| Cycle time | 15-20s |
| Power | 48.53kW |
| Weight | 7400kg |
| Product | Product size | pcs/pallet | pcs/hour | Image |
| Hollow block | 400x200x200mm | 7.5PCS | 1350PCS |
|
| Hollow block | 400x150x200mm | 8PCS | 1440PCS |
|

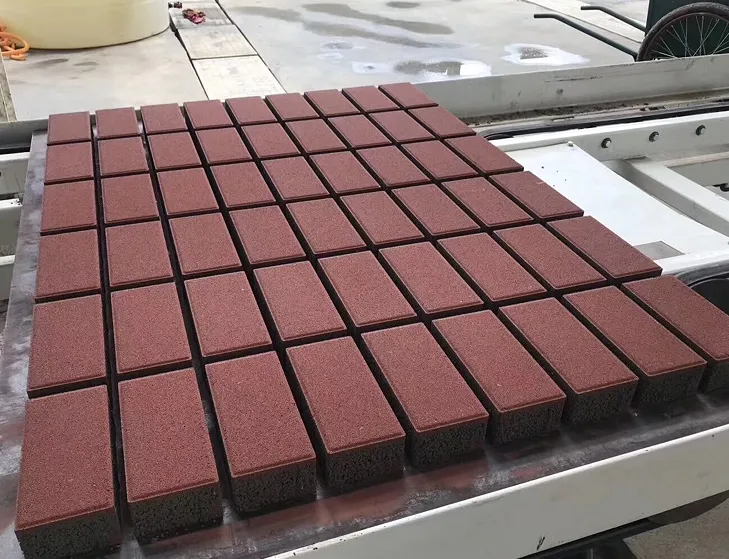

| Rectangular paver | 200x100x60/80mm | 27PCS | 6480PCS |
|
| Interlocking paver | 225x112x60/80mm | 20PCS | 4800PCS |
|
| Kerbstone | 200x300x600mm | 2PCS | 480PCS |
|
Manufacturing
Delivery
workshop
Process
Before sale:
(1) Selection of equipment model.
(2) Design and manufacture products according to customers' special requirements.
(3) Train technical personnel for customers.
(4) The company sends engineering and technical personnel to the user site for free to plan the site, design the installation process and the program for the user.
On sale:
(1) Product acceptance.
(2) Assist clients in drawing up construction plans.
After sale:
(1) Freely assign dedicated after-sales service personnel to arrive on-site to guide customers in installation and commissioning.
(2) Equipment installation and debugging.
(3) On-site training of operators.
(4) After the complete set of equipment is installed, leave 1-2 full-time technicians to assist the customer in on-site production for free for one month, until the customer is satisfied.
