Automatic brick manufacturing machine is a mechanical equipment that is used for producing bricks automatically without the need for manual intervention. It comprises of various components such as a raw material feeder, mixer, conveyor, hydraulic press, and brick extractor. The machine operates by receiving the raw materials such as clay, sand, cement, and water into a mixing chamber, which is then processed through a hydraulic press and molded into the desired shape and size of bricks. The bricks are then extracted and placed in a drying chamber before being fired in a kiln for their final formation. Automatic brick manufacturing machine reduces manual labor, increases production efficiency, and ensures consistent quality of the bricks produced, making it an ideal choice for modern brick making companies.
Automatic brick manufacturing machine is a mechanical equipment that is used for producing bricks automatically without the need for manual intervention. It comprises of various components such as a raw material feeder, mixer, conveyor, hydraulic press, and brick extractor. The machine operates by receiving the raw materials such as clay, sand, cement, and water into a mixing chamber, which is then processed through a hydraulic press and molded into the desired shape and size of bricks. The bricks are then extracted and placed in a drying chamber before being fired in a kiln for their final formation. Automatic brick manufacturing machine reduces manual labor, increases production efficiency, and ensures consistent quality of the bricks produced, making it an ideal choice for modern brick making companies.

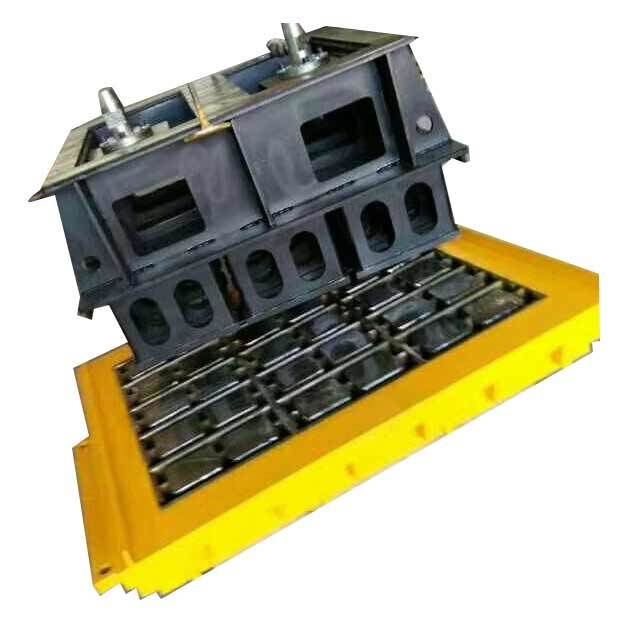

1. Changing the mold can produce kerbstone, roadsides, river courses, slope protection, squares, dock bricks, thermal insulation blocks, landscape blocks, wall bricks, grass-planting bricks, etc., with one machine for multiple purposes.
2. Fixed vibration platform, faster die change speed. The suspension vibration system is used to effectively extend the service life of the mold and reduce the loss of equipment due to vibration.
3. Low-frequency feeding and high-frequency vibration, table mold pressing and vibration make the concrete fully liquefied and exhausted in two to three seconds, suitable for the production of high-strength, high-density blocks.
4. Imported electrical appliances and hydraulic components make the control and hydraulic systems basically operate without barriers. Realize man-machine dialogue, automatic operation; automatic analysis of product density, automatic adjustment of the feeding ratio, automatic diagnosis of mechanical faults and other intelligent control systems.
Specification of products(mm)
Number of blocks per pallet
Pieces/1 hour
Pieces/8hours
Block
400×200×200
6
1,400
11,520
Hollow Brick
240×115×90
15
3,600
28,800

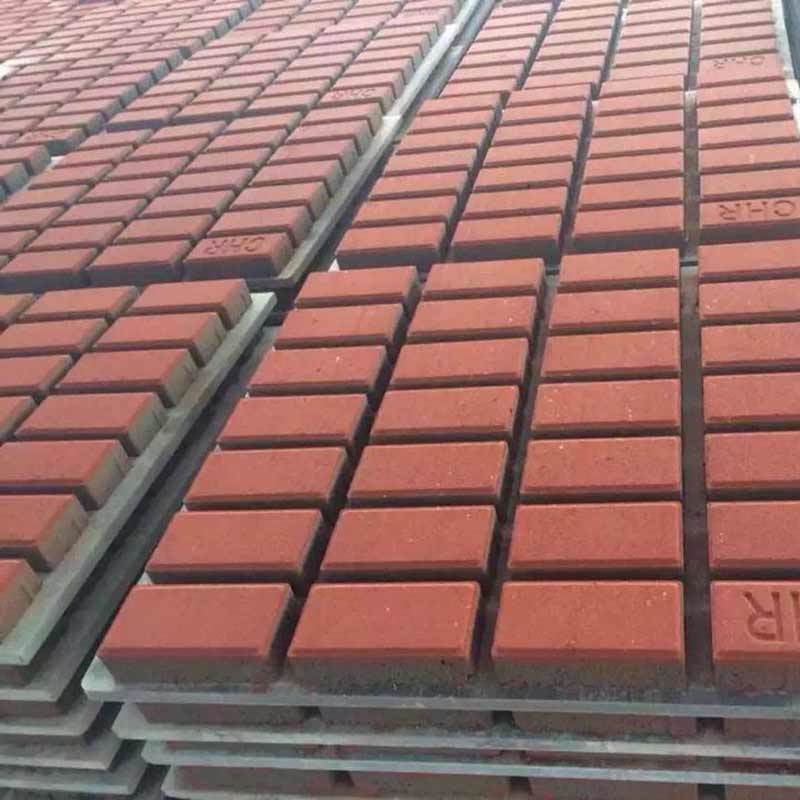

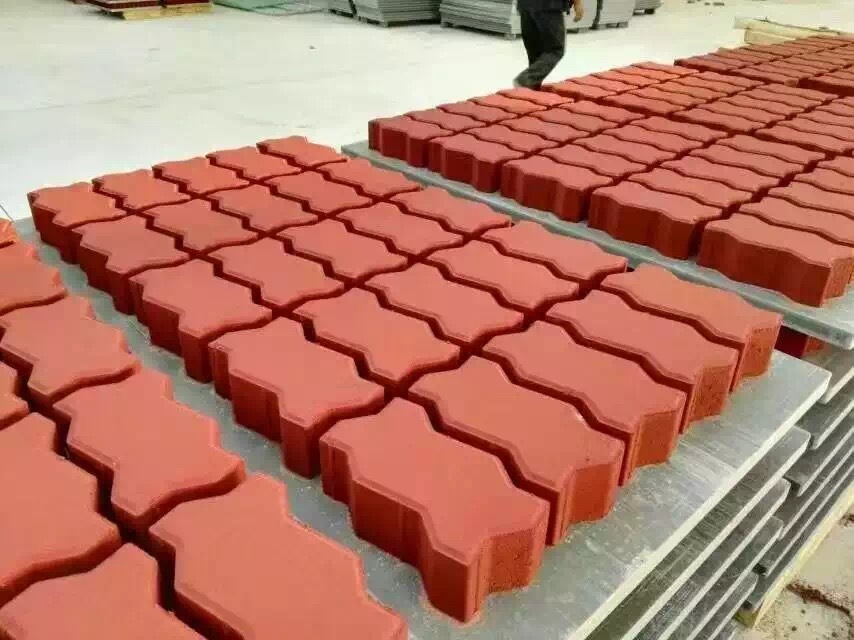

Paving Brick
225×112.5×60
15
3,600
28,800
Standard Brick
240×115×53
30
7,200
57,600
Production process:

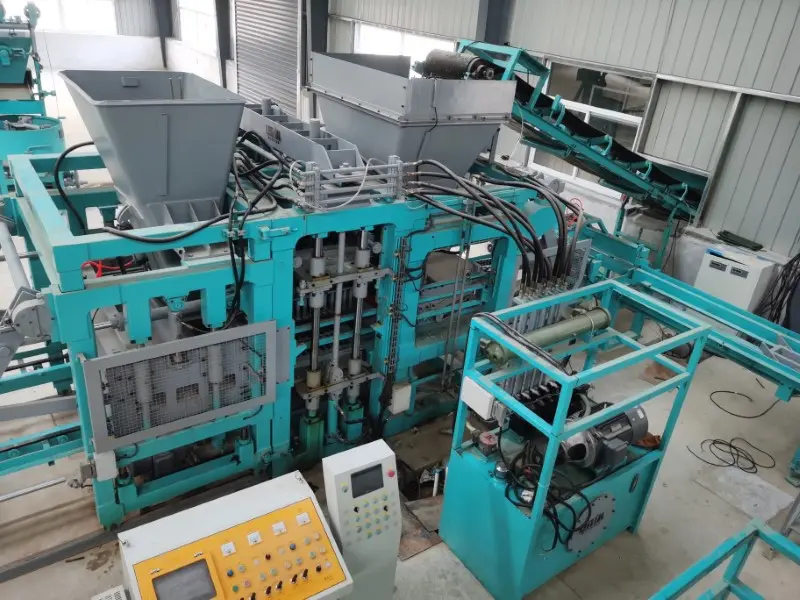

The mixed materials are stored in the hopper, and the materials needed for different bricks are transferred to the feeding trolley through time control. The feeding trolley is sent to the top of the mold through the oil cylinder, and the pressure head is pressed down and the vibration rapid prototyping and plate feeding machine are started at the same time. Push the green blocks to block conveyor, and the whole production process is controlled automatically
Service,delivery and shipping:
We will deliver concrete block machine within 20-25 days after receiving deposit
Before sale:
(1) Selection of equipment model.
(2) Design and manufacture products according to customers' special requirements.
(3) Train technical personnel for customers.
(4) The company sends engineering and technical personnel to the user site for free to plan the site, design the installation process and the program for the user.
On sale:
(1) Product acceptance.
(2) Assist clients in drawing up construction plans.
After sale:
(1) Freely assign dedicated after-sales service personnel to arrive on-site to guide customers in installation and commissioning.
(2) Equipment installation and debugging.
(3) On-site training of operators.
(4) After the complete set of equipment is installed, leave 1-2 full-time technicians to assist the customer in on-site production for free for one month, until the customer is satisfied.
