Automatic Interlocking Block Machine

Automatic Interlocking Block Machine

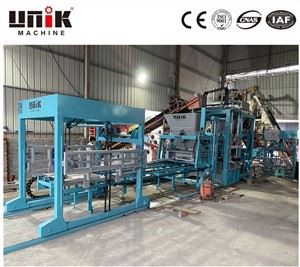

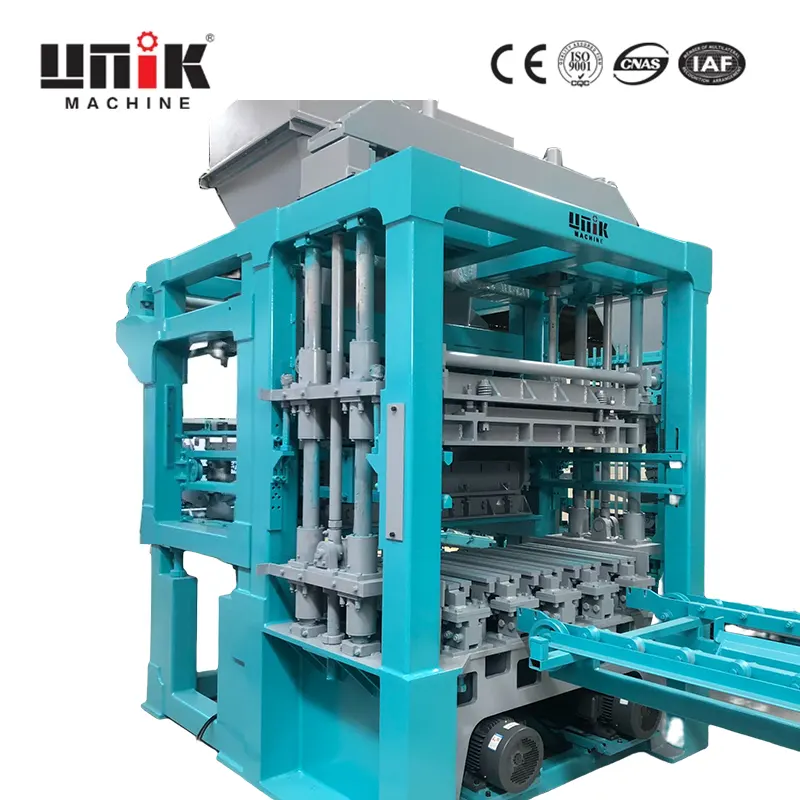

 The Automatic Interlocking Block Machine is a type of construction machinery used for producing interlocking blocks for building walls, pavements, and other types of structures. It operates automatically and uses hydraulic pressure to compress the raw materials such as soil, cement, and sand to produce high-quality interlocking blocks. The machine can produce different sizes and shapes of blocks depending on the mold used. It is designed with advanced technology to reduce labor costs and increase productivity. The machine is suitable for use in both urban and rural areas and is environmentally friendly

Through technological upgrading, the servo system is the mainstay. The whole set of Automatic Interlocking Block Machine has the characteristics of exquisite design, large size and performance design with energy saving and high degree of automation; the mechanical, electrical and hydraulic integrated system adopts high-quality international brand components. Make the automatic operation of the production line stable and smooth.

Automatic Interlocking Block Machine Technical specification:

Automatic Interlocking Block Machine Main features:

1. Efficient servo vibration: Adopt dual servo motors with forced synchronization mechanism, fast response speed, low noise, good synchronization, and can set molding parameters according to different brick type requirements, and the molding speed is fast.

2. Each servo motor is an independent production unit, no mechanical synchronization device is required, and it is easy to maintain.

3. The hydraulic system is equipped with a cooling system, which can ensure the temperature and viscosity of the oil to make the entire hydraulic system more stable and reliable. The advanced oil filtering system can better ensure the service life of the hydraulic components and the stability of the hydraulic system. Imported computer electrical seals, hydraulic components use proportional valves with high dynamic performance to precisely control the movements of key components.

4.The material feeding device rotates to multi-axis through the directional feeding mechanism, or reciprocates the arch-breaking , The implementation of pre-vibration feeding, the molding cycle is shortened, the production efficiency is improved, the block quality is dense, the strength is high, and the size is accurate.

6. The electrical system is controlled by programmable logic controller (PLC), equipped with data input and output devices, and the control system includes safety logic control and fault diagnosis system. The hydraulic control system is composed of a large-capacity oil tank body automatic pressure regulating variable system, a high and low pressure control system, and a synchronous demoulding device. , easy to operate, low failure rate

Packaging & Shipping

Professional packaging & Shipping service

when the block making machine is ready to be shipped out, our company will package it very carefully. Also we promise there will be no damage when the brick making machine arrive at the port.The normal package is wooden box, all are exported standard packing,also we used to use PE film for packing according to customer's special requirement.

Our company has passed the "ISO9001 Quality Management System" and "EU CE Certification", with independent intellectual property rights and dozens of national patents. The product research and development project is subordinated to the industrialization of new building materials and equipment for the comprehensive utilization of industrial solid waste in the low carbon, energy saving and environmental protection fields supported by the central government.
