Automatic Interlocking Brick Making Machine

Automatic Interlocking Brick Making Machine Technical Specification : Capacity: The Automatic Interlocking Brick Making Machine with simple elevator is made up of batching station,mixer belt conveyor,interlocking brick making machine and automatic stacker.the green blocks came out of brick making machine will...

Automatic Interlocking Brick Making Machine


An automatic interlocking brick making machine is a type of equipment used in the construction industry for producing interlocking clay or concrete bricks. It is designed to automate the block-making process, improving efficiency and reducing labor costs.

The machine works by mixing cement/sand or clay and water in a mixing system, which then transfers the mixture to the molds. Molded bricks are then compressed into the desired shape of the interlocking brick using hydraulic pressure. The bricks can then be removed from the mold and stacked for curing.

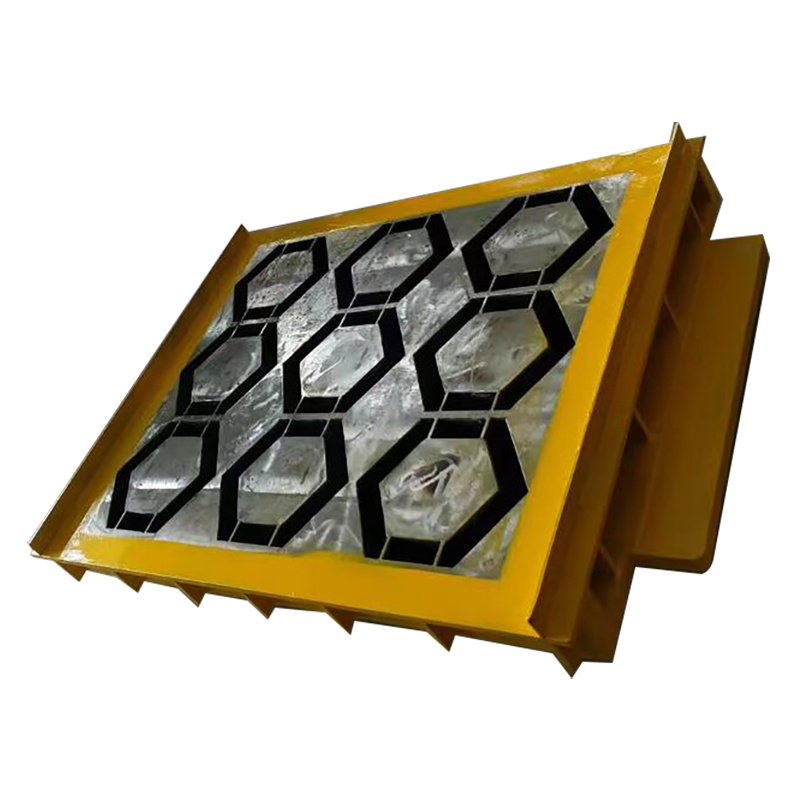

The interlocking brick making machine typically consists of several components, including a conveyor belt, a mixer, a feed hopper, hydraulic system, and a set of molds. The molds used can be customized to create different sizes and shapes of interlocking bricks. The machine is also available in different sizes, with larger machines suitable for higher-volume production, while smaller machines are ideal for smaller, low-volume production.

Interlocking bricks produced by this machine are known for their beauty, strength and durability, making them a popular choice in the construction industry for interlock pavement, sidewalks and driveways. Each brick is designed to fit together precisely, creating a strong and durable surface. Interlocking bricks can also be made in different colors, providing a wide range of options for decorative outdoor surfaces.

The advantages of using an automatic interlocking brick making machine include increased production efficiency, consistent product quality, and reduced labor costs. Additionally, this machine is easy to operate and maintain, making it an ideal choice for individuals and companies in the construction industry.



Owing to more than 10 years ceaselessly developing and innovating, interlocking brick making machine can achieve multiple pressurization and exhaust control, so that the air contained in the powder can smoothly discharge in the suppression process, the brick has high strength and not easy to produce cracks, low shrinkage and high product quality.the hydraulic system  has high reliability, excellent performance, easy to maintain, has the following characteristics:
a. hydraulic components and seals selected from international brands, with long service life and high reliability.
b. built-in supercharger, with novel structure. Its main cylinder has high supercharged speed and good effect.
c. the use of closed, fully filtered hydraulic system, can effectively control pollution, improve operational reliability and reduce operating costs.





Automatic Interlocking Brick Making Machine

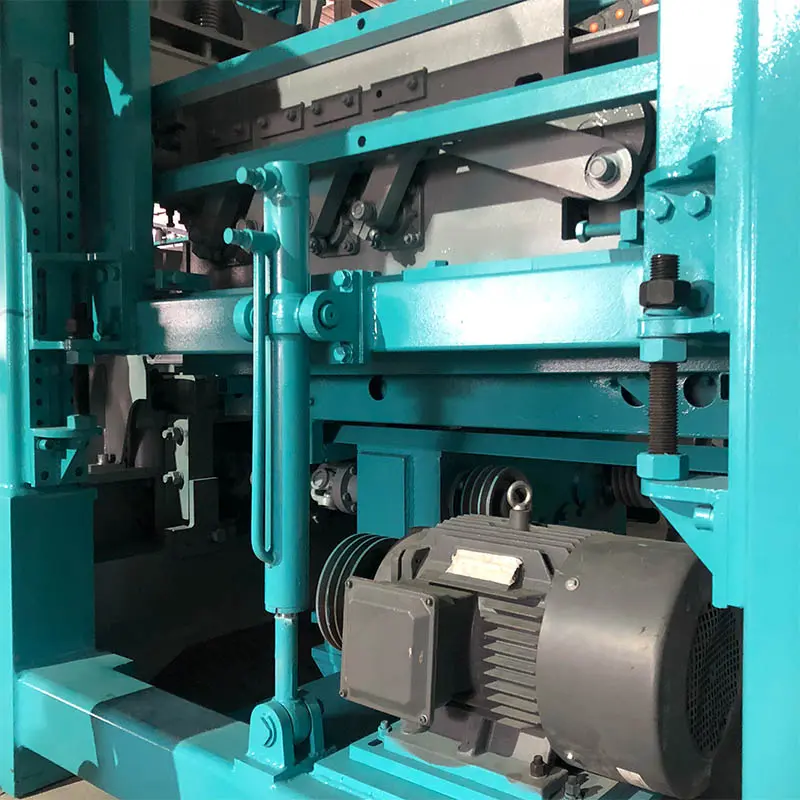

Vibration Table


Drived by the technology of sensor and hydraulic pressure, it can adjust the frequency to realize adding material in the low frequency and taking shape in the high frequency. it can get good effect of vibrating for the different material



  Automatic Interlocking Brick Making Machine

Hydraulic System



Uses imported high-dynamic proportional and directional valves, which is able to adjust the oil flow and pressure catering to all levels working requirement, so that buffer the hydraulic while working

  Automatic Interlocking Brick Making Machine





        Control Cabinet




controlled by computer with LCD screen, with 15 years experience to ensure completely, continuously and reliably automatic operation


Automatic Interlocking Brick Making Machine Technical Specification:



Main Dimension(L*W*H)

3700*2300*2800mm

Useful Moulding Area

1280*660*40~220mm

Pallet size (L*W*H)

1380*740*25~40mm

Pressure Rating

12~25Mpa

Vibration

60~95KN

Vibration Frequency

2800~4800r/min

Cycle time

13-18s

Power

48.5kW

Gross weight

11.5T


Automatic Interlocking Brick Making Machine Capacity:


Product size (mm)

       Pcs./Pallt

       Pcs./Hour

Legend

390*190*190

           9

        1620

Automatic Interlocking Brick Making Machine

390*140*190

          12

        2160

Automatic Interlocking Brick Making Machine

200*100*60

          36

        8640

Automatic Interlocking Brick Making Machine

225*112.5*60

          25

       6000

Automatic Interlocking Brick Making Machine

Automatic Interlocking Brick Making Machine

1.PL1200 batching station 2.JS500 Mixer 3.Cement silo 4.screw conveyor
5.Cement scale 6.Conveyor belt 7.block machine 8.Automatic stacker

The simple concrete block production line with simple elevator is made up of batching station,mixer belt conveyor,interlocking brick making machine and automatic stacker.the green blocks came out of brick making machine will be transported to stacker and lifed to a prearranged height by stacker,when the pallets come to the appointed layers, it should be carried to the curing area by hand pallet truck or forklift.



Automatic Interlocking Brick Making Machine

Automatic Interlocking Brick Making Machine

Automatic Interlocking Brick Making Machine
