Block Moulding Machine

Block Moulding Machine

A block moulding machine is a device used in the construction industry for producing blocks made from different materials, including cement, sand, and clay. The machine is designed to automate and streamline the block-making process, reducing labor costs and increasing production efficiency.

The block moulding machine works by mixing the raw materials - cement, sand, or clay - with water in a mixer unit. The mixture is then transported to the molds using a conveyor belt, where hydraulic pressure is applied to compact the mixture and create the desired shape of the block. Once the block is set, it can be removed from the mold and stacked for curing.

Block moulding machines typically consist of several components, including a mixer, a conveyor belt system, a set of molds, hydraulic pumps, and control systems. The molds can be customized to produce blocks of different sizes and shapes, depending on the construction requirements.

The types of blocks produced by the block moulding machine include interlocking blocks, paving blocks, and normal blocks. The blocks can be used in a wide range of construction projects, including building walls, houses, pavements, and other structures.

The advantages of using a block moulding machine include increased production efficiency, consistent product quality, reduced labor costs, and the ability to produce blocks of different sizes and shapes. The machine is easy to operate and requires minimal maintenance, making it a popular choice in the construction industry. Block moulding machines come in different models and capacity sizes, allowing them to cater to varying construction requirements.

Block Moulding Machine is able to apply in fully automatic block production line, is made up of batch station, concrete mixer, belt conveyor,automatic stacker and forklift. the fresh brick will be came out of brick machine and transported to stacker by block conveyor,when the splints come to some height, worker should carry the bricks to the curing area.

Block Moulding Machine Main features:

1.the rotation of the fast feeding method to ensure that the block is fully compact, and shorten the feeding time
2. the four-bar guiding method and the excellent super long guide sleeve are used to ensure the precise movement of the indenter and the mold.
3.the body is made of thick-walled super-strong steel and special welding, which is extremely strong and vibration-resistant and has strong excitation force.
4.the control system adopts German Siemens touch screen and programmable controller PLC to realize man-machine dialogue, display the running status of the system in real time, and find the fault prompt alarm.

Uses: All kinds of external wall blocks, interior wall blocks, flower wall blocks, floor slabs, berm blocks, and blocks such as interlocking pavement blocks and curbs. The secondary fabric mechanism also produces colored pavers.

Raw materials: sand, stone and cement can be used to add a large amount of industrial waste such as fly ash, slag, steel slag, coal gangue, ceramsite and perlite.

Product size	Picture	Capacity
400×200×200(mm)		8 pcs/pallet
		1350 pcs/hour
225×112×60/80mm		20 pcs/pallet
		4800 pcs/hour
200×100×60/80(mm)		27 pcs/pallet
		6480 pcs/hour
447×298×80/100(mm)		2 pcs/pallet
		480 pcs/hour
Pallet size		1100×680㎜
Vibration type		Frequency, amplitude
Excitation frequency		0～65HZ
Power		42.15 kW

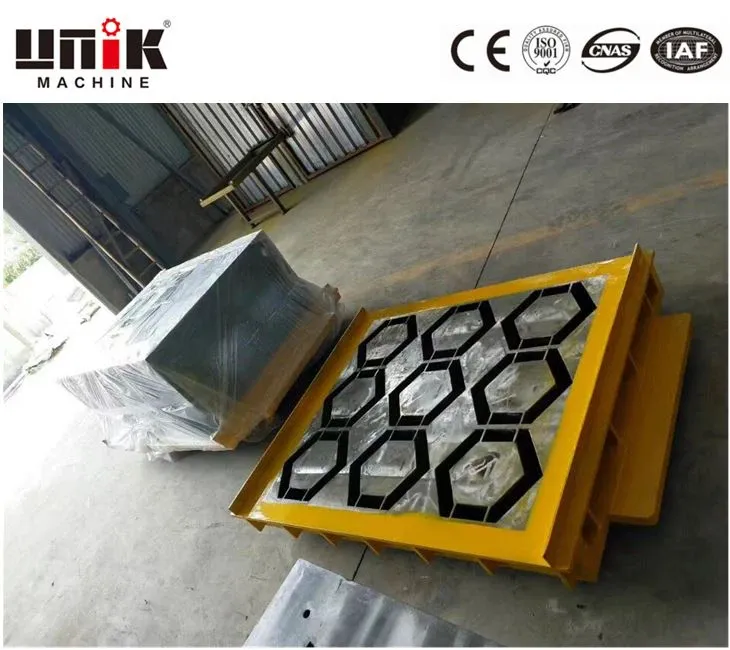

The low-carbon alloy high-strength carburized steel is used to make the interlock block mouldl smooth and durable through the wire cutting and special heat treatment process, with a clearance of 0.5-0.8mm. Mold platens and consumables can be replaced freely, and different shapes and contours can be designed according to customer needs.
The specifications interlock block products have strict requirements, and the thickness, height and width of the laying need to be precisely designed. With many years of experience and sophisticated craftsmanship,UNIK provides customers block moulds with different sizes and shapes.

Unik After Sales Department is working continually to provide our new and existing clients with such a support and to make block making machines perform at their best in terms of efficiency and quality of the products.

Supply spare and wear parts

Procurement proposal planning for consumables (stock control)

Preventive maintenance procedure

Efficiency improvements

Quality control

raw materials savings

waste reduced

Remote assistance (via cable or phone)

Training at the our factory or customer factory

FAQ:

1.Which machine is most suitable for my project?

You should make sure how much work space you have to produce and store blocks, how many blocks you want to produce in a day, what your initial budget for this machine.

2.Can I use just one machine to make every type of blocks?

Yes,Our block making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould. all you need to do is remove one type mould and replace with another, which cost at half hour for changing time.

3.what raw materials are required to produce blocks?

Cement, sand, aggregate Fine and coarse aggregates make up the bulk of a concrete mixture. The max diameter should require within 10mm.

4.Can I get installation for this machine?

We will arrange our engineer to your factory to guide installation and training,the customer will be responsible for all wages and expense of engineer.

5.How about warranty?

we promise 18 months guarantee for date of purchase, and agrees to repair or replace any defective part without charge,This warranty does not cover in cases of improper user, incorrect handling, insufficient maintenance, act of third parties, unauthorized service or modifications to the machine, damage resulting from accident, abuse, lack of reasonable care, normal wear or the addition of any other equipment not provided with product.

6.Can you sent me some spare parts freely?
Generally we used to provide wearable spare parts together when block machine while delivery.

7.How will you treat quality complaint?
First of all, all of our goods are strictly tested and inspected before delivery, which reduces the possibility of quality problem to near zero. If this is really a quality problem caused by us, we will definitely fix the problem, send you free goods for replacement or refund your loss.
