Brick Manufacturing Machinery

Brick Manufacturing Machinery

Brick manufacturing machinery refers to the machinery and equipment used to manufacture bricks and other types of clay or concrete building materials. These machines vary in size and complexity depending on the specific type of brick being produced, as well as the scale of the operation.

Some common types of brick manufacturing machinery include brick making machines, brick molding machines, and clay brick extruders. These machines can be operated manually, semi-automatically or fully automatically.

Brick making machines are used to produce clay bricks by molding clay and then firing them in a kiln. These machines can produce bricks of different shapes and sizes, depending on the mold they are fitted with.

Brick molding machines are similar to brick making machines but are designed to produce larger quantities of bricks at a faster rate. They are often used in larger-scale brick manufacturing operations.

Clay brick extruders are another type of brick manufacturing machinery that is used to produce bricks with a uniform size and shape. They work by forcing clay through a die to produce the desired shape, which is then cut to the required length before being fired.

Overall, brick manufacturing machinery plays a critical role in the production of building materials, providing the necessary tools and equipment for producing bricks of a consistent quality.

We have improved the positioning of the mold and the indenter to be more accurate, and the low mold is used for directional vertical, directional vibration and upper mold pressure vibration. The blocks produced have high density and high strength. Switch to an automatic cloth system to greatly improve production efficiency.The Brick Manufacturing Machinery can be customized according to customer needs, and the equipment has a high degree of automation.

Technical Specification:

Our advantage:

1. The operating system adopts Japanese Omron or Siemens PLC and touch screen control, equipped with data input device, safety logic control, and fault diagnosis system

2. Perform manual, semi-automatic, and fully automatic mode operations. The parameters of each actuator can be set at will. Can guarantee the quality and efficiency of the product.

3. Manufactured by special welding technology using high-strength section steel. It can ensure that the body has good rigidity, self-weight, and does not resonate with the excitation system. It can extend the service life of the machine.

4.Waste utilization, low raw material cost: various natural resources such as sand, sea sand, inferior soil, volcanic ash can be used as the main raw materials, and construction waste, tailings, slag, fly ash, stone powder and other waste materials can also be used to produce concrete products, reducing investment costs.

Production process:

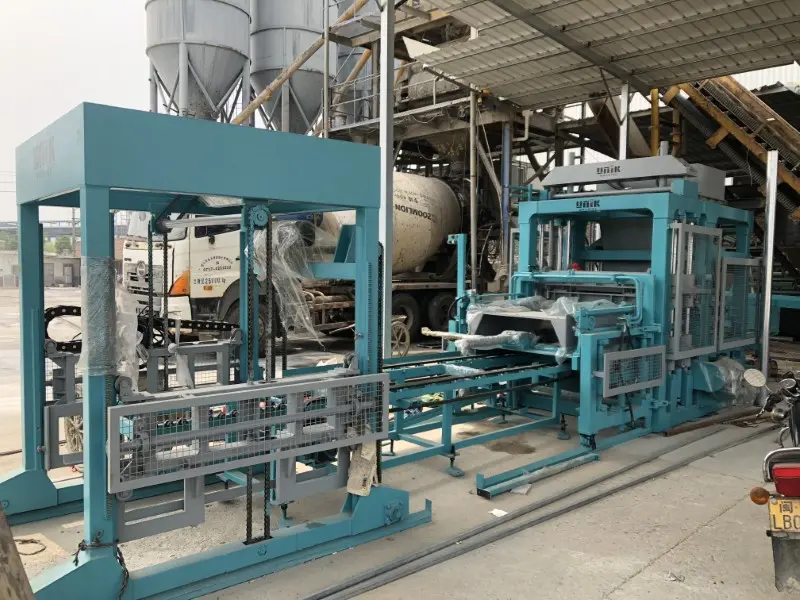

The mixed materials are stored in the hopper, and the materials needed for different bricks are transferred to the feeding trolley through time control. The feeding trolley is sent to the top of the mold through the oil cylinder, and the pressure head is pressed down and the vibration rapid prototyping and plate feeding machine are started at the same time. Push the green blocks to block conveyor, and the whole production process is controlled automatically

Service,delivery and shipping:

We will deliver concrete block machine within 20-25 days after receiving deposit

Anyone who intends to purchase our company's production equipment, our company invites you to come

(1) Look at the equipment to understand our production capacity;
(2) Take you to the company's old users for on-site inspection and consultation;
(3) After the intention is determined, the company will send technicians to design, plan, layout and process the foundation according to your requirements.
The company sent technicians to the site to guide equipment installation, commissioning site and training operators.

After-sales service:

1. We provide the whole production line with a one-year warranty and lifetime maintenance;

2. Assist customers in the management of molds and accessories;

3. 24-hour hotline service:

4. A timely solution mechanism for emergency problems in the block making production line;

5. Regular return visit mechanism for service quality;
