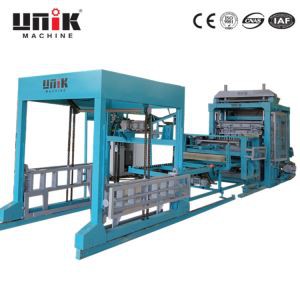

Cement Block Molding Machine

Cement block molding machine

Cement block molding machine is a device used to produce hollow or solid cement blocks. It operates using hydraulic pressure and can make different sizes of blocks according to the mold used. The machine is typically made up of a hopper, mixing system, hydraulic control system, conveyor belt, and molds. Cement is mixed with sand and water and poured into the molds which are then compacted by hydraulic pressure to form the blocks. The machine can be operated either manually or automatically depending on the model. It is widely used in the construction industry for building houses, walls, and other structures.

WHY UNIK Machinery.?
With its technical team and customer focused vision, UNIK Machinery has been able to apply all kinds of experiential and technological knowledge to the field, which has acquired over 20 years in the industry. Unik Machinery is preferred because it can find solutions to the needs of the sector and transfer these solutions to the field of operation.

1.We use adjustable central electric control system, the frequency of each machine is different.High-power frequency conversion can adjust vibration strength and amplitude, to achieve the best vibration effect and noise reduction.

2.Using a unique cutting and breaking device allows the material to be fed into the mold box quickly and evenly. The special double-end synthetic output vibration technology and the reasonable arrangement of the vibrators enable the exciting

3.The cement brick machine made well, the error of product quality is less than 1%, the intensity error is 0.5%.

4.The extensive use of raw materials, such as Sand, stone and cement can be used to add a large amount of industrial waste such as fly ash, slag, steel slag, coal gangue, ceramsite and perlite.

5.Due to its simple operating procedures, advanced molding methods, excellent power-saving features and unique production processes, allow you to recover cost in a short period of time.

Product size (mm)	Pcs./Pallt	Pcs./Hour	Legend
390*190*190	5	900
390*140*190	6	1080
200*100*60	25	5040
225*112.5*60	16	3600

We have various size of block making machines to meet different requirement, if you need information in detail, please feel free to contact us at sales@unikmachinery.com .

The loader will send various raw materials such as sand and gravel into the hopper of batching machine. It is measured by an electronic meter and batched according to the recipe stored by the computer (or it can be adjusted randomly). After metering, the material is sent from the conveyor to the concrete mixer. Raise the hopper and then send the material from the lift bucket to the mixer silo. Cement, fly ash, etc. are also sent to the agitator by the cement and fly ash dosing devices that are conveyed by the screw conveyor to the mixer. The water is then metered into the agitating tank according to the design ratio of water to cement and stirred. After 3 minutes of mixing the mixture, the 8 meters belt conveyor will send the mixed materials to the block making machine stock hopper for storage. Then the material is sent to the top of the mold by the material of the forming machine. The shaft rotates to generate centrifugal force to feed the material into the mold box. After feeding, the material carriage will return to the rear position. The pressure head will drop and start the vibrator to start working and vibrate the material. After the molding, the mold box is lifted to extrude the product, and then the feeding machine pushes the product onto the brick feeding machine. The brick feeding machine is cleaned by the brick surface cleaner, sent to the stacking machine, and then transported by the forklift to the maintenance room for maintenance.

Since its establishment, UNIK has been manufacturing with advanced modern management system and independent innovation. It has brought together a group of scientific and technological elites. The company implements computer informationization and production technology for computer management. The product development process design adopts CAD and CAPP technology. Strong mechanical processing, forging, rivet welding, carburizing heat treatment and other equipment,  and the introduction of advanced technology, technology and testing bases at home and abroad, for new product development and new technology promotion.

 FAQ:

1.Which machine is most suitable for my project?
You should make sure how much work space you have to produce and store blocks, how many blocks you want to produce in a day, what your initial budget for this machine.
 2.Can I use just one machine to make every type of blocks?
Yes,Our block making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould. all you need to do is remove one type mould and replace with another, which cost at half hour for changing time.
3.what raw materials are required to produce blocks?
Cement, sand, aggregate Fine and coarse aggregates make up the bulk of a concrete mixture. The max diameter should require within 10mm.
4.Can I get installation for this machine?
We will arrange our engineer to your factory to guide installation and training,the customer will be responsible for all wages and expense of engineer.
5.How about warranty?
we promise 12 months guarantee for date of purchase, and agrees to repair or replace any defective part without charge,This warranty does not cover in cases of improper user, incorrect handling, insufficient maintenance, act of third parties, unauthorized service or modifications to the machine, damage resulting from accident, abuse, lack of reasonable care, normal wear or the addition of any other equipment not provided with product
6. What kinds of payment terms can be accept?
T/T, LC,Western Union,MoneyGram,PayPal,etc, 30% as down payment; 70% balance before shipment
7.Can you sent me some spare parts freely?
Generally we used to provide wearable spare parts together when block machine while delivery.

8.What's the difference between a mobile and a stationary machine?
An egg-laying / mobile machine works on a concrete floor and leaves fresh blocks on the ground; A stationary machine delivers on wood pallets that slide under the mould. Mobile machines are cheaper and faster; Stationary machines are more versatile in production and guarantee better quality. Stationary machines produce interlocking pavers, Mobile machines don't.
