Cement block production line is a manufacturing process used for making precast concrete blocks, also known as cement blocks or concrete masonry units (CMUs). The production line includes a series of machines and equipment that work together to produce high-quality cement blocks.
Typically, the production line includes a concrete mixer, a dosing and batching machine, a block making machine, conveyors, and pallets. The process starts with the dosing and batching machine which mixes the aggregates, cement, and water in the right proportion. The mixture is then transported to the block making machine where it is molded into shape.
Cement block production line is a manufacturing process used for making precast concrete blocks, also known as cement blocks or concrete masonry units (CMUs). The production line includes a series of machines and equipment that work together to produce high-quality cement blocks.
Typically, the production line includes a concrete mixer, a dosing and batching machine, a block making machine, conveyors, and pallets. The process starts with the dosing and batching machine which mixes the aggregates, cement, and water in the right proportion. The mixture is then transported to the block making machine where it is molded into shape.

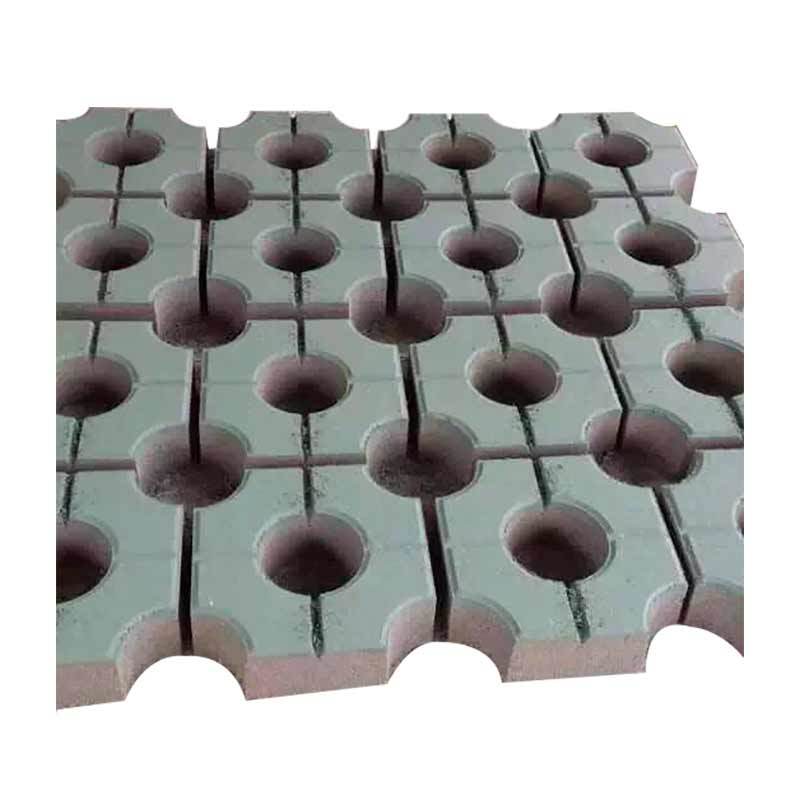

The block making machine can produce different sizes and designs of cement blocks, including hollow blocks, solid blocks, and interlocking blocks. Once the blocks are molded, they are transported by conveyors to a curing chamber where they dry and harden.
The final step in the production line is palletizing. The pallets are used to transport the blocks and help in their handling. The finished blocks are stacked on the pallet and then transported to storage or directly to construction sites.
Overall, the cement block production line is a highly automated and efficient process for making high-quality cement blocks used in construction.

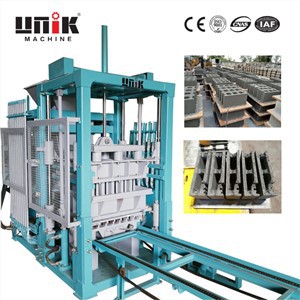

Cement block machine also known as concrete block making machine, is a powerful and efficient tool used for producing and forming concrete blocks. These machines are widely used in the construction industry in the Philippines, and they are considered essential equipment for any construction site.These block machines come in different sizes and models, ranging from small manual machines to large fully automatic ones. They can be used to produce a variety of concrete blocks, including hollow blocks, solid blocks, paving blocks, and interlocking blocks.
Cement Block Production line Production capacity:
Product size
Capacity
400×200×200(mm)
3 pcs/pallet
540 pcs/hour
225×112×60/80mm
20 pcs/pallet
2400 pcs/hour
200×100×60/80(mm)
12 pcs/pallet
2880 pcs/hour
447×298×80/100(mm)
1 pcs/pallet
180 pcs/hour
Pallet size
700×540㎜
Vibration type
Frequency, amplitude
Excitation frequency
0~65HZ
Power
20.55 kW
Cement Block Production line Technical features:
The Cement Block Production line is operated by a hydraulic or mechanical system, which ensures that the blocks produced are of uniform size and strength. Some machines have the capacity to produce up to 10,000 blocks per day, making them an excellent choice for large-scale construction projects.One of the main advantages of using a cement block making machine is that it can significantly reduce labour cost and time. The machine can produce a large number of blocks in a short period of time, eliminating the need for manual labour. In addition, the blocks produced by these machines are of uniform size and quality, which means that the construction process is faster and more efficient.
▲Perfect combination of German automation technology and system, automatic control, easy operation, low failure rate, high reliability, and has the functions of product formula management and operation data collection.
▲The hydraulic pump valve adopts an international brand, adopts high dynamic proportional valve and constant output pump to adjust speed and pressure, and has the characteristics of high stability, high efficiency and energy saving.
▲The feeding system adopts German technology, which is suitable for the use of special aggregates such as construction waste. The feeding frame, bottom plate and mixing blades are made of high-strength steel, which strengthens the sealing performance, prevents material leakage, ensures long service life, uniform feeding, and improves product quality.
▲With a large number of professional and technical personnel, after years of unremitting efforts, we can meet the different investment needs of users. With exquisite technology and excellent quality, it has won several national patents and its products are spread all over the country.
Service,delivery and shipping:
Professional packaging & Shipping
Packaging and shipping are crucial aspects of delivering block machines to their intended destinations. Block machines are heavy and bulky, and they need to be packaged and shipped carefully to ensure that they arrive at their destination in good condition.
The packaging of block machines begins with the selection of suitable packing materials. The packaging materials should be able to withstand the weight and size of the machine and protect it from damage during transportation. The primary packaging materials used in most cases are metal frames, wooden boxes, or pallets. These materials provide a strong foundation for the block machine and can protect it from damage during handling and transportation,Once the block machine is packaged correctly, it is ready for shipping. The shipping process should be carefully planned to ensure that the machine reaches its destination in time and without damage. The shipping company selected should have experience in handling bulky and heavy machinery, and it should have the necessary equipment to load and unload the machine safely.
Cement block machine in Philippines
In addition to its economic and sustainability benefits, hollow block development has also contributed to the creation of a stronger community in Philippines. With the increasing demand for housing, many hollow block manufacturers have started collaborating with local and national governments and non-government organizations (NGOs) to provide affordable housing solutions to low-income families. Through this initiative, they have not only helped solve the housing problem but have also promoted social cohesion and inclusivity in the community.With its economic, sustainability, and social benefits, the industry has made a great impact on the construction industry, contributing to the progress of the region. It has not only provided an affordable solution to the housing problem but also helped in strengthening the community. As the demand for housing and infrastructure development continues to grow, hollow block manufacturing will continue to be an essential part of the industry, providing quality and cost-effective solutions.
