A cement paver making machine is a machine that is used to produce cement pavers or interlocking bricks. These machines use raw materials such as cement, sand, gravel, and water to create pavers or bricks that are highly durable and long-lasting.
A cement paver making machine is a machine that is used to produce cement pavers or interlocking bricks. These machines use raw materials such as cement, sand, gravel, and water to create pavers or bricks that are highly durable and long-lasting.
Cement paver making machines operate by using hydraulic pressure to mold and shape the raw materials into the desired shape and size of the paver or brick. The machine then compresses the materials to create a compact and strong paver or brick with a consistent texture.
Cement paver making machines come in different sizes and models, with varying levels of automation and production capacities. Some machines can produce up to 12,000 pavers or bricks per day, while others can produce up to 30,000 pavers or bricks per day.
These machines are commonly used in construction projects, such as building walls, driveways, sidewalks, and other structures. They are highly efficient and easy to operate, making them a popular choice for many users. Additionally, they have a low maintenance cost and are designed to last for many years, offering businesses a reliable and profitable investment.
Overall, cement paver making machines provide a reliable and efficient solution for producing high-quality, durable pavers or bricks that can withstand the test of time in a wide range of construction projects. They are an essential component of the construction industry, providing a cost-effective and sustainable solution for creating long-lasting structures.
By changing mould, our Cement Paver Making Machine can produce various block type: lawn brick, Dutch brick, walkway brick, slope protection brick, floor brick, pavement brick, permeable brick, blind road brick, S-type curved wave brick, etc.
The raw materials used are extensive, such as cement, stone, coal gangue, sand, fly ash, steel slag, volcanic slag and various industrial wastes, construction slag, etc., using reasonable formula to produce different types of products.
The paving machine includes a main machine, automatic conveying device, hydraulic control device, hopper, hydraulic platform, mixer, pallet conveyor, pallet box, reversing valve handle, mold sleeve, mold indenter, raw material hydraulic conveyor, Pallet. A hoist is installed on one side of the main machine, and the hoist rail is at an angle of 45 degrees to the horizontal rail of the main machine.
Cement Paver Making Machine Technical Specification:
Dimension
3000 ×2015 ×2930mm
Weight
6.8T
Pallet size
850 ×680mm
Power
42.15 kW
Vibration method
Siemens motors
Vibration Frequency
3800-4500 r/min
Cycle time
15-20s
Vibration Force
50-70KN
Cement Paver Making Machine Main features:
1. The new semi-closed hopper, the inner device linear reciprocating piece, quickly and evenly adds materials to the brick machine mold. Maximize the use of effective vibration, and distribute the vibration force to all parts of the mold box in a balanced manner, which greatly increases the product density and the service life of the mold box.
2. The main structural parts of the equipment are used Q235B material, and the shaft parts are used 45# steel. The overall structural safety factor is designed according to the large value (3.5 times safety factor), and some key parts are analyzed by local finite element force.
3. Germany Bosch pneumatic damping system greatly reduces the adverse effects of noise and vibration on the equipment during vibration, making the equipment more stable and reliable.
4. The central control system is equipped with PLC man-machine interface automatic operating system, fault diagnosis, electromechanical and hydraulic integration, production monitoring, and so on.
5. Made of high-precision, high-strength castings and special welding techniques and materials, it has good rigidity, vibration resistance and long life
6. Fully automatic control, controlled by PLC imported from Japan, effectively complies with mechanical vibration and hydraulic pressure, high yield and low failure rate.

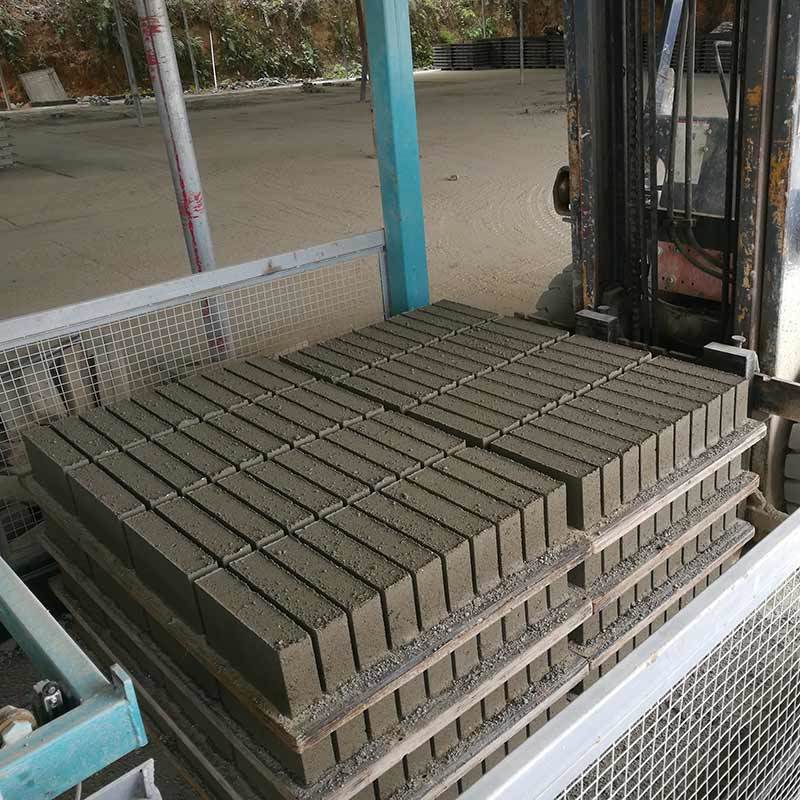

Multi-purpose automatic paver making machine production line can produce different specifications of porous brick, hollow block, curb stone, pavement brick, grass planting brick, slope protection brick and other cement products by replacing brick machine mold. The output table is as follows:
Specification of products(mm)
Number of blocks per pallet
Pieces/1 hour
Pieces/8hours
Block
400×200×200
6
1,400
11,520
Hollow Brick
240×115×90
15
3,600
28,800
Paving Brick
225×112.5×60
15
3,600
28,800
Standard Brick
240×115×53
30
7,200
57,600
The block-making process of high-frequency stereo machine vibration and double synchronizer linkage, the whole machine runs smoothly, has fast speed, strong pressure and vibration force, and produces various types of burn-free bricks with high density, high strength, accurate size, and smooth appearance.
Adhering to the concept of “Service and Quality Achievement Brick Integration Solution Operator”, UNIK fully implements IS09001 Quality Management System and ISO14001 Environmental Management System, and has won honors such as China Famous Trademark, Fujian Famous Trademark, Fujian Famous Brand Product, Patent Gold Award and so on. Widely favored by the market, the sales channels are spread over more than 50 countries and regions in China and overseas, and a high-quality service team has been established. There are 25 offices in China and 5 overseas offices.
