Concrete Solid Block Making Machine

Concrete Solid Block Machine are used in the manufacturing of concrete blocks, which are commonly used in construction. The machines typically use hydraulic pressure and vibrations to compact the concrete mixture and mold it into the desired shape and size. These machines can produce various types of blocks, including solid blocks, hollow blocks, paving blocks, and more. Some advanced models come with computerized controls for accurate and efficient production. The machines are widely used in the construction industry as they offer high production rates and consistent quality blocks.

Concrete Solid Block Making Machine



what is Concrete Solid Block Making Machine product size





Product size


Capacity

400×200×200(mm)


6 pcs/pallet

1080 pcs/hour

225×112×60/80mm


15 pcs/pallet

3600 pcs/hour

200×100×60/80(mm)


21 pcs/pallet

5040 pcs/hour

447×298×80/100(mm)


2 pcs/pallet

480 pcs/hour





Concrete Solid Block Making Machine Pallet



Pallet size

850×680mm

Vibration type

Frequency, amplitude

Excitation frequency

0~65HZ

Power

42.15 kW

Concrete solid block making machine is a market development trend. The supporting pallet of the concrete solid block making machine is an indispensable auxiliary equipment in the production process, which is mainly used to lift and transport the blocks. The pallet material: Glass mat reinforced thermoplastics,which is made of fiber as reinforcing materials and thermoplastic resin as matrix, through heating and pressurizing of them.

Concrete Solid Block Making Machine Pallet Main features



1. Bearing and transportation:

The main function of the supporting pallet is to carry and transport the blocks, to ensure that the blocks remains stable during forming, vibration and transportation.
2. Improve production efficiency:

High-quality pallets can reduce the damage of block blanks in the production process, improve production efficiency and product quality.
3. Extend equipment life:

By reducing vibration and shock, pallets help extend the life of your equipment.


Concrete Solid Block Making Machine Main features



1. Adopt German frequency conversion technology, host frequency conversion control, reduce the starting current of the motor, realize the synchronous work of the vibration assembly, solve the problem of motor inertia when parking, and save 20-30% of electricity.

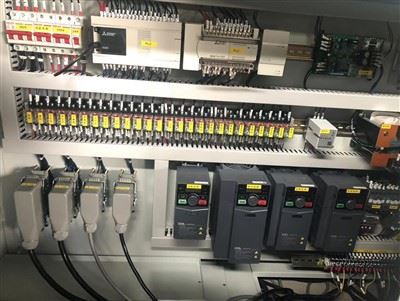

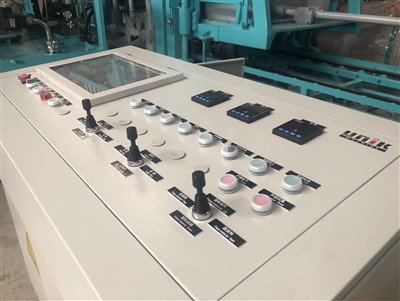

2. It adopts German Siemens programmable controller (PLC) and Siemens touch screen control, which is convenient, low failure rate, permanent storage of formula data, real-time fault diagnosis and real-time alarm system.

3. The hydraulic control system adopts a highly dynamic proportional valve, which can automatically adjust the flow rate during the production process, improve the stability and prolong the service life of the cylinder.

4. It adopts 360 degree rotation forced cloth, which is fast and evenly distributed, and is suitable for all kinds of raw materials and various molds

5. The mold material is treated with carbon-nitrogen co-nitride, which is wear-resistant and wear-resistant, and the service life is extended by more than 50% compared with the general quenched and tempered mold.

Concrete Solid Block Making Machine pack service



When the block making machine is ready to be shipped, our company will pack it very carefully. In addition, we guarantee that the block making machine will not have any damage when it arrives at the port.
The block making machine is packed with PVC film, which is waterproof and dustproof, and the spare parts will be packed in a wooden case, this packing way can ensure that the machine will not move inside the box, and ensure its transportation safety.
We will deliver the ordered no-bake brick making machine within 20-25 days after receiving the deposit.
