Cuber Block Machine

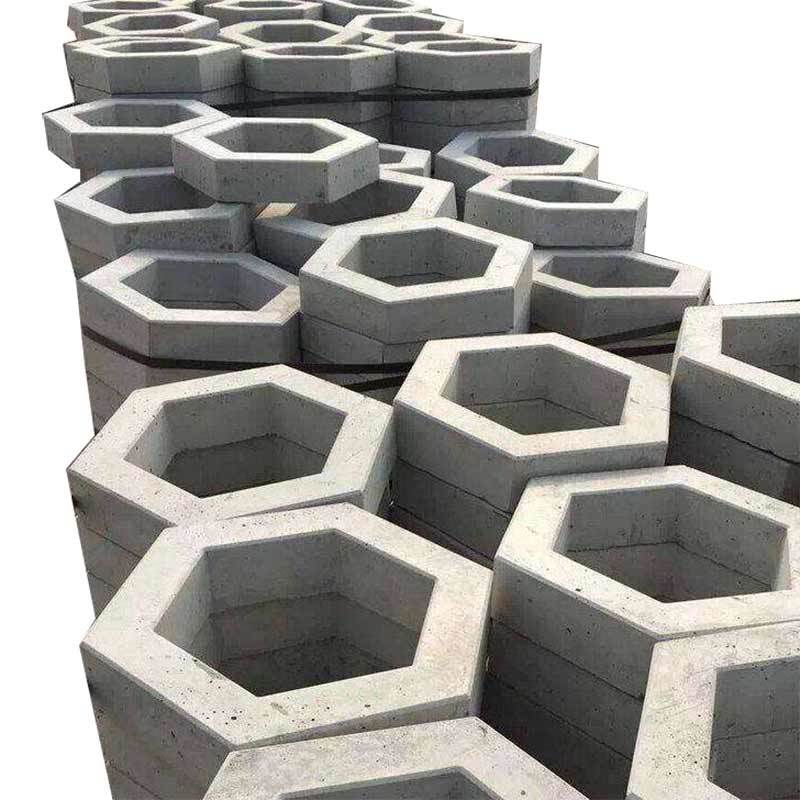

A Cuber Block Machine, also known as a stacker machine, is a specialized equipment used to stack, straighten and package cuber blocks or other concrete products such as pavers and bricks. Cuber block machines are used in the final stage of the production process in a concrete block manufacturing plant.

Cuber block machine quotes:

A Cuber Block Machine, also known as a stacker machine, is a specialized equipment used to stack, straighten and package cuber blocks or other concrete products such as pavers and bricks. Cuber block machines are used in the final stage of the production process in a concrete block manufacturing plant.

The Cuber Block Machine uses a hydraulic system and a conveyor system to collect the concrete blocks from the production line and to arrange them in a straight line or a pre-defined pattern. The machine automatically feeds the blocks into the stacker station or packaging station, where the blocks are placed in layered configurations to build the final pallet.

Cuber block machines come in different designs, each with its unique features and specifications. Some models are designed for straight stacking, while others are intended for packaging cuber blocks or concrete products into pre-determined patterns. The cuber block machines are consequently automated in such a way as to stack and package these blocks effectively and speedily.

The Cuber Block Machine is an essential piece of equipment in a concrete block manufacturing company. It helps in maximizing the production output, reducing manual labor requirements, and increasing the efficiency of the production process. It also ensures that the cuber blocks or other concrete products are safely and neatly stacked, thus reducing damage caused by handling and transportation.



Cuber Block Machine Quotes

To save labor cost for separating the blocks from pallets, we have designed cuber machine for our customers to be used for every stander of concrete block making plant.



Technical Specification:


Items

Specification

Length   (L)

4570mm

Height   (H)

2260mm

Block Cubing Height  (H1)

135-2055mm

Pallets Cubing Height  (H3)

0-1800mm

Width   (W)

1850mm

Block Cubing Main Clamp Width  (W1)

700-1380mm

Block Cubing Side Clamp Width   (W2)

700-1380mm

Pallets Cubing Clamp Width      (W3)

850-1440mm

Block Cubing Sliding Dis.         (S1)

2000mm

Pallets Cubing Sliding Dis.        (S2)

2022mm



Main Features


Cuber Block Machine Quotes

Cuber Block Machine Quotes

High accuracy of positioning by integrated measuring of travel distance Travel speed with step less adjustment, including ramp function for soft starting up and braking down.
Cuber Block Machine Quotes Cuber Block Machine Quotes
Fast acceleration by high dynamic of the drives. The cuber is composed of a very stable gantry structure from steel profiles with the supports for the travel track.

Cuber Block Machine Quotes

Cuber Block Machine Quotes

Cuber Block Machine Quotes


Cuber Block Machine Quotes

Cuber Block Machine Quotes


Cuber Block Machine Quotes
