Hydraulic Fly Ash Block Brick Making Machine

The Hydraulic Fly Ash Block Brick Making Machine is a specialized machine that produces bricks and blocks from fly ash, cement, sand, and other materials. It is designed with hydraulic controls to provide the necessary pressure to compress the materials and form the finished blocks. The machine can be operated automatically or manually depending on the preference of the user..

UNIK QT5-15 Hydraulic Fly ash Block Brick Making Machine for Sale


UNIK QT5-15 Hydraulic Fly ash Block Brick Making Machine is designed for a product height of 40–220 mm, The machine frame consists of a welded construction using sectional steel to ensure optimum rigidity and accessibility, The Control of the machine functions and movements are controlled by a Omron PLC system. All movements, time functions, positioning aims and vibrating parameters can be adjusted as variables in easy and safe manner via operator panel. the pallet size is about 1100*570mm, so in fact the capacity for paver and brick even more than QT6-15 model, for example, about the paver 200*100*60, one pallet for QT6-15 model is about 21pcs, however for QT5-15 block machine, it will be 25pcs per pallet, the brick 240*115*53mm, one pallet for QT6-15 is about 30pcs, for QT5-15 can reach at 36pcs per pallet.

The Hydraulic Fly Ash Block Brick Making Machine is a specialized machine that produces bricks and blocks from fly ash, cement, sand, and other materials. It is designed with hydraulic controls to provide the necessary pressure to compress the materials and form the finished blocks. The machine can be operated automatically or manually depending on the preference of the user.

The machine consists of a feed hopper, mixer, conveyor belt, and hydraulic pressing system. It receives raw materials through the feed hopper and mixes them in the mixer, which ensures that the right amount of each material is evenly distributed across the mixture. The conveyor belt then transports the mixture to the hydraulic pressing system, which compresses the materials into the desired shape and size of the brick or block

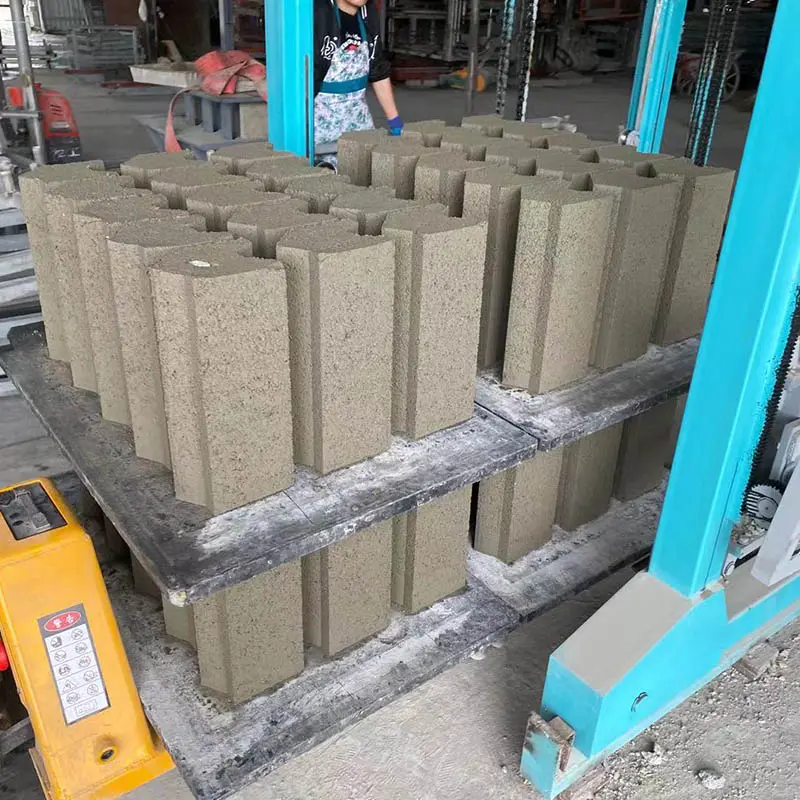

The hydraulic fly ash block brick making machine is capable of producing different sizes and shapes of bricks and blocks, including hollow blocks, solid blocks, paving stones, and interlocking blocks. The machine can be customized to meet the specific requirements of the client with different molds.

The machine is equipped with advanced control systems that allow for fast and efficient operation, reducing the need for manual labor and increasing productivity. The hydraulic fly ash block brick making machine plays an essential role in the construction industry by producing high-quality and durable bricks and blocks that can be used for various building projects.







Main Features:


QT5-15 Hydraulic Fly Ash Block Brick Making Machine for Sale


QT5-15 Hydraulic Fly Ash Block Brick Making Machine for Sale


Imported well-know brand hydraulic proportion system

Possibility to produce a wide variety of products with heights from

40mm up to 220mm

QT5-15 Hydraulic Fly Ash Block Brick Making Machine for Sale

QT5-15 Hydraulic Fly Ash Block Brick Making Machine for Sale

Modern stacking and destacking lifts Face mix section


Technical Specification:


Dimension

3000×2090×3000mm

Pallet Size

1100×560×20mm

Vibration Frequency

3800-4500 r/min

Hydraulic Pressure

25 mpa

Vibration Force

68 KN

Cycle time

15-20s

Power

31.4 kW

Weight

6950 KG

Capacity


Product size(mm)

Pcs./Pallet

Pcs./Hour

390x190x190mmQT5-15 Hydraulic Fly Ash Block Brick Making Machine for Sale

5

1200

240x115x90mmQT5-15 Hydraulic Fly Ash Block Brick Making Machine for Sale

16

3840

200x100x60mmQT5-15 Hydraulic Fly Ash Block Brick Making Machine for Sale

18

4320

240x115x53mmQT5-15 Hydraulic Fly Ash Block Brick Making Machine for Sale

34

8160


QT5-15 Hydraulic Fly Ash Block Brick Making Machine for Sale





QT5-15 Hydraulic Fly Ash Block Brick Making Machine for Sale

QT5-15 Hydraulic Fly Ash Block Brick Making Machine for Sale





FAQ:


1.Which machine is most suitable for my project?

You should make sure how much work space you have to produce and store blocks, how many blocks you want to produce in a day, what your initial budget for this machine.


2.Can I use just one machine to make every type of blocks?

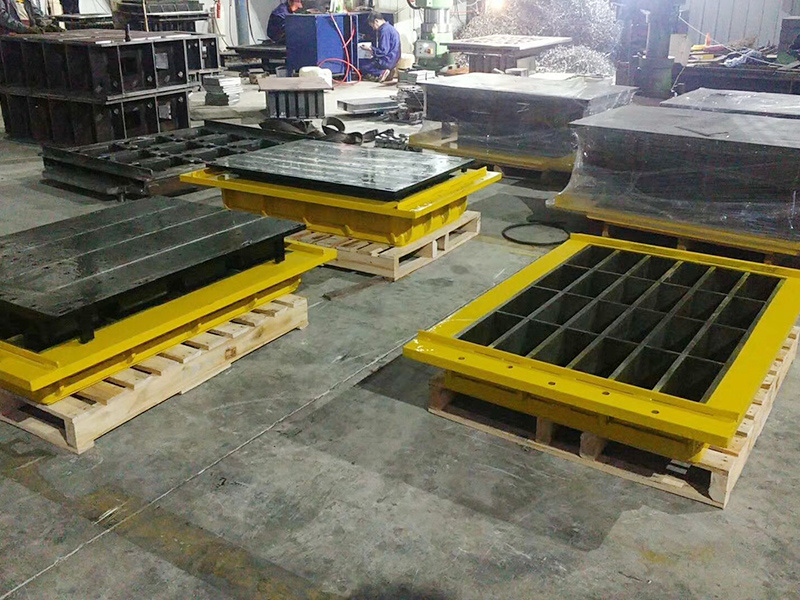

Yes,Our block making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould. all you need to do is remove one type mould and replace with another, which cost at half hour for changing time.


3.what raw materials are required to produce blocks?

Cement, sand, aggregate Fine and coarse aggregates make up the bulk of a concrete mixture. The max diameter should require within 10mm.


4.Can I get installation for this machine?

We will arrange our engineer to your factory to guide installation and training,the customer will be responsible for all wages and expense of engineer.


5.How about warranty?

we promise 18 months guarantee for date of purchase, and agrees to repair or replace any defective part without charge,This warranty does not cover in cases of improper user, incorrect handling, insufficient maintenance, act of third parties, unauthorized service or modifications to the machine, damage resulting from accident, abuse, lack of reasonable care, normal wear or the addition of any other equipment not provided with product
