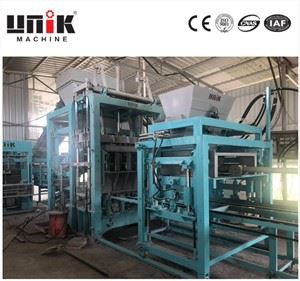

Interlock Brick Block Machine

Interlock brick block machines are machines designed to produce interlocking bricks or blocks using raw materials such as soil, sand, or cement. These machines use hydraulic pressure to mold and shape the bricks or blocks and then compress them into a tight interlocking formation. The interlocking system ensures that the bricks or blocks stay in place and creates a sturdy structure.

Interlock brick block machine

Interlock brick block machines are machines designed to produce interlocking bricks or blocks using raw materials such as soil, sand, or cement. These machines use hydraulic pressure to mold and shape the bricks or blocks and then compress them into a tight interlocking formation. The interlocking system ensures that the bricks or blocks stay in place and creates a sturdy structure.

These machines can produce different sizes and shapes of interlocking bricks or blocks, including standard rectangular shapes, square shapes, and even custom shapes. They are ideal for use in construction projects such as building walls, homes, driveways, and other structures.

Interlock brick block machines come in different capacities and levels of automation to meet various production demands. Production capacity can range from several hundred to tens of thousands of blocks per day. Some machines are fully automated, while others require manual operation.

Interlock brick block machines are popular in many countries due to their efficiency, affordability, and ability to produce high-quality bricks or blocks that withstand the test of time.





Interlock brick block machine represents the most advanced block forming model among the current domestically-made mold pressing and vibrating machines. It is a high-performance domestic forming equipment developed and manufactured on the basis of absorbing many advantages of foreign block and brick machines. It is compatible with cement bricks, curbstone, and paver. Along the stone, river bricks and hydraulic products, etc., at the same time, you can choose the horizontal secondary distributing system to increase the color effect. The storage and distribution device and the independent foundation storage hopper overcome the disadvantages of the preliminarily liquefaction of concrete and ensure the production of finished products. can automatically complete the whole process from feeding to product output


Interlock Brick Block Machine

Equipments for basic concrete block making plant:

All processes from raw materials to finished products (direct handling) can be fully automated. The product storage system is equipped with intelligent equipment to transport and maintain the products. In addition, the palletizing of finished products meets the requirements of direct transportation. The production system can be gradually upgraded to a fully automated production line.

Items

Name of goods

Quantity

Note

1

Batching machine

1 set

OLI-WOLONG Vibrator

2

Concrete mixer

1 set


3

Belt conveyor

1 set


4

Material feeder

1 set


5

Block machine

1 set

One mould for free

6

Block/pallets conveyor

1 set


7

Automatic stacker

1 set


8

Hydraulic system

1 set


9

Electric cabinet

1 set


10

Pallets

1000 pcs


Various specifications and models can be customized according to customer requirements

Interlock Brick Block Machine

Main features:

1. The height of the vibrating table can be adjusted to produce diversified products. Standard equipment can produce products with a height of 50-400mm and 500mm. According to customer needs, lower height products can also be produced.

2. The main structural parts of the equipment are used Q235B material, and the shaft parts are used 45# steel. The overall structural safety factor is designed according to the large value (3.5 times safety factor), and some key parts are analyzed by local finite element force.

3. The key hydraulic components such as solenoid valves and hydraulic oil pumps are mainly imported well-known brands such as Yuken,CML and important hydraulic parts such as hydraulic cylinders and valve blocks are made of domestic famous brand products such as long-term hydraulics. Key electrical components such as sensors, proximity switches, and electronic control components are mainly branded products such as Japan's Mitsubishi and Japan's Omron. Important electrical components such as motors, reducers, and control cables are made of well-known international brands.

4. The material of mould is carburized by Q345B (16 manganese), and the inner cavity of the mold is formed by wire cutting, which effectively ensures the size of the finished brick and the service life of the mold.

5. High-strength excitation force improves product compactness. The host can be equipped with a high-efficiency servo vibration system, which has fast response speed and large excitation force. The same brick, under the premise of ensuring the compactness of the product, the molding speed is 20% higher than that of similar models in the market.


Capacity sheet:

Interlock Brick Block Machine



We have various size of block making machines to meet different requirement, if you need information in detail, please feel free to contact us at sales@unikmachinery.com.

Our service:

Whenever you buy our products, all equipment has a one-year warranty and lifetime service! After the contract is signed, our design department will design the foundation drawings for the product installation for customers free of charge, and the customers can lay the foundation according to the drawings; after the equipment is shipped, our company will assign professional and technical personnel to the customer’s site to guide the installation and commissioning of the equipment, and teach Corresponding operation technology, the ratio of raw materials in production, simple equipment maintenance knowledge, simple troubleshooting methods, mold replacement methods, etc.

Before sale:

(1) Selection of equipment product model.

(2) According to the special requirements of customers, design changes and manufacture products.

(3) Free training of technical personnel for customers.

(4) The company sends engineering and technical personnel to the customer site for free to plan and design the installation plan for the user.

On sale:

(1) Product acceptance.

(2) According to the customer's site design and installation drawings, assist the customer in drawing up the construction plan.

After sale:

(1) Freely assign professional and technical personnel to the site to guide customers in installation and commissioning.

(2) Equipment installation and debugging.

(3) On-site training of operators, including teaching customer technical staff to operate
