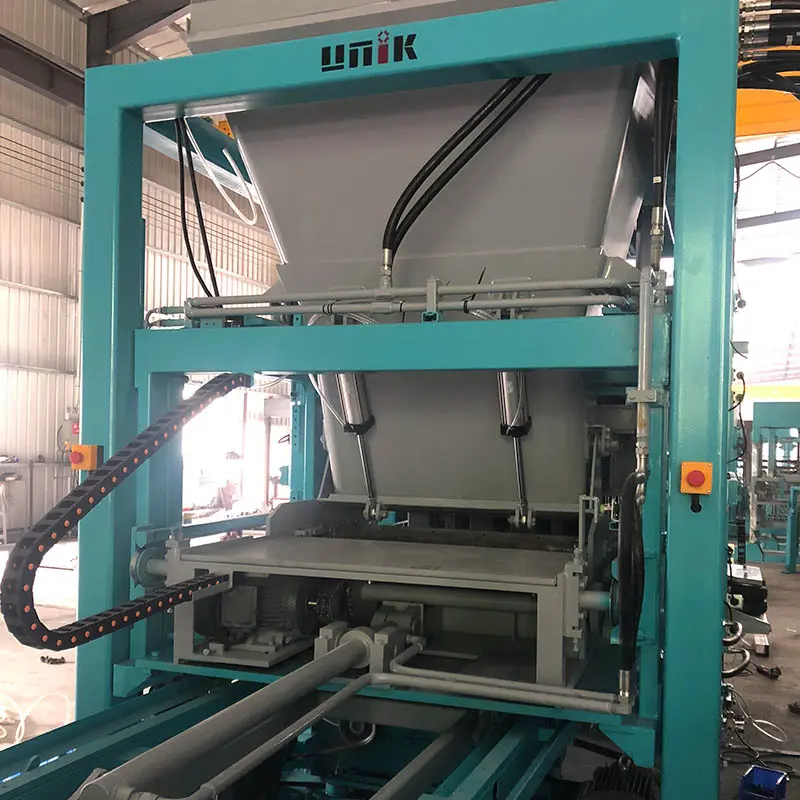

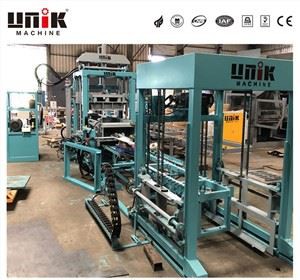

Interlocking block making machine equipment is a type of machinery used for producing interlocking bricks or blocks that can be used for building various structures. Interlocking blocks have a unique design which allows them to be tightly locked together, without the need for mortar or cement. This type of construction is popular in many parts of the world, especially in developing countries where conventional building methods may not be affordable.
Interlocking block making machine equipment is a type of machinery used for producing interlocking bricks or blocks that can be used for building various structures. Interlocking blocks have a unique design which allows them to be tightly locked together, without the need for mortar or cement. This type of construction is popular in many parts of the world, especially in developing countries where conventional building methods may not be affordable.
The equipment typically consists of a block making machine, which can be manual or automatic, and molds for producing the interlocking blocks. The machine uses raw materials such as cement, sand, and gravel, mixed with water, to create the blocks.
Interlocking block making machines can be customized to produce different types of blocks with varying sizes, shapes, and colors. They offer several advantages over traditional building materials, including reduced construction time, lower costs, and improved durability. The blocks are also eco-efficient, as they require less energy to produce and transport.
The Interlocking Block Making Machine Equipment is combined with the new and old customers' opinions to improve the design of a new type of machine with high production quality, strong durability and high production efficiency. It is suitable for the production of various high-strength environmentally-friendly bricks, interlocking blocks and parking lots. Planting bricks, hollow blocks, etc. simple operation, easy maintenance and small investment. the product strength is much higher. perfect choice for small and medium-sized customers to invest in supporting simple production lines.
Specification of products(mm)
Number of blocks per pallet
Pieces/1 hour
Pieces/8hours
Block
400×200×200
3
540
4320
Hollow Brick
240×115×90
10
2400
19200

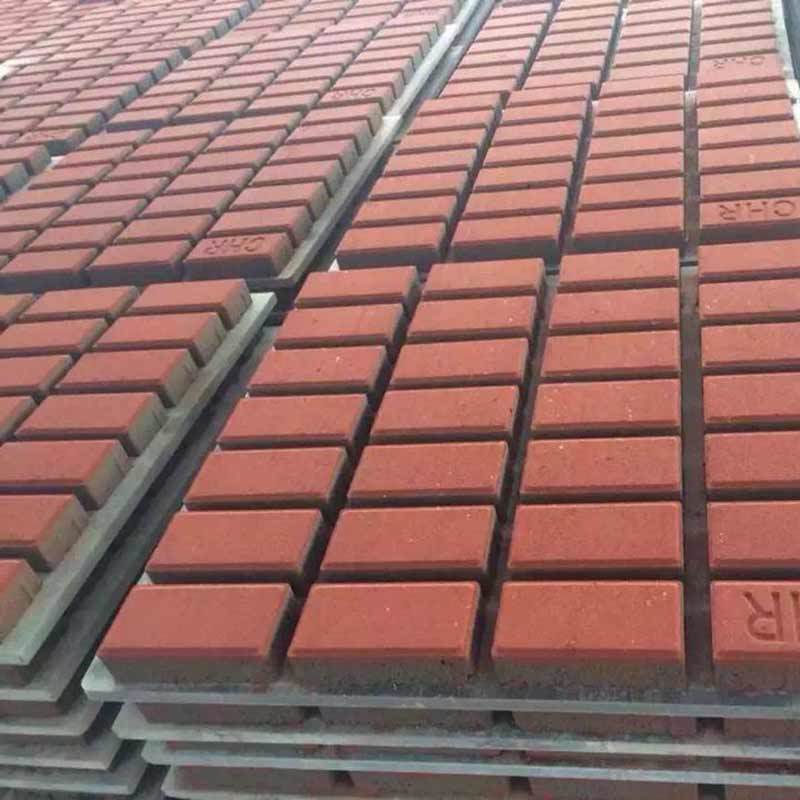

Paving Brick
225×112.5×60
10
2400
19200
Standard Brick
240×115×53
20
4800
38400
Curbstone
200*300*600
1
240
1920
Technical specification:
Dimension
2710 ×1400 ×2330mm
Weight
5.5T
Pallet size
700 ×540mm
Power
20.55 kW
Vibration method
Siemens motors
Vibration Frequency
3800-4500 r/min
Cycle time
15-20s
Vibration Force
50-70KN
Interlocking Block Making Machine Equipment Main features:
1. Adopt world-famous brand component mature visualized software easy to operate with auto error diagnosis and remote control function
2. Double ratio: The double ratio makes the pressure and flow of the hydraulic control system of the model can be adjusted separately
3. Inverter: The inverter not only saves energy but also protects the vibrating motor, so that the vibrating motor runs at a constant speed without working, so as to ensure the smooth running of the current and voltage during the instant start of the vibrating motor and prolong the life of the motor.
4.Unique water circulation heat dissipation technology ensures the normal temperature of the hydraulic oil, making the equipment transport bricks more stable.
4. The forced four-column guide column mold synchronous movement structure makes the mold lift smoothly and ensures the consistency of the product thickness.
5. Patent multi-shafts vibrator combines floating vibration table make concrete products even and compact
6. The material feeder adopts the manganese steel ,the feeding is fast and uniform, the forming speed is increased, the product density is uniform
Unik After Sales Department is working continually to provide our new and existing clients with such a support and to Interlocking Block Making Machine Equipment perform at their best in terms of efficiency and quality of the products.
Supply spare and wear parts
Procurement proposal planning for consumables (stock control)
Preventive maintenance procedure
Efficiency improvements
Quality control
raw materials savings
waste reduced
Remote assistance (via cable or phone)
Training at the our factory or customer factory
