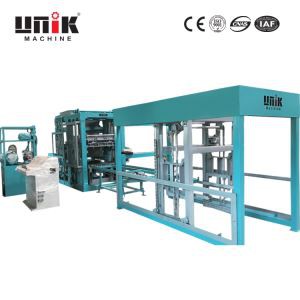

Interlocking Cement Brick Making Machine

An interlocking cement brick making machine is a specialized equipment used for the production of interlocking bricks made of cement, sand, and other materials. It is designed with hydraulic systems and computer controls that provide pressure and vibration, which help to form the interlocking blocks.


Low Cost Hydraulic Automatic Interlocking Cement Brick Making Machine

Our Hydraulic interlocking cement brick making machine’s production cycle time is between 13 seconds without and 16 seconds with Face mix on regular Pavers production. This means with a production rate of 5 cycles per minute and 90 % efficiency the average output should be approx. 220 cycles per hour. Depend on the design and shape for the different pavers and Block, the actual hourly production capacity varies. However, please note that the machine speed will be lower with manual labour evolved and increase with more automation.


An interlocking cement brick making machine is a specialized equipment used for the production of interlocking bricks made of cement, sand, and other materials. It is designed with hydraulic systems and computer controls that provide pressure and vibration, which help to form the interlocking blocks.

The machine operates by mixing a carefully proportioned mixture of cement, sand, and water, which is then fed into the machine's hopper. The hydraulic press applies pressure to the mixture and shapes it into interlocking bricks. Vibration is then applied to compact the blocks and remove air pockets, ensuring excellent quality interlocking bricks.

Interlocking cement brick making machines can produce various interlocking brick designs such as zigzag, flower, v shape, rectangular, square and many other patterns depending on the mold designs used. The machines come in different sizes and capacities, they are fully automated, semi-automated, or manual, all depending on the customer's requirements.

The production process results in high-quality interlocking bricks that are well suited for various outdoor applications, including paving walkways, driveways, and patios. The interlocking design of the bricks provides a seamless fit and adds to the aesthetic appeal of the paved area.

The interlocking cement brick making machine saves time, money, and labor costs due to its high production capacity and precision, which ensures that the interlocking bricks produced meet the required quality standards. The equipment is widely used in the construction industry, contributing to the smooth implementation of construction projects.













QT9-15 model specification



Main Dimension(L*W*H)

3670*2650*2867mm

Useful Moulding Area

1280*600*40~220mm

Pallet size (L*W*H)

1380*680*30~40mm

Pressure Rating

12~25Mpa

Vibration

60~95KN

Vibration Frequency

2800~4800r/min

Cycle time

13-18s

Power

48.5kW

Gross weight

11.5T





Low Cost Hydraulic Automatic Interlocking Cement Brick Making Machine

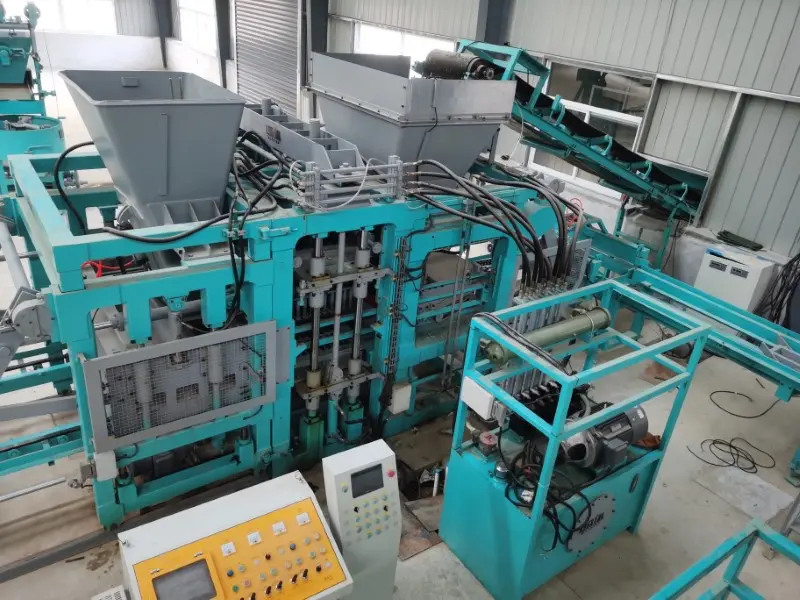

Hydraulic pressure system


The hydraulic pressure system is researched and developed by our engineers. The integrated and independent hydraulic valves such as the electromagnetism valve, electro-hydraulic directional control valves etc all imported from Japan (the brand: Yukento ensure accuracy and reliability.



Low Cost Hydraulic Automatic Interlocking Cement Brick Making Machine

High quality mould


Optimized milling strategies and hardening technology ensure the high quality of  moulds



Low Cost Hydraulic Automatic Interlocking Cement Brick Making Machine

Pallet feeder machine


Considering the high labor cost, we have designed the pallets feeder machine for cement brick making machine to tranfer the pallets one by one in automation










 Low Cost Hydraulic Automatic Interlocking Cement Brick Making Machine

1.PL1200 batching station 2.JS500 Mixer 3.Cement silo 4.screw conveyor
5.Cement scale 6.Conveyor belt 7.block machine 8.Automatic stacker




Low Cost Hydraulic Automatic Interlocking Cement Brick Making Machine





In order to ensure that our products are always in good working condition during the use process, the company has made the following service requirements on the basis of strictly implementing GB/T1678.1-1997 "industrial products after-sales service" standards:
1. The warranty period is 12 months or 2000 hours.
2. Freely train the operation, maintenance and management personnel for the customer.
3. Respond to relevant customer inquiries in a timely manner.
4. Provide relevant documents and materials to customers.
5. Perform product quality responsibility and provide on-site services such as installation, commissioning and maintenance to customers in a timely manner.
6. Create customer files and track product usage.
7. After the contract takes effect, the customer is responsible for the construction of the supporting facilities and foundation pre-buried by the company, and the main cable is led to the main cabinet; the water source is led to the mixer. Our company provides the complete machine certificate for the equipment.
8. After the customer base is self-accepted, if the customer does not have the conditions to force installation or needs to be re-installed, the customer should sign in writing and the company will charge the corresponding fee.
9. Due to partial improvement and process improvement under the contract, our company has the right to make new designs and improvements without degrading the performance of the original equipment. If the physical object of the contract is different from the contract information, the actual product shall prevail, but the quality level of the equipment shall not be lowered.
