Movable Automatic Block Machine

Movable Automatic Block Machine

A movable automatic block machine is a type of machine used to produce concrete blocks. Unlike stationary block machines, these machines are mounted on wheels or are equipped with a chassis that allows them to be easily moved from one location to another. They are also designed to operate automatically, with minimal human intervention.

Movable automatic block machines use hydraulic pressure to compress the raw materials, including cement, sand, and water into the desired block shape. The automation ensures that the blocks are uniform in size and shape, resulting in a high-quality finished product.

These machines are ideal for use in smaller construction projects or in areas where space is limited, such as in urban or rural areas with limited access to electricity or water. They are also ideal for temporary operations, such as for road construction or disaster relief.

Movable automatic block machines come in different sizes and models, with varying production capacities and brick or block sizes. They are equipped with a control panel, sensors, and other electronic components that allow them to operate automatically, with minimal human intervention.

Overall, movable automatic block machines provide a flexible and efficient solution for producing concrete blocks on a smaller scale, with the added benefit of being able to transport the machine to different locations as needed.

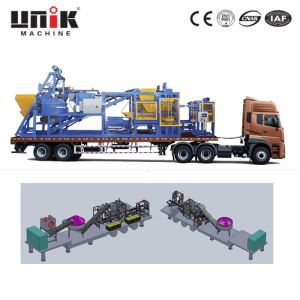

According to the individual needs of customers, we have developed a movable automatic block making equipment tailored for customers; this equipment is designed for the development of a wheeled fast moving for users with short construction period, long construction route and frequent transshipment.

A simple concrete block production line requires approximately 12-15 manual labors and 2 supervisors (to operate the machine needs 5-6 employees)

One operator for batching station and mixer

One operator for block machine

2 operators for feeding pallets to the machine

1-2 operator for forklift

Movable Automatic Block Machine Technical Specification:

The mobile construction waste brick production line can meet the needs of large-scale construction waste recycling and utilization, turning construction waste into waste, which reduces transportation costs, reduces the exploitation of natural sand and reduces the environmental pollution. Secondary pollution protects natural resources and the living environment of human beings. The disposal of construction waste resources, reduction, and harmlessness has been realized.

Main features:

1. The model is compact in structure, small in floor space, quick and easy to install; according to the engineering mechanical wheel design, it can be directly connected to the truck, and the ordinary road moving speed can reach 40km/h.

2. It does not need to consider the traditional brick building and plant construction; it greatly shortens the planning time in the early stage, and can be directly transferred according to the urban solid waste site, placed on the construction site, and has high economic benefits.

3. On-site brick making, reducing material transfer costs; and secondary pollution of solid waste transportation; with canopy, no need to worry about wind and rain;

4. This modular design integrates: batching, mixing, metering, conveying, forming and automation control systems, assembly and disassembly is simple, fast and convenient; fully automated intelligent control.

5. It is specially designed for the treatment and reuse of construction waste. It has strong adaptability to the site and can be seamlessly connected with mobile crushing stations and mobile mixing plants. It can comprehensively utilize industrial waste residue, mine waste residue and construction solid waste.

We have various size of block making machines to meet different requirement, if you need information in detail, please feel free to contact us at sales@unikmachinery.com.

Movable Automatic Block Machine Service,delivery and shipping:

Movable Automatic Block Machine Before sales:

1. Provide our customers excellent technical advisory and deploy the most useful equipment along with production line according to the requirement of theirs

2. Provide technical data, including equipment listings, layout and installation instructions as well as a list of electricity demand for reference.

3. Assist in planning construction site, building plant and designing the best installation flow with our senior engineer

4. Design and manufacture product according to customers’ need

Movable Automatic Block Machine During sales:

1. Manufacture product in strict accordance with the relevant technical standards and constructional safety and healthy regulations

2. Advanced antirust preventives handling and then surface painting service

3. Products rigorous testing before shipment

4. Shipment arrangement by the contract in time

Movable Automatic Block Machine After sales

1. Dispatch the experienced engineers to assist in installation, machine test run and adjustment according to site conditions

2. Personnel training in operation and maintenance of the equipment on site guidance of waste recycling and sorting

3. Take initiative to eliminate the troubles rapidly at site

4. Prepare fully supply of wear parts and consumables for replacement

5. Maintenance for big items, our company guarantees to reach site after one call, ensure customer’s normal production

6. Optimizing machine and plant performance

7. Technical exchanging

The block making machine is packed in PVC film to Waterproof and dustproof, the spare parts will be packed in wooden case,This way of packing can ensure the machines will not shift inside the case and guarantee its security in transportation.

We will deliver concrete hollow block making machine within 20-25 days after receiving deposit
