A paver block machine is a device used in the construction industry to produce interlocking concrete or clay paver blocks. The machine is designed to streamline the block-making process, reducing labor costs, and increasing production efficiency.
A paver block machine is a device used in the construction industry to produce interlocking concrete or clay paver blocks. The machine is designed to streamline the block-making process, reducing labor costs, and increasing production efficiency.
The paver block machine works by mixing raw materials, including cement, sand, and water, in a mixing system. The mixture is then transported to the molds using a conveyor belt or other suitable method, where hydraulic pressure is applied to compact the mass and create the desired shape of the interlocking block. Once the paver block is formed, it can be removed from the mold and stacked for curing.
The paver block machine typically consists of several components including a mixer, a conveyor belt system, a hydraulic press, and a set of paver block molds. The molds can be customized to produce different shapes and sizes of paver blocks, depending on construction requirements.
Paver blocks produced by this machine are known for their strength and durability, making them suitable for the construction of driveways, walkways, patios, and other external features. They are also interlocking, which makes them stable and secure, with no need for additional adhesive.
The advantages of using a paver block machine include increased production efficiency, consistent product quality, and reduced labor costs. The machine is fully automated, making it easy to operate and maintain. It can also produce paver blocks in a wide range of colors and designs.
Paver block machines are available in different models and sizes to cater to various construction requirements. They are highly versatile and ideal for individuals and businesses in the construction industry.
The production process of cement bricks: semi-dry press forming natural curing method uses a mixture of cement (or cement, lime) and sand, after being compressed, it is formed by natural curing for 28 days, and the product quality can reach ordinary clay bricks standard.

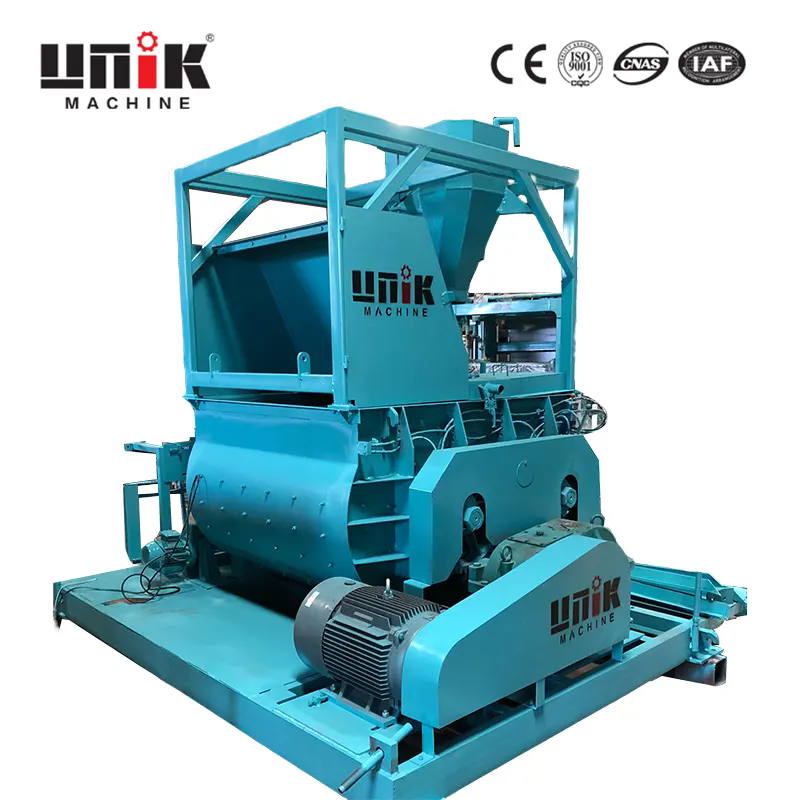

Paver block machine is able to apply in fully automatic block production line, is made up of batch station, concrete mixer, belt conveyor,automatic stacker and forklift. the fresh brick will be came out of brick machine and transported to stacker by block conveyor,when the splints come to some height, worker should carry the bricks to the curing area.
Paver Block Machine Main Features:
The key hydraulic components such as solenoid valves and hydraulic oil pumps are mainly imported well-known brands such as Yuken,CML
The vibration system adopts German frequency conversion technology, the main machine frequency conversion control, and the vibration exciter assembly adopts oil immersion type, which improves the brick compactness and electricity saved.
The machine frame consists of a welded construction using heavy-duty steel structure, split design to extend the life of the machine
Helical Bevel Gear Reducer:Good meshing performance,Heavy coincidence and Compact structure
Paver Block Machine Specification&Capacity
Dimension
3350×2090×3000mm
Pallet Size
1100×680×25~40mm
Vibration Frequency
3800-4500 r/min
Hydraulic Pressure
25 mpa
Vibration Force
68 KN
Cycle time
15-20s
Power
43.88kW
Weight
10500KG
Capacity
Product size(mm)
Pcs./Pallet
Pcs./Hour
390*190*190
8
1440
390*140*190
8
1440
200*100*60
27
3888
225*112.5*60
20
2880
Paver Block Machine Curing requirements: Cement bricks should adopt natural curing: freshly formed bricks should not be exposed to direct sunlight to cause premature water loss. In order to make full use of solar energy, it can be covered with plastic film. In the frost season, when the temperature is lower than 5℃, it is not suitable for outdoor maintenance. Cement brick production line products are dehydrated and shrunk during the initial stage of stacking, so they should not be transported to construction sites too early for use. After spraying and curing, it generally needs to be stacked in the open for 15h, and the longer the curing time, the better. During the stacking process, the strength of cement bricks will continue to increase.
Our service:
Where the use of our products, the warranty period of one year, our factory can send technicians to the user free installation and commissioning, transfer technology, life-long accessories, to ensure customer satisfaction!
Before the customer purchases, the company will send engineers and technicians to the user site to plan the site and design the best process plan for the user. After the purchase, the company will assign free after-sales service personnel to the site to guide the customer to install and debug, and assist the customer in planning and management. Equipment, until the user is satisfied.
Before sale:
(1) Selection of equipment model.
(2) Design and manufacture products according to the special requirements of customers.
(3) Train technicians for customers.
(4) The company sends engineering and technical personnel to the user site to plan the site and design the best process and plan for the user.
Sale:
(1) Acceptance of products.
(2) Assist customers in formulating construction plans.
After sale:
(1) Freely assign special after-sales service personnel to arrive at the scene to guide customers to install and debug.
(2) Equipment installation and commissioning.
(3) On-site training operators.
(4) After the installation of the complete set of equipment, 1-2 full-time technicians will be provided to assist the customer on-site production free of charge until the user is satisfied.
Our company has passed the "ISO9001 Quality Management System" and "EU CE Certification",As Unik Machinery, we have focused all our products on providing unconditional customer satisfaction. We believe that continuous improvement and training of all employees is essential for continuous improvement of their products and systems. Our company aims to improve the product range in the direction of customer suggestions and demands by meeting the needs of our valued customers without sacrificing quality and on time del,very and production, with the service of the Unik Machinery, which is always aiming to increase the product quality and quality in the company.
