Solid Block Machinery is a type of mechanical equipment used to produce solid bricks and hollow bricks. These machines are usually made of high-strength steel and are equipped with electric motors and hydraulics. In the process of producing bricks, the mixed materials are put into a container and then subjected to a series of processes such as vibration, compression and extrusion to form a strong and durable brick. These bricks are often used in walls, floors, or other structurally required parts of construction projects. Solid Block Machinery is one of the indispensable equipment for modern construction engineering due to its high efficiency, accuracy, and labor cost savings.
Solid Block Machinery is a type of mechanical equipment used to produce solid bricks and hollow bricks. These machines are usually made of high-strength steel and are equipped with electric motors and hydraulics. In the process of producing bricks, the mixed materials are put into a container and then subjected to a series of processes such as vibration, compression and extrusion to form a strong and durable brick. These bricks are often used in walls, floors, or other structurally required parts of construction projects. Solid Block Machinery is one of the indispensable equipment for modern construction engineering due to its high efficiency, accuracy, and labor cost savings.

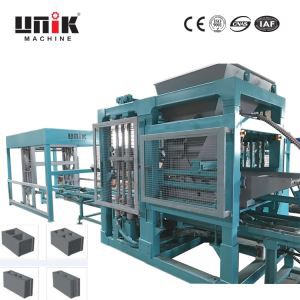

Our Solid Block Machinery has a heavy duty,compact structure with advanced electronic,pneumatic and mechanical modules.It is capable of producing interlocking paving stones,turf stones,ornamental stones,edge stones,curb stones,full stones,hollow blocks,slabs and similar concrete products.This machine fulfils all necessary requirements to produce concrete products of the highest quality.
Main Features:
The well-know imported brand integrated and independent hydraulic valves
The vibration system of the machine is equipped with our standard frequency controlled vibration system which is creating a uniform vertical vibration.
The machine frame consists of a welded construction using sectional steel to ensure optimum rigidity and accessibility.
Helical Bevel Gear Reducer:Good meshing performance,Heavy coincidence and Compact structure
Solid Block Machinery Specification&Capacity
Dimension
3350×2090×3000mm
Pallet Size
1100×680×25~40mm
Vibration Frequency
3800-4500 r/min
Hydraulic Pressure
25 mpa
Vibration Force
68 KN
Cycle time
15-20s
Power
43.88kW
Weight
10500KG
Capacity
Product size(mm)
Pcs./Pallet
Pcs./Hour
390*190*190
8
1440
390*140*190
8
1440
200*100*60
27
3888
225*112.5*60
20
2880
The vertical orientation vibrating machine is used to pressurize the vibration, and the upper mode is fixed.
With the imported frequency converter, the cement brick body is relatively stable and smooth surface.
The system is reasonable in layout and compact in structure, so that the molded product has uniform strength, complete surface and good compactness.
The concrete brick machine is rich in raw materials and has a wide range of sources. Its production process is simple, the investment in construction is less effective, and it can be mass-produced. It is suitable for both rural and urban areas. The use of concrete brick machine not only has advanced design, wide applicability, and simple construction operation; it can also shorten the construction period and reduce the construction cost. This can be said that the investment is small and the effect is quick.
WHY Unik Machinery?
With its technical team and customer focused vision, Unik Machinery has been able to apply all kinds of experiential and technological knowledge to the field, which has acquired over 20 years in the industry. Unik Machinery is preferred because it can find solutions to the needs of the sector and transfer these solutions to the field of operation.
Since its establishment, UNIK has been manufacturing with advanced modern management system and independent innovation. It has brought together a group of scientific and technological elites. The company implements computer informationization and production technology for computer management. The product development process design adopts CAD and CAPP technology. Strong mechanical processing, forging, rivet welding, carburizing heat treatment and other equipment, and the introduction of advanced technology, technology and testing bases at home and abroad, for new product development and new technology promotion.
