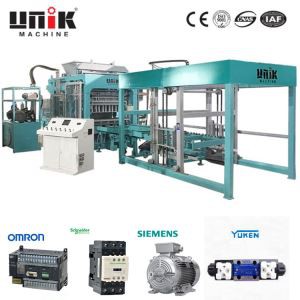

Stationary block making machine

Stationary block making machines are machines designed to produce concrete blocks in a large quantity. They are stationary, which means they are not mobile and are usually installed in a specific location or factory. These machines are highly efficient and can produce a variety of concrete blocks such as hollow blocks, solid blocks, and paving blocks.

The stationary block making machines consist of different components such as a concrete mixer, conveyor belt, concrete block machine, hydraulic unit, and pallet feeder. The concrete mixer mixes the raw materials such as cement, sand, and water, to form the concrete mixture. The conveyor belt transfers the mixture to the concrete block machine, where it is molded into different block shapes using molds.

The hydraulic unit provides the necessary pressure to compact the concrete, resulting in strong and durable blocks. Once the blocks are formed, the pallet feeder moves them to a curing area where they are left to dry and cure before they are ready for use.

Overall, stationary block making machines provide a reliable and efficient way to produce large quantities of high-quality concrete blocks.

We have various size of block making machines to meet different requirement, if you need information in detail, please feel free to contact us at sales@unikmachinery.com .

HOURLY PRODUCTION CAPACITY (PCS)
Rectangular Pavers			QT3-15	QT5-15	QT6-15	QT8-15		QT9-15		QT10-15
	100*200*60mm		2880	6000	5040	6480		8640		8640
	100*200*80mm		2880	6000	5040	6480		8640		8640
Interlocking S-Pavers
	225*112*60mm		2400	3840	3600	4800		6000		5760
	225*112*80mm		2400	3840	3600	4800		6000		5760
Rricks
	240*115*53mm		4800	8640	7200	9600		13200		13440
Hollow Block
	400*200*200mm		540	900	1080	1350		1620		1800
	400*200*150mm		720	1080	1440	1440		2160		2160
	400*200*100mm		900	1800	1800	2160		3240		3240
Behaton Pavers
	165*200*60mm		2160	2880	2800	3600		5760		4800
	165*200*80mm		2160	2880	2800	3600		5760		4800
Kerbstone
	200*450*600mm		240	480	240	480		480		480
	200*300*600mm		240	480	480	720		960		720
Grass Planting Pavers
	400*400*60mm		240	480	480	480		720		960
	600*400*60mm		240	480	480	480		720		720
Perforated Blocks
	115*240*90mm		2400	3840	3600	4800		4800		6720

Main machine: It adopts the integration of machine, electricity and liquid, automatic cycle operation, can automatically detect faults and display.

Hydraulic unit: Concealed oil roads, occupying less space, more powerful power, adopting imported products as main components, and having greater pressure, and completely solve the problem of oil leakage in long-term operation.

Control cabinet: Using Germany's Siemens Industrial PLC control system, English display, touch-type operation, Stepless frequency modulation variable speed.

Feeding material: feeding system using the crank and connecting rod configuration with the forced unloading device, and completely solve the problem to produce irregular shape block, the second feeding system is for face mix to produce a variety of color products.

Mould: Using more durable special steel, through high-frequency carburizing treatment, fine grinding, the mold box buckle plate is said to be different quality without welding, also customer can replace mould very fast due to a cartridge design

Vibration force: The vibration force generated by the resonance of the table mode is large, and the strength of the produced block is up to 25 MPa.

Anti-vibration: unique capsule damping technology, more effective to extend the life of the machine and the mold box under large excitation force.

Molding: The product has high strength. The unique mold design makes the finished product appearance size more accurate.

Raw materials: Our technology can be widely used in power plant steel wet ash, dry ash, mixed ash, slag, self-ignited gangue, stone powder, stone nitrate (pebbles), sand, ceramsite, tailings sand, volcanic ash (Slag), steel slag, carbide slag, water quenched slag, air quenched slag, heavy slag, smelting slag, water slag, dry slag, sulfuric acid slag, phosphorus slag, alkali slag, aluminum red mud, calcium carbide mud, electrolytic copper slag, industrial Residues, waste ceramic slag, waste bricks, shale, construction waste and other raw materials to produce unburned bricks, hollow bricks, porous cement bricks, colored floor tiles, kerbs, etc.
