Cement concrete hollow brick making machine is a machine used to manufacture cement hollow bricks. It is capable of producing concrete blocks of various shapes and sizes. The machine is typically operated by a single operator and can produce up to 1000-1500 bricks per hour. The machine is used in the construction industry to produce hollow bricks which are widely used in the construction of walls, foundations, and other structures. It is an automated machine and can be easily operated with minimal manual intervention. The machine is designed to provide high efficiency and low maintenance cost. The use of these machines has significantly increased productivity and efficiency in the construction industry.
A cCement Concrete Hollow Brick Making Machine is a mechanical equipment used to produce concrete hollow bricks. This machine usually has the following features:
Compact structure: The concrete hollow brick machine is compactly designed to enable efficient production.High pressure and strong rigidity: These machines are usually made of high-strength steel to ensure sufficient pressure and rigidity during the production process.High output: These machines are designed for high output and can meet the needs of large-scale production.
Hollow brick machine mainly adopts vibration hydraulic forming method for production. During the production process, after the equipment materials are in place, press the start button, the feed hopper will send out the concrete material, and the back plate will vibrate after it is in place, for vibration feeding, the time is adjustable, and the feed hopper will make a linear reciprocating motion, breaking the arch at the same time.
Fully sealed dustproof and circulating lubrication: In order to increase the service life of the equipment and reduce maintenance costs, the concrete hollow brick machine is usually equipped with a fully sealed dustproof system and a circulating lubrication system.
Adopt the most advanced industrial Internet technology to realize remote troubleshooting and maintenance. PLC and touch screen use PROFINET Internet to facilitate system diagnosis and WEB expansion. Realize continuous problem diagnosis and alarm system to facilitate machine maintenance and troubleshooting. PLC operation data is permanently saved.
According to the actual needs of customers, after the finished product, it can be equipped with a automatic palletizer, or it can also expand the production line with a higher degree of automation.The space occupies a small space, the layout is compact, and the use of finished space utilization to be a fully automatic concrete block making machine
In addition, the molding cycle of the concrete hollow brick machine is short, usually between a few seconds and tens of seconds, which helps to improve production efficiency. These machines can also be customized according to different needs to adapt to production lines of different sizes and types,In short, the concrete hollow brick machine is an efficient, versatile and easy-to-operate equipment, suitable for building materials production companies of all sizes.
| Dimension | 5900×2040×2900mm |
| Pallet Size |
1100×950×28-35mm |
| Vibration Frequency | 3800-4500 r/min |
| Hydraulic Pressure | 25 mpa |
| Vibration Force | 90 KN |
| Cycle time | 15-25s |
| Power | 63.45kW |
| Weight | 12800kg |
| Product | Product size | pcs/pallet | pcs/hour | Image |

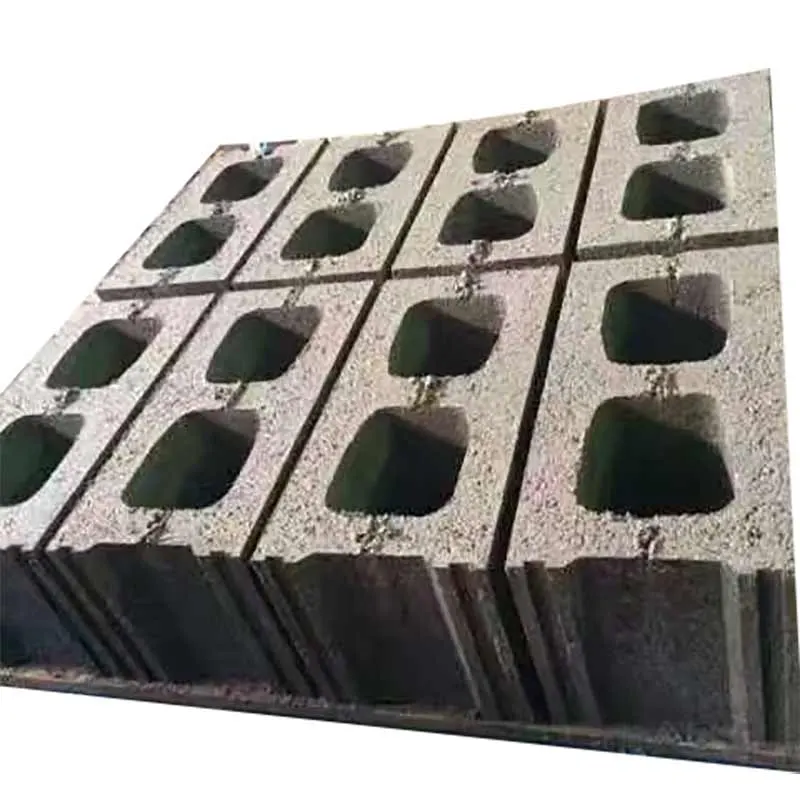

| Hollow block | 400x200x200mm | 10 PCS | 1800PCS |
|
| Hollow block | 400x150x200mm | 12 PCS | 2160 PCS |
|
| Rectangular paver | 200x100x60/80mm | 36PCS | 8640 PCS |
|
| Interlocking paver | 225x112x60/80mm | 24PCS | 5760PCS |
|
| Kerbstone | 200x300x600mm | 3PCS | 720PCS |
|
Manufacturing
Delivery
workshop
Process
Our service:
Before sales:
1. Provide our customers excellent technical advisory and deploy the most useful equipment along with production line according to the requirement of theirs
2. Provide technical data, including equipment listings, layout and installation instructions as well as a list of electricity demand for reference.
3. Assist in planning construction site, building plant and designing the best installation flow with our senior engineer
4. Design and manufacture product according to customers'need
During sales:
1. Manufacture product in strict accordance with the relevant technical standards and constructional safety and healthy regulations
2. Advanced antirust preventives handling and then surface painting service
3. Products rigorous testing before shipment
4. Shipment arrangement by the contract in time
After sales
1. Dispatch the experienced engineers to assist in installation, machine test run and adjustment according to site conditions
2. Personnel training in operation and maintenance of the equipment on site guidance of waste recycling and sorting
3. Take initiative to eliminate the troubles rapidly at site
4. Prepare fully supply of wear parts and consumables for replacement
5. Maintenance for big items, our company guarantees to reach site after one call, ensure customer's normal production
6. Optimizing machine and plant performance
7. Technical exchanging
