Paver Hollow Block Making Machine is a machine used for manufacturing high-quality concrete blocks, pavers and hollow blocks. It has the capacity to produce different sizes, shapes and designs of blocks as per the requirement. This machine uses hydraulic pressure and vibration for compacting the raw materials to produce durable and high-quality blocks. Paver Hollow Block Making Machine is widely used in the construction industry for making garden and landscaping pavers, building blocks, and paving blocks. It is highly efficient and can produce a large number of blocks in a relatively short amount of time, making it a popular choice for commercial and industrial construction projects.
The Paver Hollow Block Making Machine adopt electro-hydraulic technology drive, multi-source vibration system, and hydraulic drive to produce vertical synchronous vibration under computer control, frequency auxiliary adjustable, realize low-frequency feeding, high frequency forming working principle,produce a variety of concrete blocks, including pavers, hollow blocks, and other related construction materials. Their advanced features ensure high-quality output, operational efficiency, and durability, making them an essential asset in the construction industry.
1

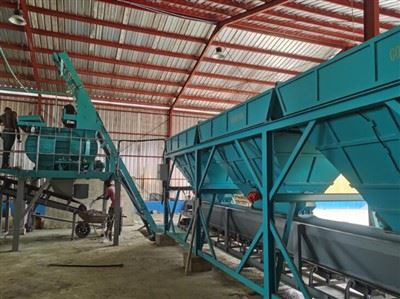

The batching machine in the automated unburned brick machine system is computer-controlled and can automatically measure according to the recipe menu of different raw materials, and then transfer the materials to the mixer.
2

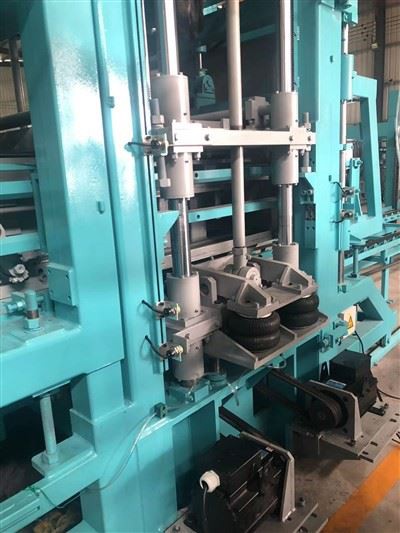

The block making machine is intelligently controlled by the PLC computer and adopts hydraulic transmission and vibration pressure molding. Computer control can randomly adjust parameters according to the needs of producing different blocks and pavers
3
The automated lowering and palletizing system further reduces manual operation and improves the efficiency of the entire production process. The products are transported to the finished product yard by forklifts, and the entire line can be controlled manually, semi-automatically, and fully automatically
4
A fully automatic production line integrating machinery, electricity, and hydraulics is realized. This high degree of automation not only increases production but also ensures the consistency of product quality and reduces human errors

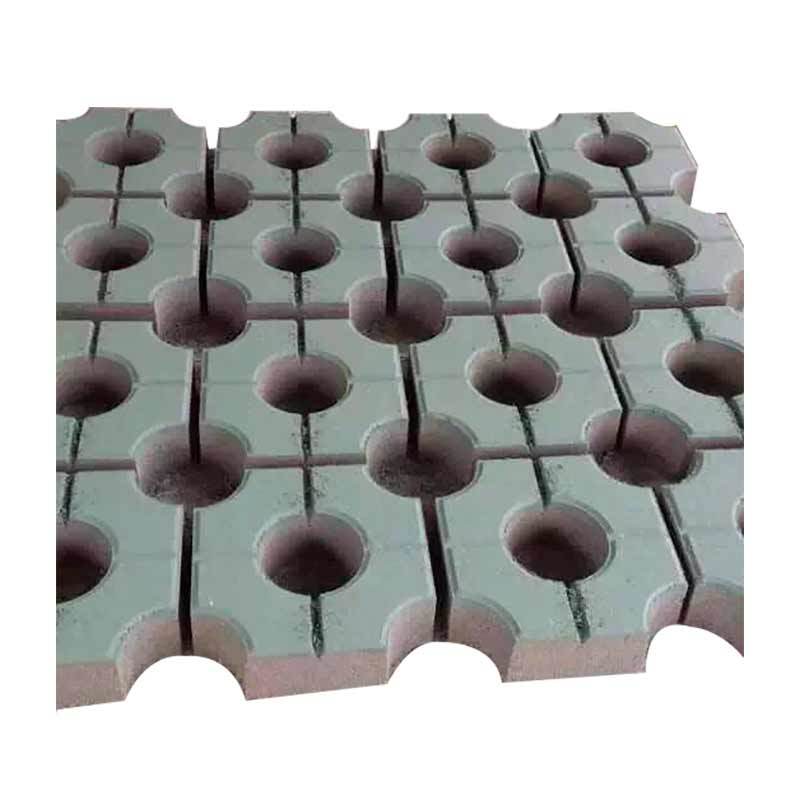

There are many factors that may influence the actual output of products during the production process, the rated output is just for your reference. Modern block-making machines have made the process of creating concrete blocks simpler, faster, and more efficient, allowing for greater consistency and higher strength levels. With the help of a block machine, you can make highly durable and reliably strong cement bricks for any construction need. The wide availability of raw materials is fully considered in the design, and various industrial wastes can be effectively used to produce various wall tiles, colored floor tiles, curbstones, flower walls, lattices, lawn blocks, and special bricks for airports and container terminals.
|
Specification of products(mm) |
Number of blocks per pallet |
Pieces/1 hour |
Pieces/8hours |
||
|
Block |
|
400×200×200 |
10 |
1,800 |
14,400 |
|
Hollow Brick |
|
240×115×90 |
25 |
6,000 |
48,000 |
|
Paving Brick |
|
225×112.5×60 |
25 |
6,000 |
48,000 |
|
Standard Brick |
|
240×115×53 |
55 |
13,200 |
105,600 |
|
Curbstone |
|
200*300*600 |
4 |
720 |
3,840 |
|
Dimension |
3100 ×1930×3700mm |
|
Weight |
11.5T |
|
Pallet size |
900×900mm |
|
Power |
49.03 kW |
|
Vibration method |
Servo motors |
|
Vibration Frequency |
3800-4500 r/min |
|
Cycle time |
15-20s |
|
Vibration Force |
75KN |
Manufacturing
Delivery
workshop
Process

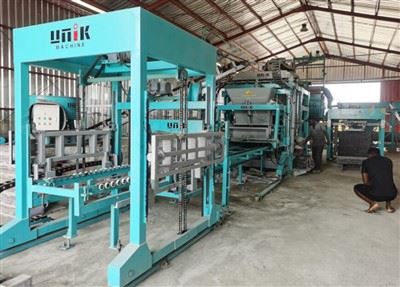

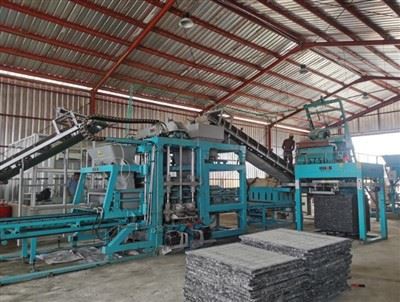

UNIK concrete block making production line, through technological upgrading, is mainly based on the servo system. The whole set of brick machine equipment production line is beautifully designed, large, and has the characteristics of energy saving and a high degree of automation in terms of performance design; the mechanical, electrical, and hydraulic integration system adopts high-quality International brand components make the automatic operation of the production line stable and smooth.
The prices of paver hollow block machines vary depending on several factors. The cost of the machine is determined by its quality, type, capacity, productivity rate, and the location of the manufacturer and supplier. Before purchasing a cement block making machine, it is vital to do proper research, compare prices, and consider all the additional expenses to make an informed decision. If you're looking for a suitable cement block-making machine and know much more about the prices, please view at our website and contact us.
