Cement Sand Hollow Block Making Machines

Cement Sand Hollow Block Making Machines

"Cement Sand Hollow Block Making Machines" refers to machines used in the manufacturing process of hollow concrete blocks. These machines typically use a mixture of cement, sand, water, and sometimes other materials to produce durable and high-quality blocks that can be used in construction projects such as buildings, walls, and paving.

The machines work by compressing the mixture of materials into a mold, which is then left to dry and harden. The resulting block is then ready for use in construction projects.

There are different types of cement sand hollow block making machines available in the market, ranging from manual machines to fully automatic ones. The choice of machine depends on the size of the blocks needed, the production capacity required, and the budget available for the purchase.



Cement Sand Hollow Block Making Machines Products Description

There are many models to choose from according to the site and production capacity. With the supporting equipment of Cement Sand Hollow Block Making Machines, highly automated production can be achieved. UNIK's latest UNT series equipment uses a third-generation invention patented servo vibrator, which has a fast molding cycle and low energy consumption. The equipment is equipped with an auxiliary automatic mold change system, which can realize the rapid replacement of molds. It is also equipped with a forced centrifugal swing material car, which has uniform and efficient material distribution and wide material adaptability. The molding parameters can be set according to different block-type requirements. The whole block machine runs efficiently, is energy-saving, and has softer movement. Some models of the pressure head and mold frame can be equipped with magnetic suspension displacement sensors to ensure the accuracy of the pressure head descending process, and the height error of the product can be achieved within 1mm; the main vibration table uses military-grade alloy materials and uses "special" welding and heat treatment processes to ensure the high strength and high toughness of the equipment structure. At the same time, one machine has multiple uses, meeting customers' needs for the production of various brick products such as special-shaped cement products, hollow bricks, paving bricks, solid bricks, curbstones, etc., and meeting the requirements of large-scale roadbed block production.



Products parameters

Dimension	3100×1680×2460mm
Pallet Size	880×680×20-40mm
Vibration Frequency	3800-4500 r/min
Hydraulic Pressure	25 mpa
Vibration Force	68 KN
Cycle time	15-20s
Power	41.53kW
Weight	7400kg

Main features

1. The operating system is controlled by a programmable controller PLC and a human-machine interface touch screen, equipped with a data input device, safety logic control, and a fault diagnosis system.
2. It operates in semi-automatic and fully automatic modes. The parameters of each actuator can be set at will. It can ensure the quality and efficiency of the product.
3. It is made of high-strength steel using special welding technology. It can ensure that the machine body has good rigidity, heavyweight, and does not resonate with the excitation system. It can extend the service life of the machine.
4. The unloading and arch-breaking device allow the material to be quickly and evenly fed into the mold box; the double-end synthetic output vibration technology and reasonable vibrator arrangement make the excitation force evenly distributed in the vibration table.





Product	Product size	pcs/pallet	pcs/hour	Image
Hollow block	400x200x200mm	6 PCS	1920PCS
Hollow block	400x150x200mm	8 PCS	1440 PCS
Rectangular paver	200x100x60/80mm	28PCS	5040 PCS
Interlocking paver	225x112x60/80mm	20PCS	3600PCS
Kerbstone	200x300x600mm	2PCS	480PCS

The degree of automation of the hollow brick machine directly affects its output and efficiency. Highly automated equipment can reduce manual operations, improve the consistency and efficiency of the production process, and thus significantly increase output.

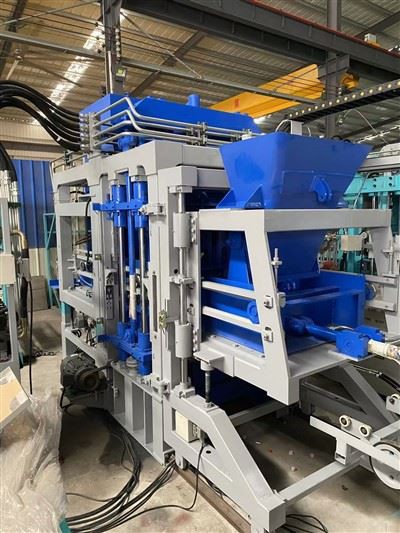

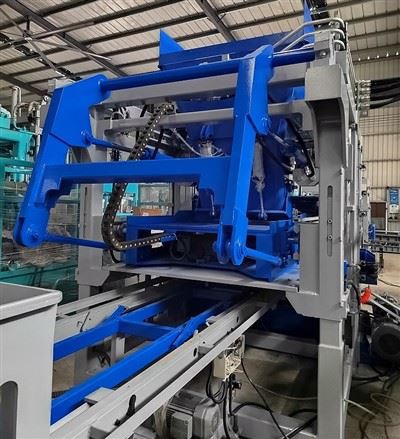

Product Picture

Our factory

Manufacturing

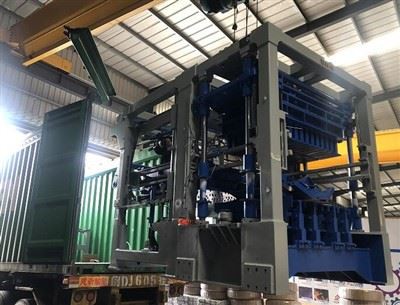

Delivery

workshop

Process

Pre-sales service:
1. Accept customer consultation, determine the scale of operation according to customer needs, and provide factory construction plans;
2. Provide customers with project design and process design, formulate a machine and equipment purchase plan suitable for you, and provide customers with relevant technical documents in a timely manner;
3. Design and manufacture products according to your special needs, and train technical operators for preliminary design and construction design
Sales service:
1. The company sends technicians to the site to guide the equipment installation, commissioning, and operator training
2. 24-hour telephone service, including holidays.
After-sales service commitment:
1. Telephone support: refers to when customers encounter difficult problems or abnormal conditions during the use of equipment, they seek technical support and help from the company by phone or fax. After confirming the customer's service request, the company will arrange technicians to help the demander locate the fault by phone within the specified time (ie response time), propose solutions, and finally guide the customer to eliminate the equipment failure.
2. On-site support and fault recovery commitment: On-site support refers to when customers encounter difficult problems or abnormal conditions during the use of equipment, they seek technical support and help from the company by phone or fax.
3. After confirming the customer's service request, if the fault cannot be diagnosed and solved by phone, the company will immediately dispatch technicians to the site to handle and finally solve it.
The company's products provide "three guarantees"
1. One-year warranty and lifelong maintenance; 24-hour technical consultation and technical diagnosis for customers;
2. Maintenance personnel will arrive quickly after receiving the fault notification to troubleshoot;
3. Assist users in upgrading systems, equipment, and molds.
