Concrete Cover Block Making Machine

concrete cover block making machine

Concrete cover block making machines are industrial machines that are used to produce concrete cover blocks - which are blocks used to cover reinforcement bars in concrete structures. These blocks act as a barrier between the reinforcement and the environment, preventing any damage to the concrete structures. The machines are typically made from heavy duty steel and are designed to produce several cover block sizes and shapes. The machines work by pouring concrete into molds and then vibrating them to remove any air pockets. The molds are then removed and the blocks are allowed to cure before they are ready for use. These machines are commonly used in the construction industry to produce cover blocks for reinforcement bars used in buildings, bridges, tunnels, and other concrete structures.

The Concrete Cover Block Making Machine is a device used in the construction industry for producing cover blocks that are used to cover the reinforcement in concrete structures. These cover blocks help to protect the reinforcement from corrosion, damage, and also provide a level surface for the finishing process.

The machine is designed to produce cover blocks of different sizes and shapes, including square, rectangular, and circular blocks. It is fully automated, which means it does not require any manual intervention during the production process. The machine is easy to operate, and it can produce cover blocks in large quantities within a short period.

The Concrete Cover Block Making Machine is built with high-quality materials, which makes it durable and able to withstand harsh operating conditions. Additionally, it is easy to maintain and service, which means it can provide many years of reliable service to its users.

Produce various types of blocks



Concrete Cover Block Making Machine is a multi-purposes Block Machine and is designed to meet the mass production of various kinds of concrete masonry blocks (C.M.U.) i.e. pavers, slabs, kerbs stones, breast wall blocks, retaining walls, plantable blocks, architectural blocks, split-faced blocks, interlocking stones, landscape architectural blocks and so on. The concrete blocks are becoming popular because it is structural stable, durable, sound and temperature insulation. It is weather resistance and easy to maintain. Its versatility can be designed to meet against the disasters like fire, storms, flooding and earthquake.

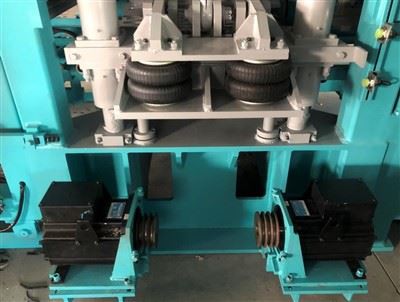

Synchronized electrical vibrators



The vibration force generated by the resonance of the table mode is large, and the strength of the produced block is up to 25 MPa.Anti-vibration: unique capsule damping technology, more effective to extend the life of the machine and the mold box under large excitation force.Molding: The product has high strength. The unique mold design makes the finished product appearance size more accurate.

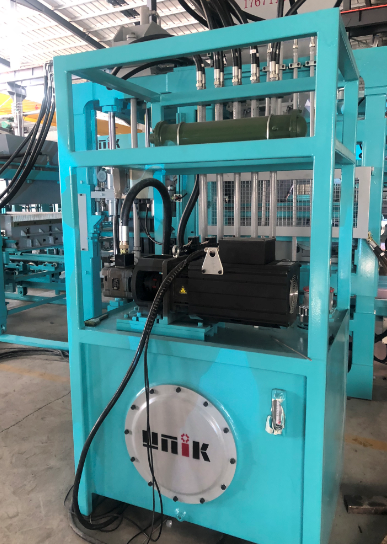

The hydraulic concrete cover block making machine fully absorbs foreign advanced technology and technology, combined with the application of the local market, to develop, design and develop, and manufacture the high reliability of the equipment. Equipment is more humane in terms of appearance design, structural design, and convenient operation, and is more suitable for foreign markets. Equipment performance has reached the level of similar foreign products and is a special equipment for processing of concrete products with excellent performance.

Product size	Picture	Capacity
400×200×200(mm)		6 pcs/pallet
		1080 pcs/hour
225×112×60/80mm		15 pcs/pallet
		3600 pcs/hour
200×100×60/80(mm)		21 pcs/pallet
		5040 pcs/hour
447×298×80/100(mm)		2 pcs/pallet
		480 pcs/hour
Pallet size		850×680㎜
Vibration type		Frequency, amplitude
Excitation frequency		0～65HZ
Power		42.15 kW

At the same time, under the premise of ensuring the stability of the equipment, through continuous improvement, the vibration force and vibration frequency of the equipment are increased, and with the unique hydraulic and auxiliary systems, the compactness and strength of the products produced by the equipment are greatly improved.
