Hollow Brick Making Machine

Hollow Brick Making Machine uses sand,industrial waste, slag, and slag can all be used as raw materials for the slope block machine. A small amount of cement is added and pressed through the road brick machine. Different types of kerbstones and colored bricks can be made by changing the mold roadside stone bricks, lawn bricks, permeable bricks, special-shaped bricks, etc., suitable for roads, roads, squares, highways laying, improve the urban ecological environment, beautify the urban environment, protect the water and soil from being lost.

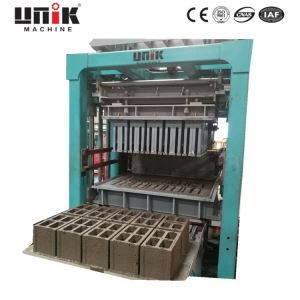

A hollow brick making machine is a type of equipment used in the construction industry for producing hollow brick blocks made of cement, sand, and water. The machine is designed to automate the block-making process, cutting down labor costs, and increasing efficiency.

The hollow brick making machine works by effectively controlling the raw material flow rate, mixing cement, sand, and water and then delivering the mixture to the mold using a conveyor belt. In the mold, the mixture is compressed using hydraulic pressure to form the desired shape of the hollow brick and, later on, immersed in water to cure.

The machine comprises several key components, including a cement mixer, a hopper, a hydraulic system, a conveyor belt, and a set of molds. The molds are customizable to create hollow bricks of varying shapes and sizes, depending on the construction requirements.

Hollow bricks produced using this machine are suitable for constructing walls, retaining walls, and other structures alike. They are known for their strength, durability, and superb insulation properties.

The advantages of using hollow brick making machines include producing high-quality hollow bricks with consistent quality, resulting in reduced labor costs and increased production efficiency. They are easy to operate, versatile, and can be customized to meet varying construction requirements.

Hollow brick making machines are available in different models and are suitable for various production capacities to cater to different construction requirements.

Hollow Brick Making Machine Capacity

HOURLY PRODUCTION CAPACITY (PCS)
Rectangular Pavers			QT3-15	QT5-15	QT6-15	QT8-15		QT9-15		QT10-15
	100*200*60mm		2880	6000	5040	6480		8640		8640
	100*200*80mm		2880	6000	5040	6480		8640		8640
Interlocking S-Pavers
	225*112*60mm		2400	3840	3600	4800		6000		5760
	225*112*80mm		2400	3840	3600	4800		6000		5760
Rricks
	240*115*53mm		4800	8640	7200	9600		13200		13440
Hollow Block
	400*200*200mm		540	900	1080	1350		1620		1800
	400*200*150mm		720	1080	1440	1440		2160		2160
	400*200*100mm		900	1800	1800	2160		3240		3240
Behaton Pavers
	165*200*60mm		2160	2880	2800	3600		5760		4800
	165*200*80mm		2160	2880	2800	3600		5760		4800
Kerbstone
	200*450*600mm		240	480	240	480		480		480
	200*300*600mm		240	480	480	720		960		720
Grass Planting Pavers
	400*400*60mm		240	480	480	480		720		960
	600*400*60mm		240	480	480	480		720		720
Perforated Blocks
	115*240*90mm		2400	3840	3600	4800		4800		6720

We have various size of Hollow Brick Making Machine to meet different requirement,all are able to apply in fully automatic block production line, is made up of batch station, concrete mixer, belt conveyor,automatic stacker and forklift. the fresh brick will be came out of brick machine and transported to stacker by block conveyor,when the splints come to some height, worker should carry the bricks to the curing area. you may find above capacity table for our different model machine,  if you need information in detail, please feel free to contact us at sales@unikmachinery.com .

Hollow Brick Making Machine Main feature:

Hollow Brick Making Machine Production material:
◇ By using sand, stones and cement, a large number of industrial waste such as fly ash, slag, steel slag, coal gangue, ceramsite and perlite can be added.

◇ Best choice for customer who requires high-quality equipment and high strength in producing products. It can produce a variety of concrete blocks and colored pavement products.

Hollow Brick Making Machine Hydraulic system:
◇ The original imported hydraulic components are equipped with independent research and development of highly integrated hydraulic valve plates, which will make the system more powerful and more stable in operation. The tubing connection adopts a unique centralized pipe arrangement, which is easier to install and maintain.

Hollow Brick Making Machine Control System:
◇ Equipped with independent research and development control system, seamlessly connecting with the hydraulic system and the mechanical part, realizing the integration of electric, mechanical and hydraulic control, so that the entire machine can operate efficiently to achieve the best working conditions.

◇ It has a unique system parameter recovery function so that system parameters will never be lost. Restore all system parameters instantly when needed.

Hollow Brick Making Machine Vibration system:
◇ Adopting the original high-performance vibrator system from West Germany, it has strong vibration, short molding cycle and high product density.
Equipped with a custom-built F-class insulation special vibration motor, the operation is more stable and more energy-efficient.

Hollow Brick Making Machine Feeding system:
◇ Using rotary feeders, the feeder is more uniform, the product is more dense, to reduce the time for producing hollow blocks.

To suit the oversea market and ensure the machine works efficiently, we have used many parts manufactured with a well-known brand imported from overseas:
1. Siemens Motor    2.YukenValve     3.PEPPERL+FUCHS Sensor & Autonics 5. Frequency inverter : SINEE 6. Limited switch: Omron 7. Hydraulic valve: Yuken 8. Hydraulic pump: Daikin 9. Motor: Siemens

FAQ:

1.Which machine is most suitable for my project?

You should make sure how much work space you have to produce and store blocks, how many blocks you want to produce in a day, what your initial budget for this machine.

2.Can I use just one machine to make every type of blocks?

Yes,Our block making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould. all you need to do is remove one type mould and replace with another, which cost at half hour for changing time.

3.what raw materials are required to produce blocks?

Cement, sand, aggregate Fine and coarse aggregates make up the bulk of a concrete mixture. The max diameter should require within 10mm.

4.Can I get installation for this machine?

We will arrange our engineer to your factory to guide installation and training,the customer will be responsible for all wages and expense of engineer.

5.How about warranty?

we promise 18 months guarantee for date of purchase, and agrees to repair or replace any defective part without charge,This warranty does not cover in cases of improper user, incorrect handling, insufficient maintenance, act of third parties, unauthorized service or modifications to the machine, damage resulting from accident, abuse, lack of reasonable care, normal wear or the addition of any other equipment not provided with product.

6.Can you sent me some spare parts freely?
Generally we used to provide wearable spare parts together when block machine while delivery.

7.How will you treat quality complaint?
First of all, all of our goods are strictly tested and inspected before delivery, which reduces the possibility of quality problem to near zero. If this is really a quality problem caused by us, we will definitely fix the problem, send you free goods for replacement or refund your loss.
