In today's fast-paced manufacturing and logistics industries, optimizing efficiency is paramount. One of the key elements in achieving this is automating palletizing operations. So, why should you choose a Robotic Palletizer for your warehouse or production line? This article delves deep into the benefits, product specifications, and answers the most frequently asked questions about robotic palletizers to help you make an informed decision.

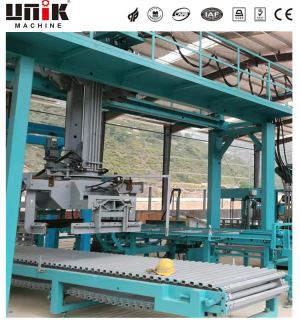

At Fujian Unik Machinery Technology Co., Ltd., we specialize in delivering high-quality, customizable robotic palletizing solutions. Below is a detailed introduction to the core parameters and features of our flagship robotic palletizer model:
Key Product Parameters
| Parameter | Specification |
|---|---|
| Model | UNK-RP500 |
| Payload Capacity | Up to 500 kg per cycle |
| Working Range | 2500 mm (radius) |
| Maximum Reach | 3000 mm |
| Repeatability Accuracy | ±0.5 mm |
| Operating Speed | 8-12 cycles per minute |
| Power Supply | 380V, 50Hz |
| Control System | PLC & Industrial PC |
| End-Effector Type | Vacuum gripper / Mechanical clamp |
| Compatible Pallet Sizes | 800x1200 mm, 1000x1200 mm |
| Installation Environment | Indoor, temperature 0-45°C |
| Safety Features | Emergency stop, light curtain |
Features & Benefits
Flexible Handling: The robotic arm can manage various package sizes and weights thanks to adjustable end-effectors.
User-Friendly Interface: Intuitive software interface for easy programming and operation.
Modular Design: Allows integration into existing production lines with minimal disruption.
High Durability: Constructed with industrial-grade materials to ensure long service life.
Energy Efficient: Optimized motors and control systems to reduce power consumption.
What industries benefit most from using a robotic palletizer?
Robotic palletizers are highly beneficial across a range of industries including food and beverage, pharmaceuticals, automotive, electronics, and logistics. Any sector that requires repetitive stacking of heavy or bulky items can achieve increased productivity and safety by implementing robotic palletizers.
How does a robotic palletizer improve workplace safety?
Manual palletizing tasks often involve heavy lifting and repetitive motion, which can lead to workplace injuries such as strains and sprains. A robotic palletizer automates these tasks, reducing the physical burden on workers and significantly lowering the risk of injury. Additionally, integrated safety systems like light curtains and emergency stops prevent accidents during operation.
What maintenance is required for a robotic palletizer?
Regular maintenance is crucial to ensure continuous, optimal performance. This includes routine inspections of the robotic arm joints, lubrication of moving parts, software updates, and checking the condition of end-effectors. Fujian Unik Machinery Technology Co., Ltd. provides comprehensive maintenance support and training to minimize downtime.
| Feature | UNK-RP300 | UNK-RP500 | UNK-RP800 |
|---|---|---|---|
| Max Payload | 300 kg | 500 kg | 800 kg |
| Max Reach | 2000 mm | 3000 mm | 3500 mm |
| Cycle Speed | 6-10 cycles/min | 8-12 cycles/min | 10-15 cycles/min |
| Repeatability Accuracy | ±0.7 mm | ±0.5 mm | ±0.3 mm |
| End-Effector Options | Vacuum / Clamp | Vacuum / Clamp | Vacuum / Clamp |
| Suitable for Pallet Sizes | 800x1200 mm | 800x1200 mm, 1000x1200 mm | Multiple standard sizes |
| Weight | 850 kg | 1100 kg | 1400 kg |
Customization: Every production line has unique requirements. Our robotic palletizers can be customized for payload, reach, and end-effector types to suit your exact needs.
Integration Expertise: We provide seamless integration into existing manufacturing or warehousing workflows with minimal downtime.
After-Sales Service: Dedicated support team ensures installation, training, and ongoing technical assistance.
As someone who has worked closely with industrial automation for over two decades, I can confidently say that investing in a robotic palletizer transforms operational efficiency. The reduction in labor costs, combined with increased precision and throughput, provides a fast ROI. I have seen many clients significantly reduce workplace injuries and improve overall production quality by adopting robotic palletizing technology.
Choosing a Robotic Palletizer is an investment in the future of your operation's efficiency and safety. With advanced technology, precise control, and customizable options, robotic palletizers from Fujian Unik Machinery Technology Co., Ltd. are designed to meet the highest standards. Whether your priority is speed, payload capacity, or versatility, our products are tailored to boost your productivity while reducing costs and risks.
