Semi Automatic Block Making Machine

Semi Automatic Block Making Machine

The Semi Automatic Block Making Machine is a type of machine used in the construction industry for producing different types of concrete blocks. This machine is used in the production of various types of bricks, hollow blocks, solid blocks, interlocking pavers, and curbstones.

The semi-automatic block making machine has a semi-automatic operating system, which means that some of the functions are automated, while others require manual intervention. The machine is designed to produce high-quality blocks with consistent dimensional accuracy.

The machine operates using hydraulic pressure, which compresses the raw materials such as cement, sand, and water into the desired shape and size. A conveyor belt transfers the compressed block to a curing area where it is dried for a specified time before being ready for use.

Semi-automatic block making machines are popular for their ease of operation, low cost, and low maintenance requirements. They are widely used in small to medium scale construction projects in developing countries

Semi Automatic Block Making Machine Products Description

Semi Automatic Block Making Machine run on hydraulic systems to press the raw materials used in block production into molds. The machine is also equipped with a control panel that enables the operator to adjust the hydraulic pressure as needed to produce blocks of the desired size and strength.The process of block production begins by loading raw materials into the machine's hopper, which then feeds them into a hydraulic press. Depending on the design of the machine, the press can produce multiple blocks simultaneously, each of which is molded to the desired size and shape.Once molded, they are left for a period of time to cure before being loaded onto pallets and transported to the building site for use.

The benefits of semi-automatic block machine

1. Improve efficiency

Semi-automatic block machines allow construction companies to easily produce large quantities of blocks. The machine's compact size and hydraulic system mean it can produce blocks quickly and efficiently with minimal human intervention. This results in lower labor costs and faster completion times for construction projects.

2. Improve block quality

The use of hydraulic systems and the compact design of the machine ensure that the blocks produced by the semi-automatic block machine are of high quality. Hydraulic pressure enables the raw materials to be tightly compacted, resulting in strong, durable and wear-resistant blocks.

3. Versatility

Semi-automatic block machines are designed to produce different types of blocks including hollow blocks, solid blocks, interlocking blocks and paving blocks. The versatility of the machine means that construction companies can use it to produce a wide range of blocks, depending on their needs and the requirements of their construction projects.

4. Reduce labor costs

The use of semi-automatic block machines reduces the need for manual labor in the block production process. Operators can supervise the production process from the control panel, eliminating the need for workers to manually form and cure blocks. This reduces labor costs and increases productivity.

5. Environmental protection

Using a semi-automatic block machine to produce blocks is a more environmentally friendly option compared to traditional block production methods. The machine uses less water and energy during block production, reducing its environmental impact.

A servo-driven vibration

A servo-driven vibration system is a must-have for anyone who needs to provide precise and consistent vibration for a variety of applications. With its high frequency range, customizable design, and reliable performance, this system is the perfect choice for researchers, manufacturers, and test professionals alike. Experience the power of a servo-driven vibration system today and take your application to the next level!Servo-driven vibration system with independent forced ventilation of retractable vibration table for continuous operation, All vibration parameters can be precisely controlled like frequency, amplitude, speed of phase change, etc.

Siemens PLC

Siemens PLC has a hardware fault self-detection function, and can send an alarm message in time when a fault occurs. In the application software, the user can also program the fault self-diagnosis program of peripheral devices, so that the circuits and equipment in the system except Siemens PLC can also obtain fault self-diagnosis protection.

Semi Automatic Block Making Machine Products parameters

Dimension	3000×1900×3160mm
Pallet Size	1100×740×28-35mm
Vibration Frequency	3800-4500 r/min
Hydraulic Pressure	25 mpa
Vibration Force	68 KN
Cycle time	15-20s
Power	48.53kW
Weight	8200kg



Product	Product size	pcs/pallet	pcs/hour	Image
Hollow block	400x200x200mm	8 PCS	1920PCS
Hollow block	400x150x200mm	12 PCS	2160 PCS
Rectangular paver	200x100x60/80mm	36PCS	8640 PCS
Interlocking paver	225x112x60/80mm	25PCS	6000PCS
Kerbstone	200x300x600mm	4PCS	960PCS

The construction industry is a rapidly growing and evolving industry that is always looking for ways to reduce manual labor and increase productivity. To this end, a variety of tools and equipment have been developed to leverage technology for faster and more efficient construction. One such tool is the semi-automatic block machine, which has revolutionized the way construction projects are carried out. The semi-automatic block making machine is an essential tool for any construction company looking to increase the efficiency and quality of the block production process. The machine's compact size, hydraulics and versatility make it an excellent investment for construction companies looking to increase productivity and reduce labor costs. Additionally, the machine's eco-friendliness is an added bonus for companies looking to adopt more sustainable building practices.

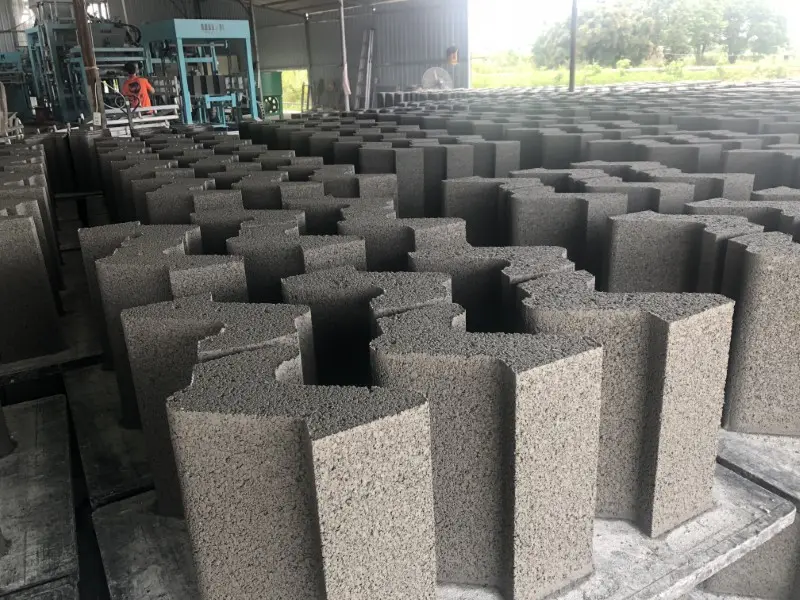

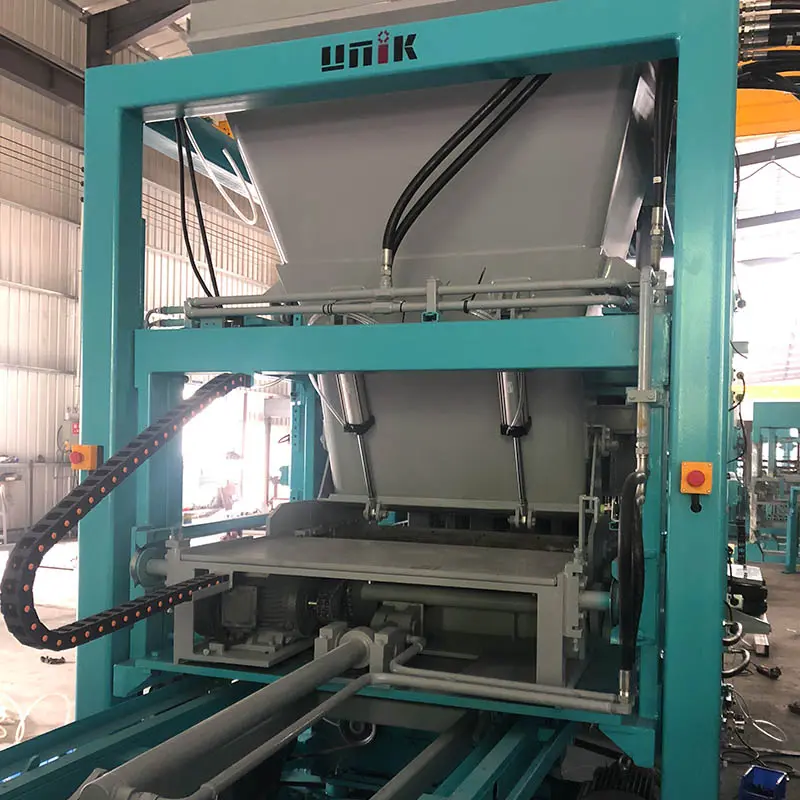

Product Picture

Our factory

Manufacturing

Delivery

workshop

Process

Semi-automatic block machine is the necessary equipment to meet the needs of block production. It is used in the manufacture of bricks and hollow blocks for construction works such as buildings, roads and bridges. This type of machinery is heavily used in the construction industry and is growing in popularity due to its efficiency and durability. However, it is crucial to choose the right machine for your needs.

Here are some tips to guide you on how to choose a semi-automatic block machine.

1. Production capacity

Production capacity is an important factor to consider when choosing a semi-automatic block machine. You need to determine what production capacity will meet the desired output. Choose a machine that can produce the desired number of blocks within a given timeframe.

2. Durability

Durability is an important factor to consider when purchasing a semi-automatic block machine. It is critical to consider the strength, endurance and capabilities of the machine. Make sure the machine can withstand harsh conditions, frequent use and heavy load demands.

3. Energy efficiency

The energy efficiency of the machine is another key factor to consider. Choose energy-efficient machines to reduce energy costs. You can choose a semi-automatic block machine with a lower energy consumption rate or a block machine that uses renewable energy.

4. Maintenance

Maintenance is an important consideration when choosing a semi-automatic block machine. It is crucial to choose a machine that is easy to maintain and can be repaired quickly in the event of any breakdown. Check availability of spare parts and after sales service.

5. Cost

The cost of a semi-automatic block machine is another important factor to consider when choosing a machine within your budget. Make sure you choose a machine that is worth your money by choosing the one with the features that best suit your needs.

6. Machine Features

When selecting a semi-automatic block making machine, machine characteristics are critical. The capacity of the machine should allow you to produce the quality you desire. Evaluate the machine's specifications, features and output to determine if it meets your specific requirements.

In conclusion, choosing the right semi-automatic brick making machine is crucial for the production of blocks and bricks. When making your selection, you should consider factors such as production capacity, durability, energy efficiency, machine functionality, maintenance and cost. Invest in a machine that will provide you with the necessary output, efficiency and ease of use to meet your production goals. By following these tips, you can choose the most suitable semi-automatic block making machine for your business.

.
